Blower Motor Resistor Block Connector End View
WARNING: This page is about a different car, the 2005 Dodge SX, 2005 Dodge SRT-4, and 2005 Dodge Neon. However, it is still accessible from the selected car via links, so may be relevant.

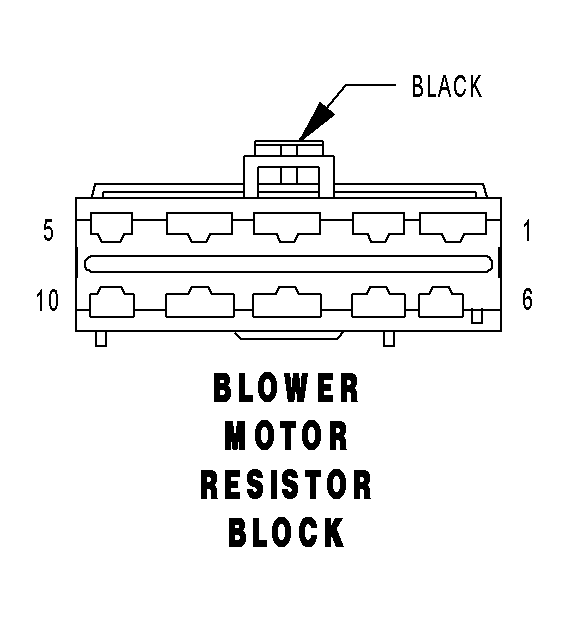

BLOWER MOTOR RESISTOR BLOCK - BLACK 10 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C5 14LG |
BLOWER MOTOR M1 DRIVER |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
C4 14TN |
BLOWER MOTOR LOW DRIVER |
| 6 |
- |
- |
| 7 |
C6 14LB |
BLOWER MOTOR M2 DRIVER |
| 8 |
- |
- |
| 9 |
C7 14BK/TN |
BLOWER MOTOR HIGH DRIVER |
| 10 |
- |
- |
