Powertrain Control Module (1.6L) - Black 90 Way

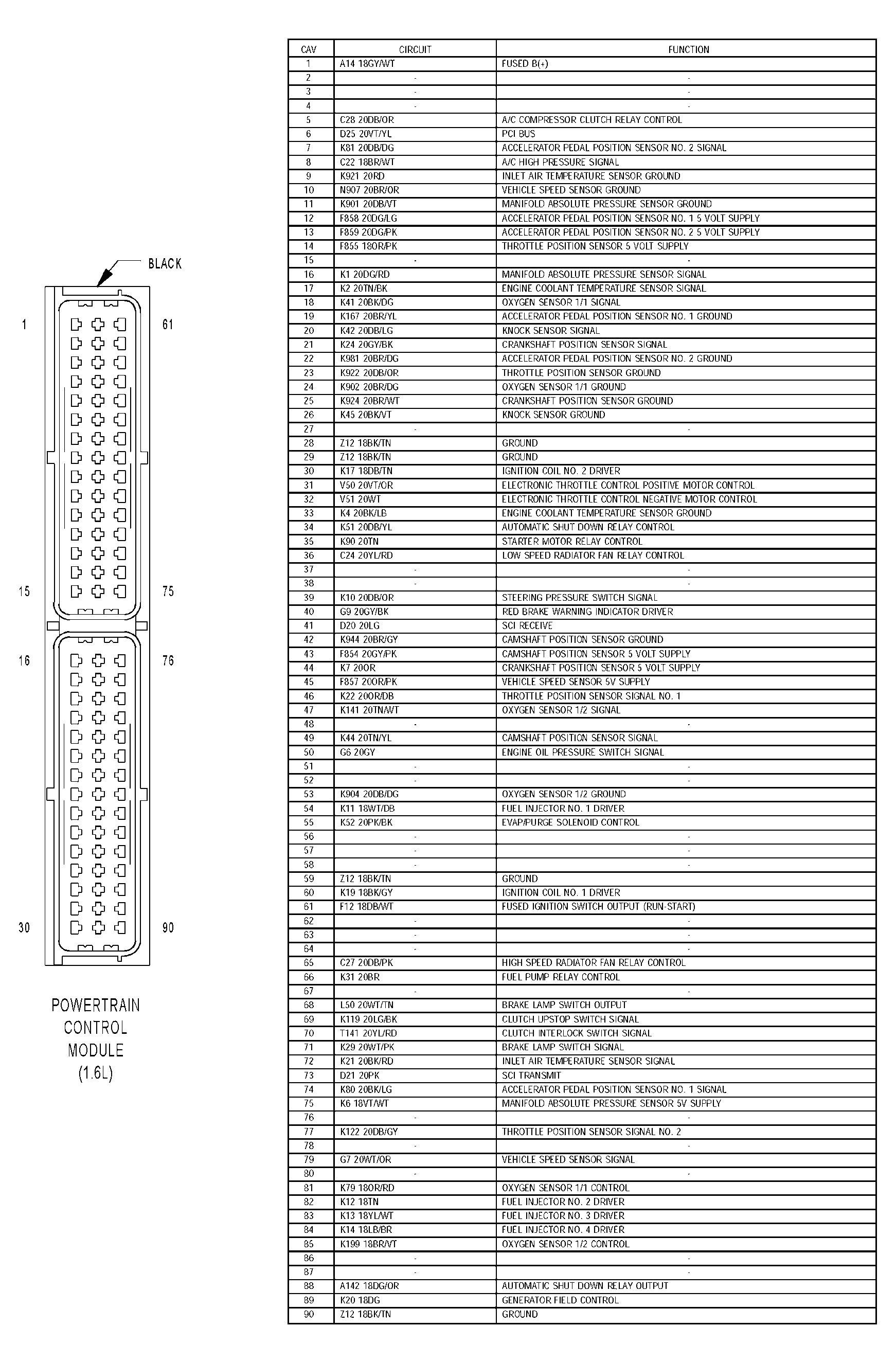

Fig 1: Identifying Powertrain Control Module (1.6L) - Connector Pinouts

G04549100

Courtesy of DAIMLERCHRYSLER CORP.
