Overhead Console Module - Black 12 Way

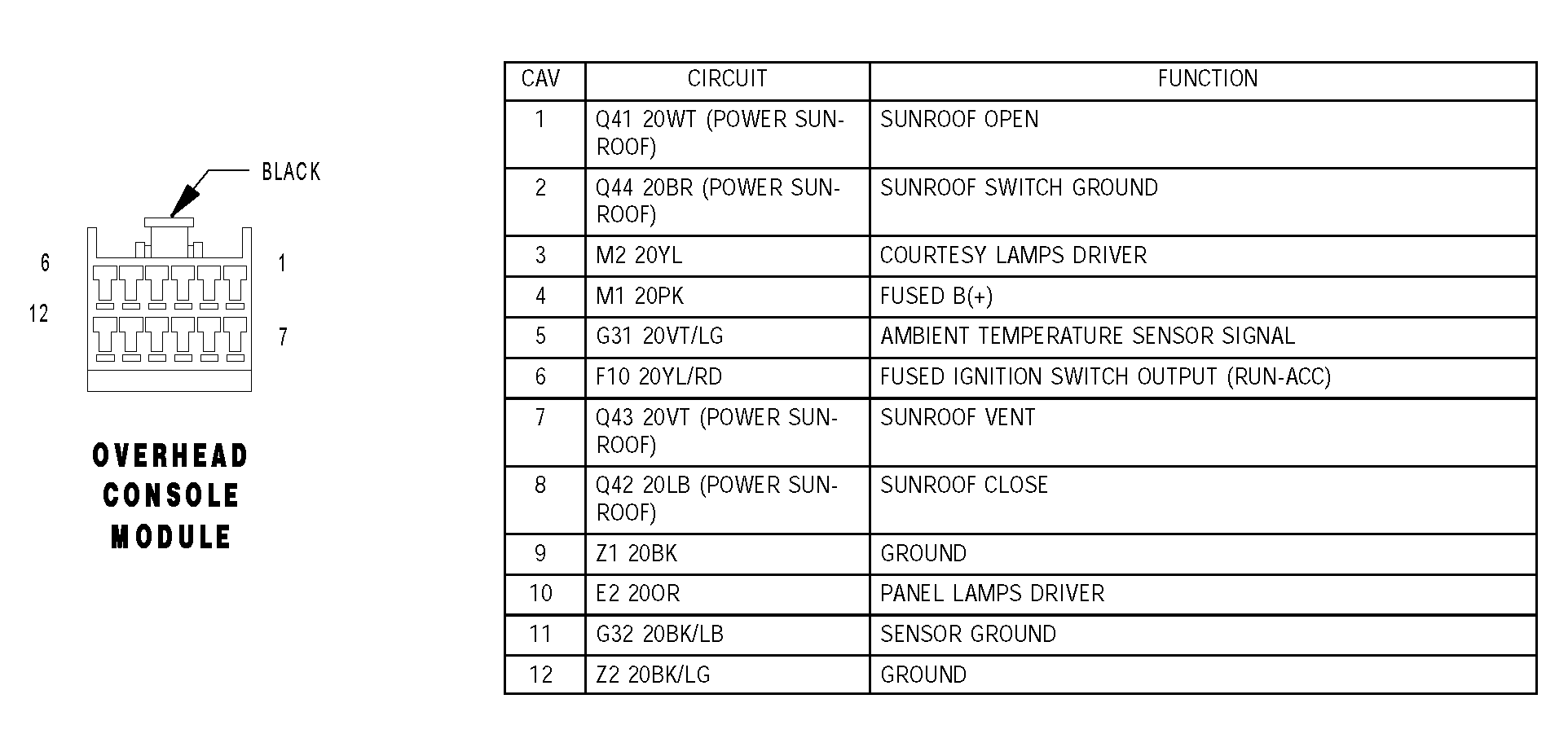

Fig 1: Identifying Overhead Console Module - Connector Pinouts

G04549087

Courtesy of DAIMLERCHRYSLER CORP.
