REMOVAL - 2.0, 2.4, and 2.4L Turbo

  1. Disconnect the negative battery cable.
  2. Lift vacuum line out from behind the upper support bracket. See Fig 1 and Fig 2.
    Fig 1: Powertrain Control Module
    GC0019897Courtesy of DAIMLERCHRYSLER CORP.
    Fig 2: VACUUM LINES
    GC0022887Courtesy of DAIMLERCHRYSLER CORP.
  3. Unlock and disconnect the 3 or 4 electrical connectors from the Powertrain Control Module (PCM). See Fig 3.
    Fig 3: Electrical Connectors
    GC0022888Courtesy of DAIMLERCHRYSLER CORP.
    1 - Electrical Connectors
  4. Remove the clutch reservoir and relocate. See Fig 4.
    Fig 4: Clutch Reservoir
    GC0022886Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the 3 mounting screws. See Fig 5 and Fig 6 from the PCM mounting bracket and remove PCM and bracket assembly. See Fig 7.

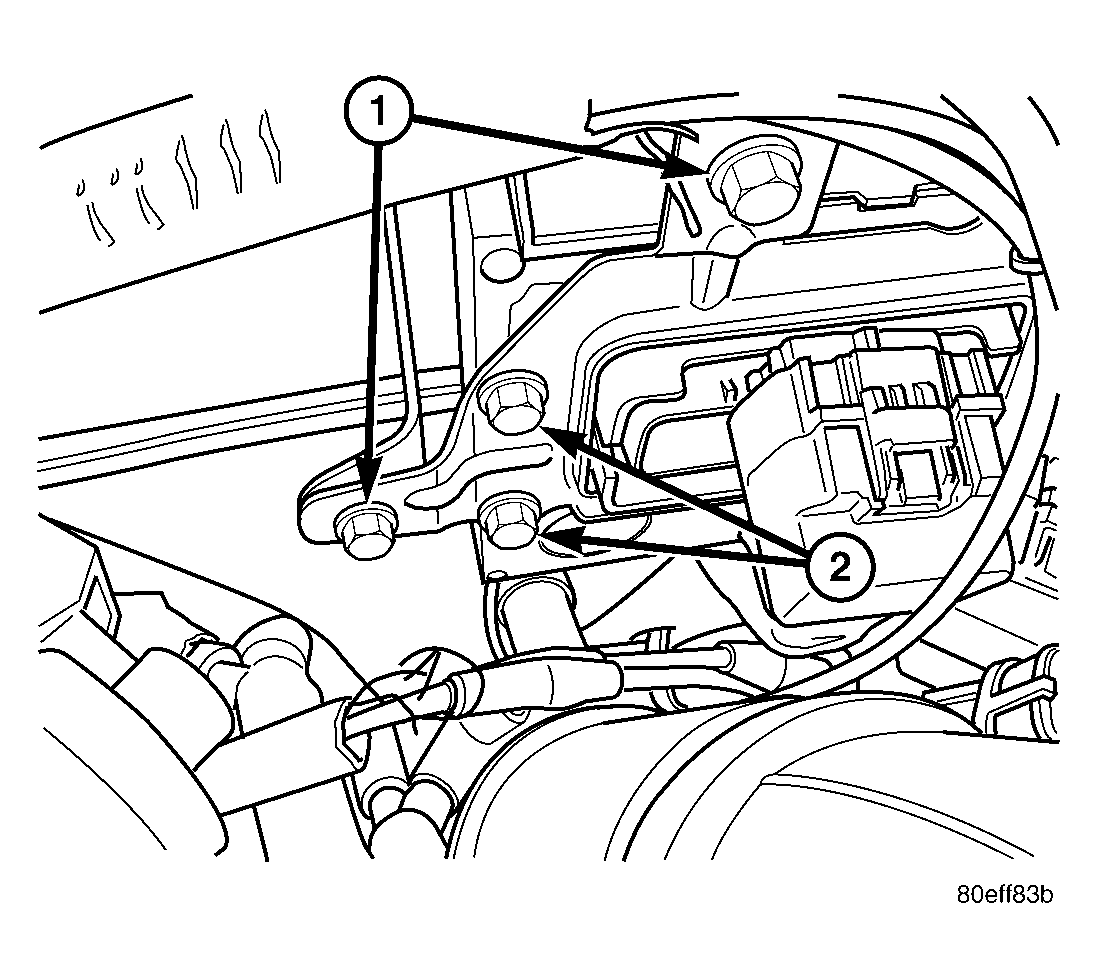

    Fig 5: PCM MOUNTING SCREWS
    GC0022884Courtesy of DAIMLERCHRYSLER CORP.
    1 - Mounting Screws
    2 - PCM Bracket Screws
    Fig 6: PCM Mounting Screw And Location Tab
    GC0022885Courtesy of DAIMLERCHRYSLER CORP.
    Fig 7: PCM Removal/Installation
    GC0022883Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove the 3 screws from the PCM bracket to PCM. See Fig 8.
Fig 8: PCM And Mounting Bracket
GC0022882Courtesy of DAIMLERCHRYSLER CORP.
