Compass/Temperature Module: Notes

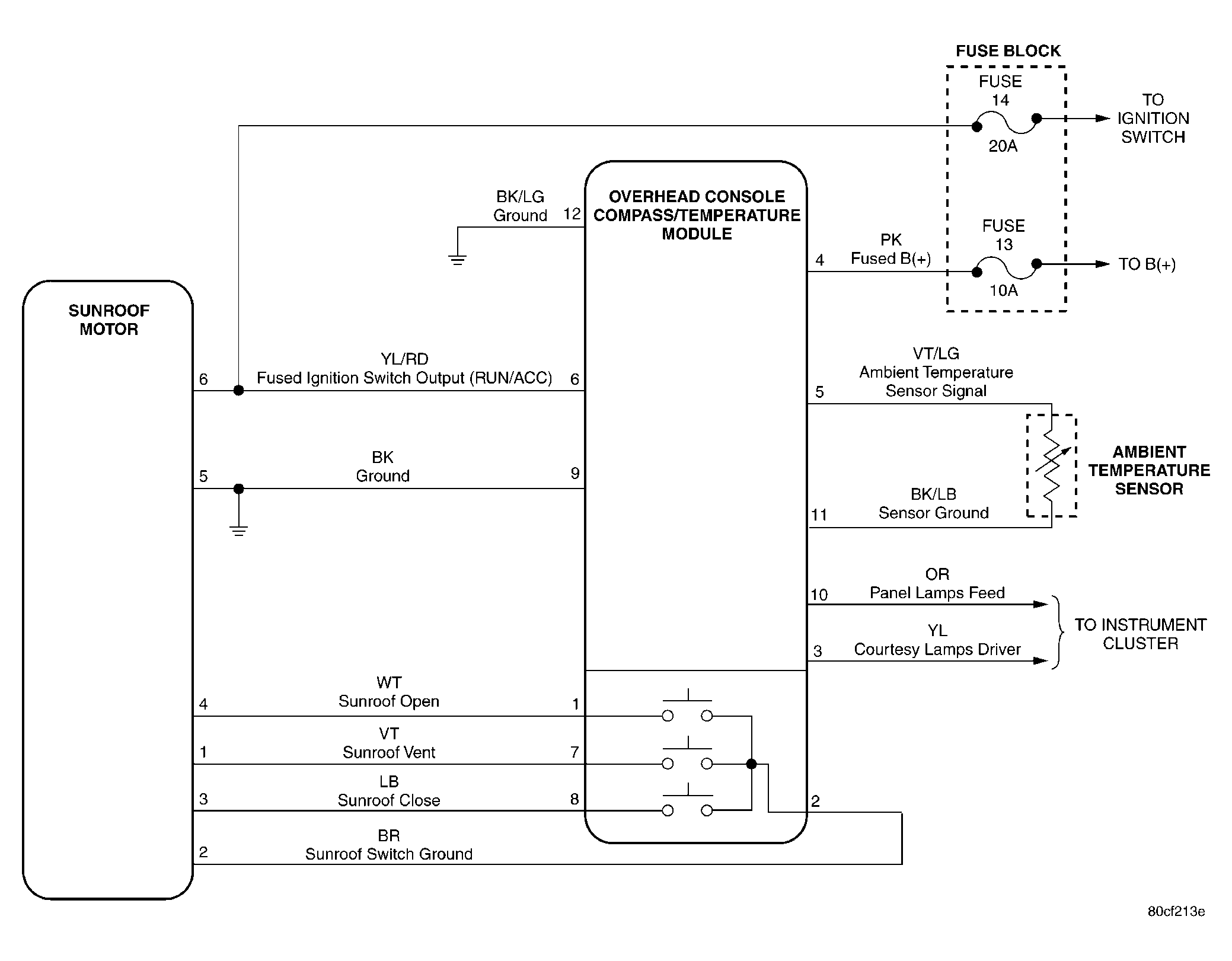

Fig 1: Compass/Temperature Module - Schematic Diagrams

G04549122

Courtesy of DAIMLERCHRYSLER CORP.
