Transmission Range Sensor, Input Speed Sensor, Output Speed Sensor & Solenoid/Switch Assembly Locations

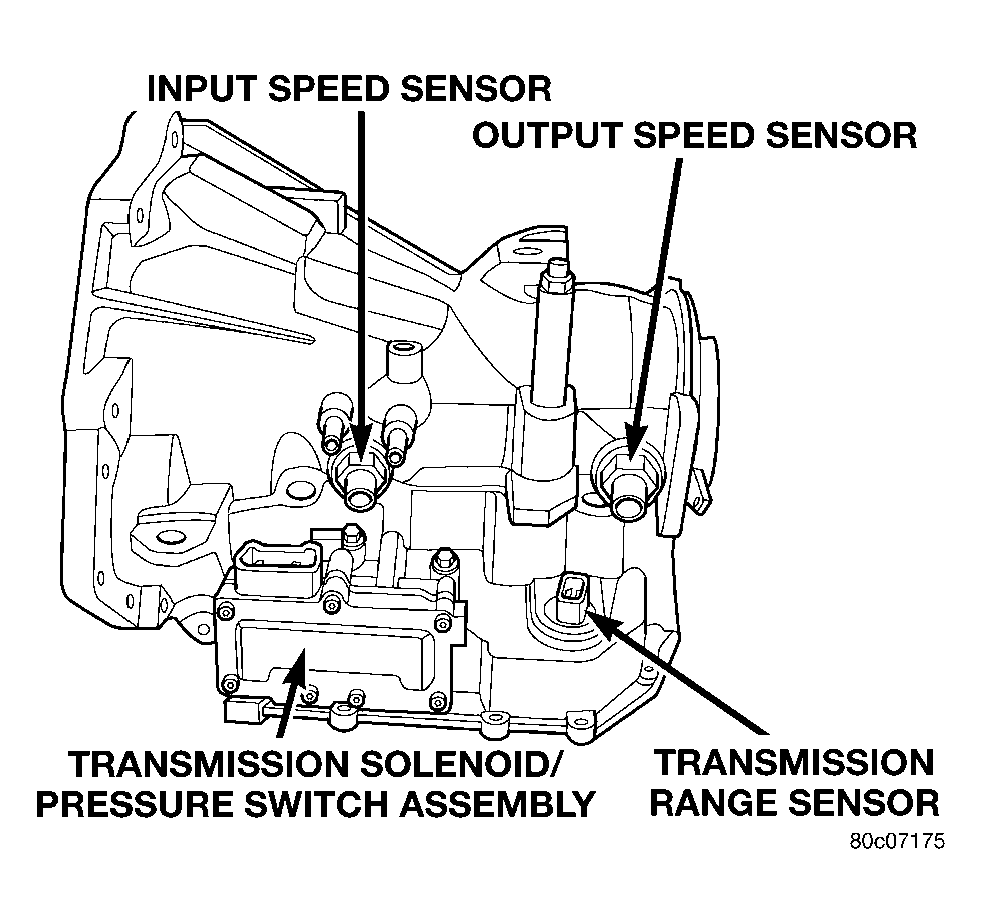

Fig 1: Transmission Component Locations
G04549169Courtesy of DAIMLERCHRYSLER CORP.
