Left Side Airbag Squib Circuit: Notes

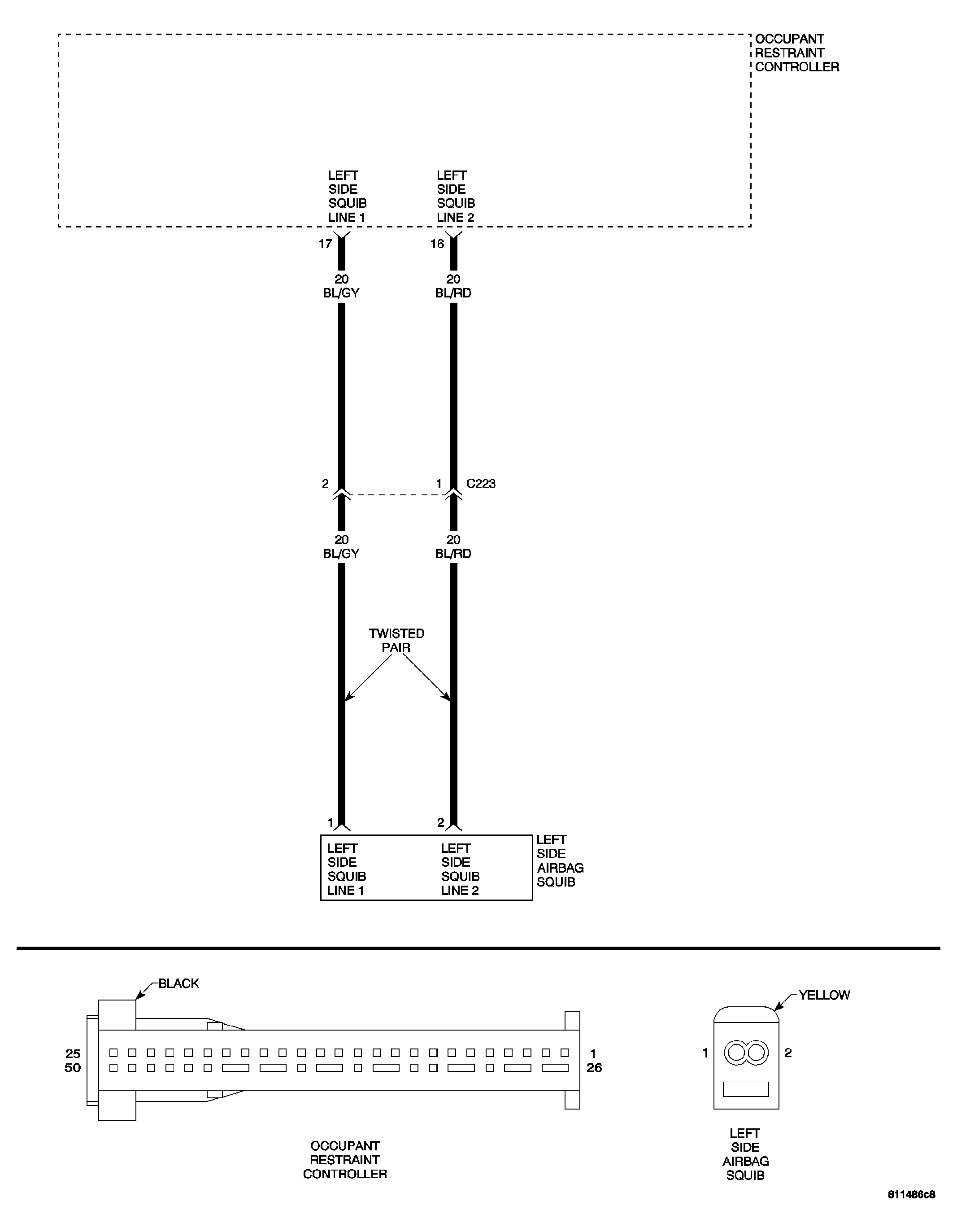

Fig 1: Left Side Airbag Squib Circuit Diagram

GC0035608

Courtesy of DAIMLERCHRYSLER CORP.
