Timing Chain: Installation

WARNING: This page is about a different variant/trim than selected.

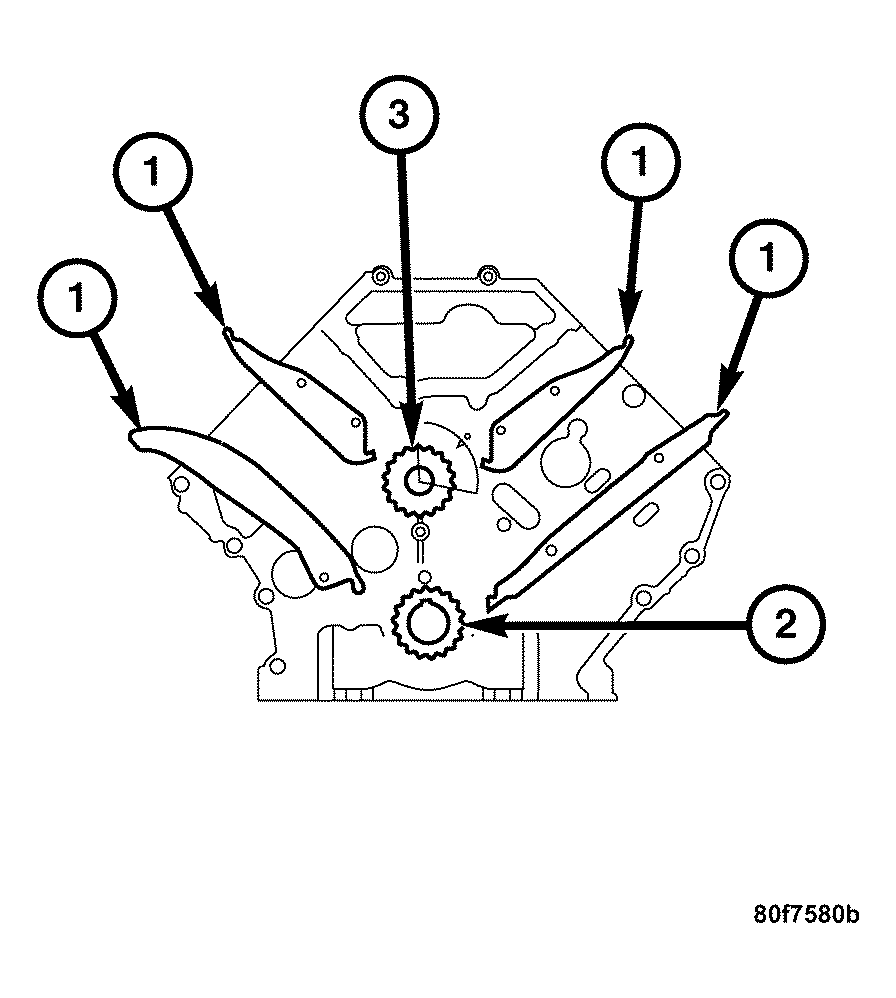

Fig 1: Identifying Timing Components

Courtesy of DAIMLERCHRYSLER CORP.

Invert the engine on the engine stand.
Install the crankshaft sprocket (2).

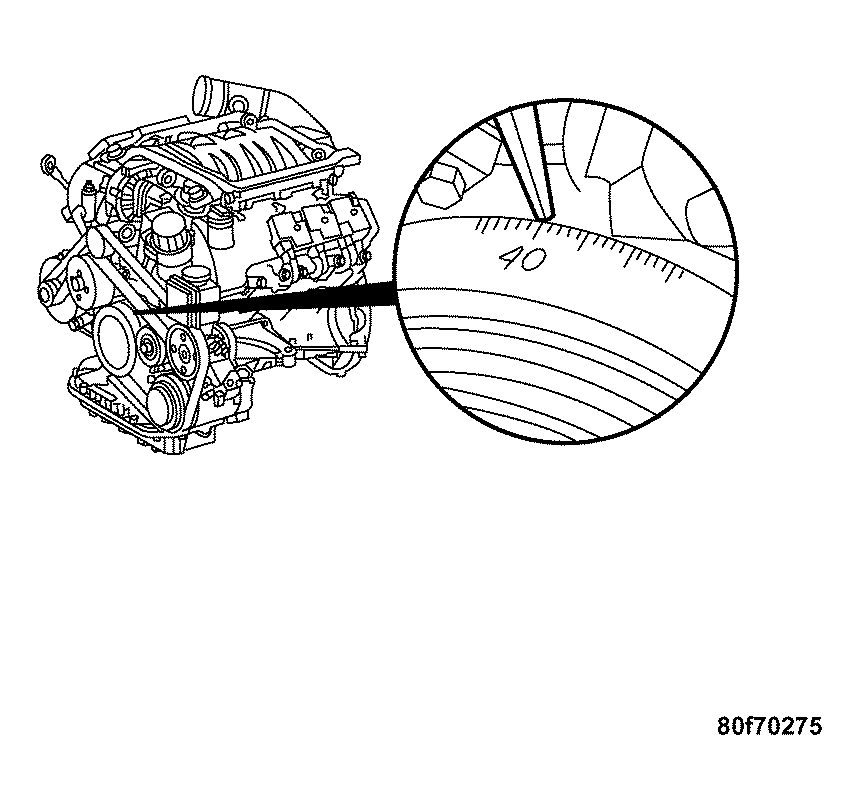

Fig 2: Rotating Crankshaft To 40° ATDC
Courtesy of DAIMLERCHRYSLER CORP.
Ensure the crankshaft has maintained 40 degrees ATDC. If not, rotate until aligned with 40 degree marking.

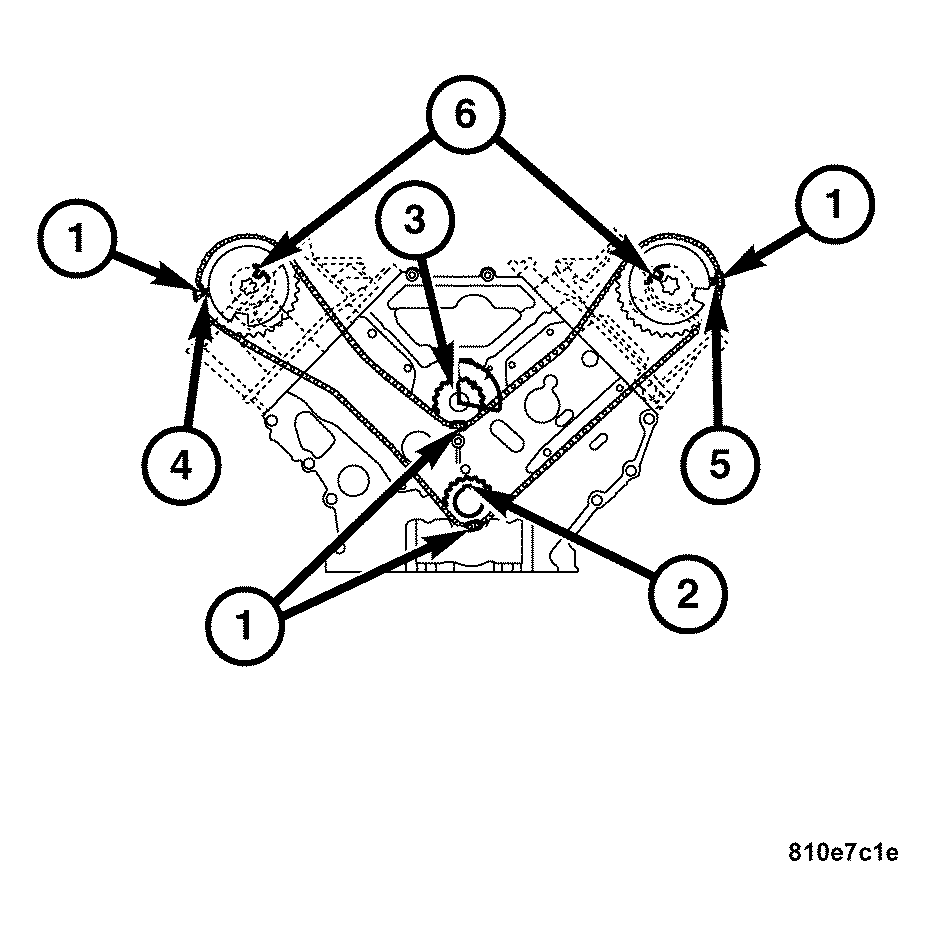

Fig 3: Identifying Timing Components
Courtesy of DAIMLERCHRYSLER CORP.
Align the balance shaft sprocket with the timing mark (3) and the copper teeth (1) of the timing chain.
Insert the camshaft sprockets (6) into the timing chain and align the camshaft sprocket timing marks (4) and (5) with the copper teeth (1) of the timing chain.

Fig 4: Identifying Timing Chain Guides
Courtesy of DAIMLERCHRYSLER CORP.
Install the timing chain with the sprockets and route within in the timing chain guides (1).

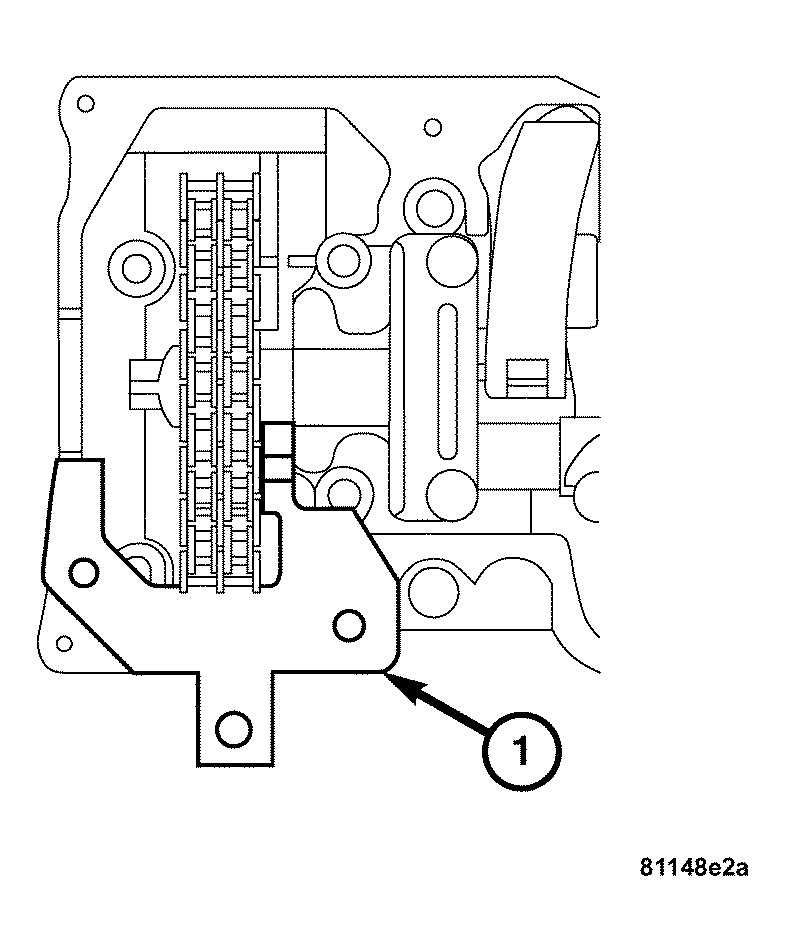

Fig 5: Identifying Special Tool 9104
Courtesy of DAIMLERCHRYSLER CORP.
Using Special Tools 9104 (1) and 9105 Camshaft Locating Plates, lock the camshaft sprockets.

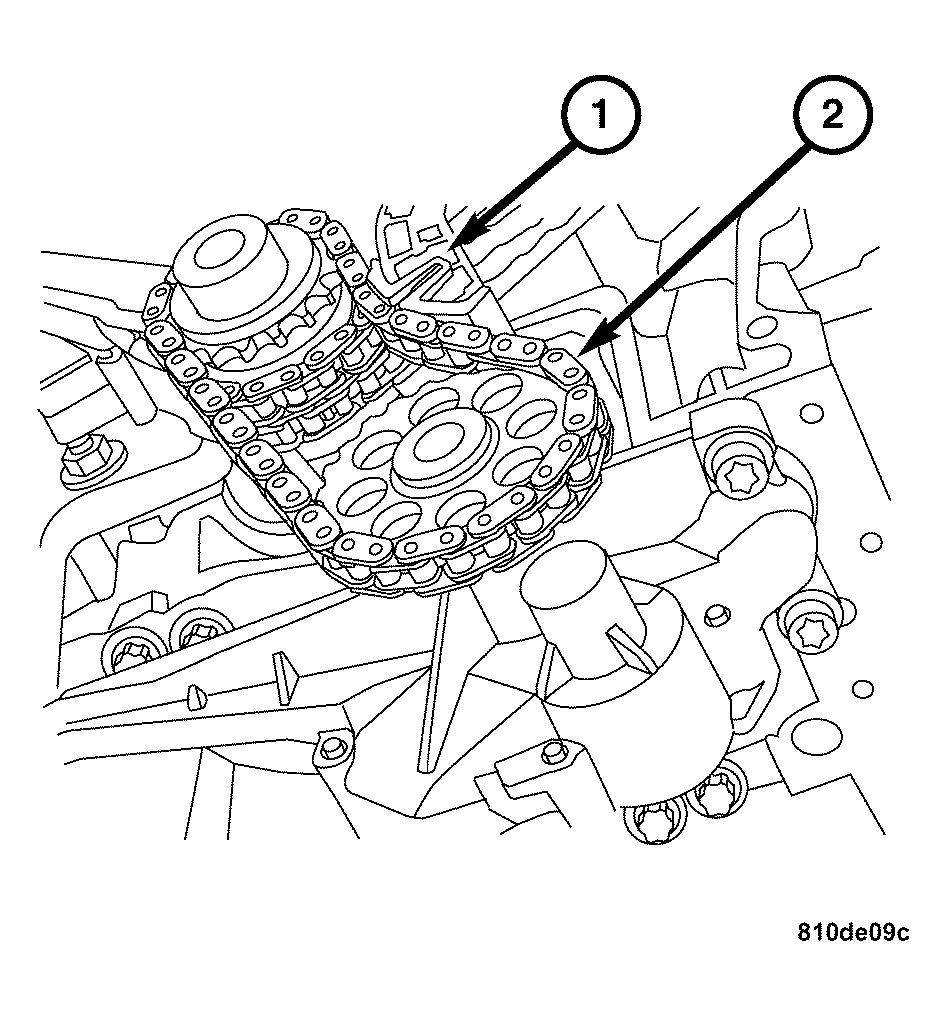

Fig 6: Identifying Tensioner & Oil Pump Drive Chain
Courtesy of DAIMLERCHRYSLER CORP.
Install the oil pump, the oil pump drive chain (2) and the oil pump drive chain tensioner (1). (Refer to ENGINE/LUBRICATION/OIL PUMP - INSTALLATION) .

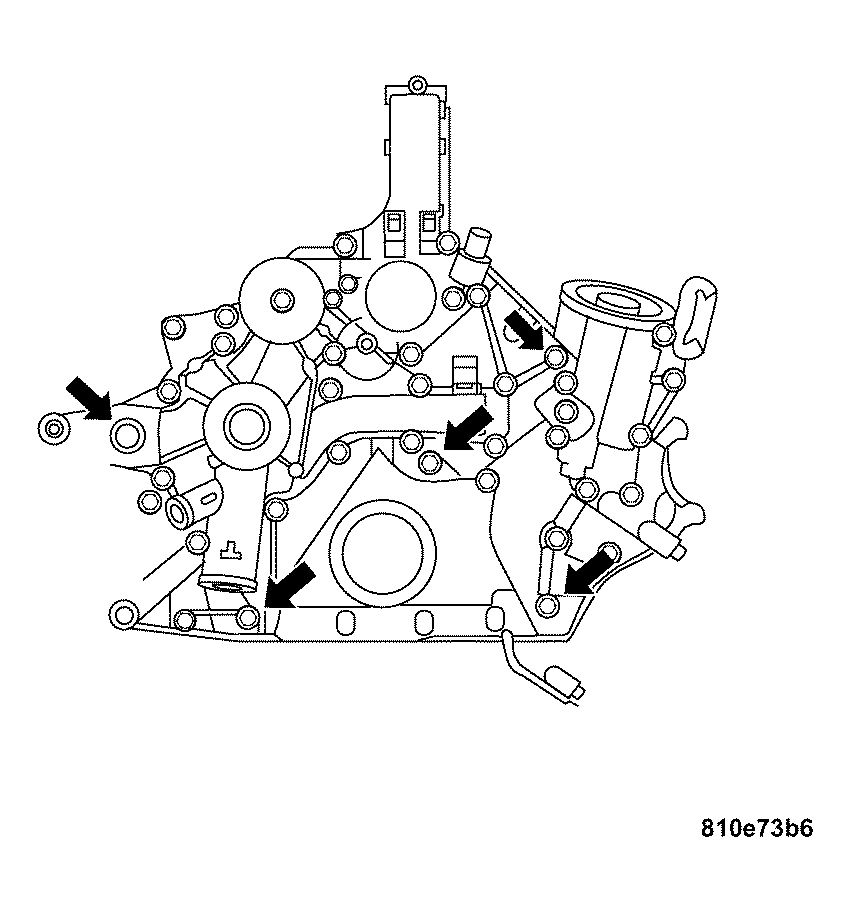

Fig 7: Installing Timing Chain Cover Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Rotate the engine to the upright position.
Install the timing chain cover. Tighten the bolts to 20 N.m (15 ft. lbs.). (Refer to ENGINE/VALVE TIMING/GEAR HOUSING COVER - INSTALLATION) .
Remove Special Tools 9104 and 9105 Camshaft Locating Plates from the camshaft sprockets.
