Oil Level/Temperature Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

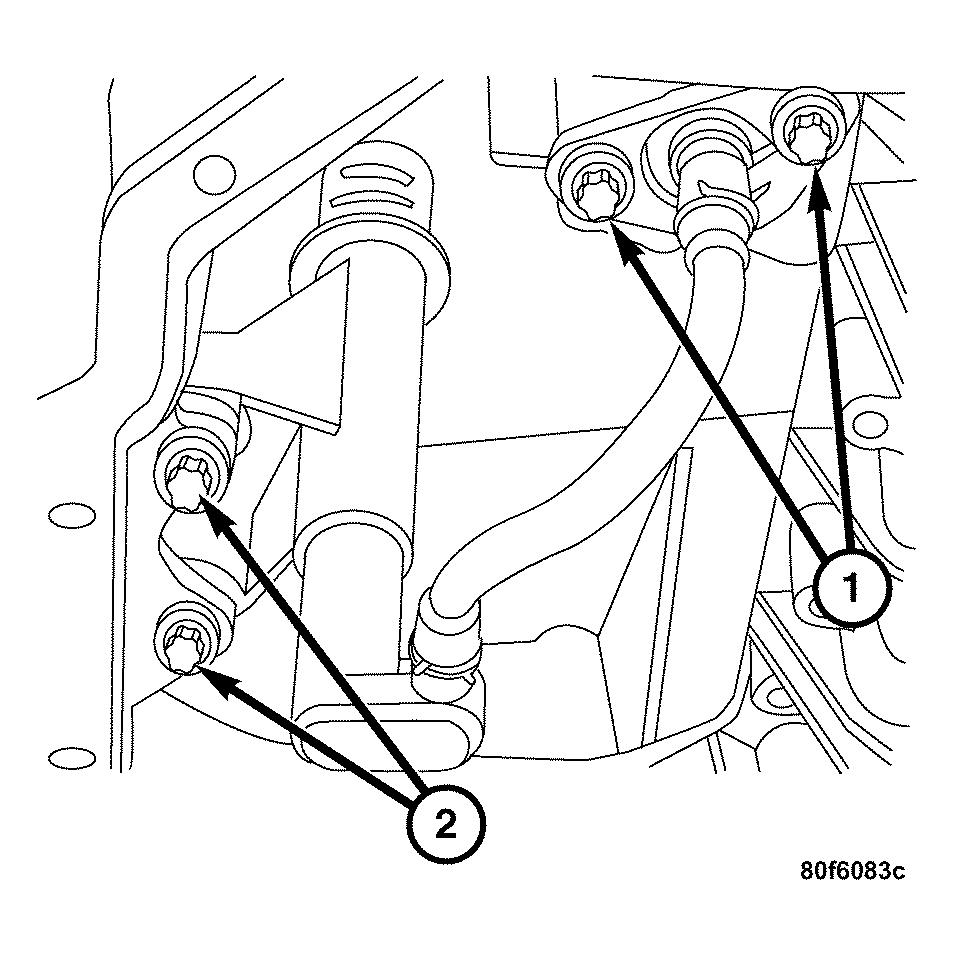

Fig 1: Identifying Retainer Screws
GC0034711Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the oil level/temperature sensor in the upper oil pan with the screws (1).
  2. Position the harness retainer in the upper oil pan with the screws (2).
  3. Tighten all screws for the oil level/temperature sensor to 10 N.m (89 in. lbs.).

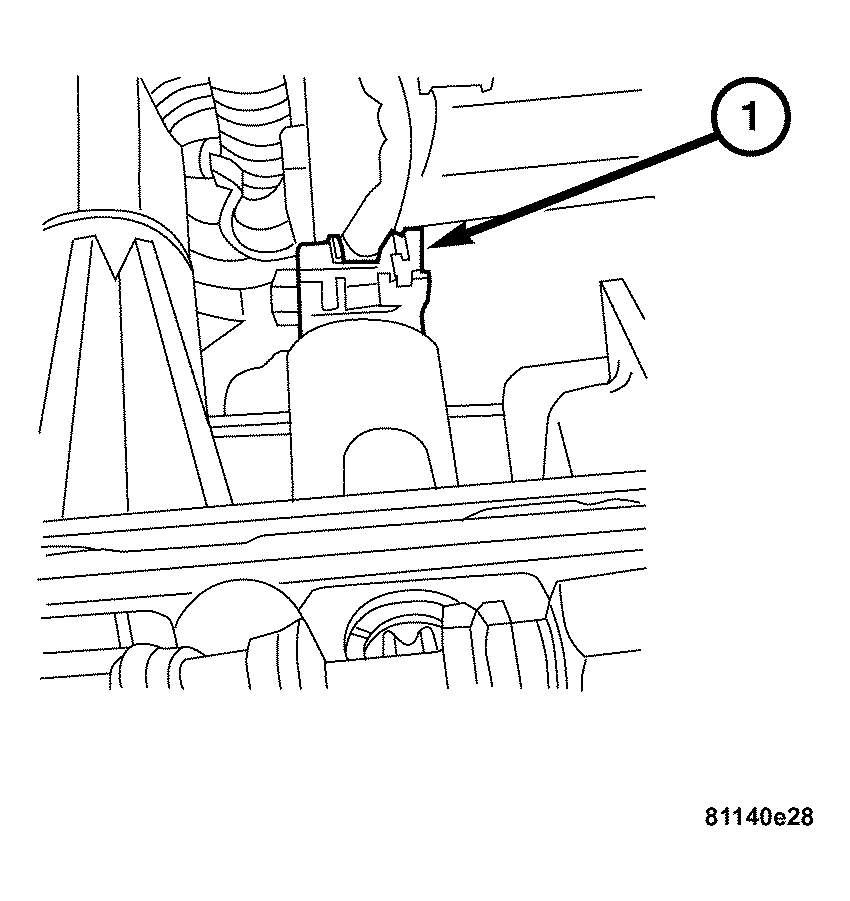

    Fig 2: Identifying Oil Level/Temperature Sensor Harness Connector
    GC0034712Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect the oil level/temperature sensor harness connector (1).
  5. Install the lower oil pan. (Refer to ENGINE/LUBRICATION/OIL PAN - INSTALLATION) .
