Clockspring Connector End View (C2)

WARNING: This page is about a different car, the 2005 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

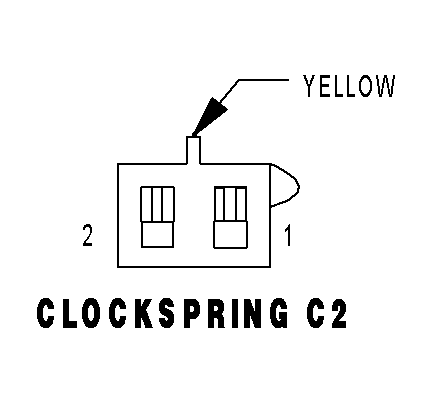

CLOCKSPRING C2 - YELLOW 2 WAY

GCTJ580066Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 R43 18LG/BR DRIVER SQUIB 1 LINE 1
2 R45 18LG/OR DRIVER SQUIB 1 LINE 2
