Specifications - Body Dimensions

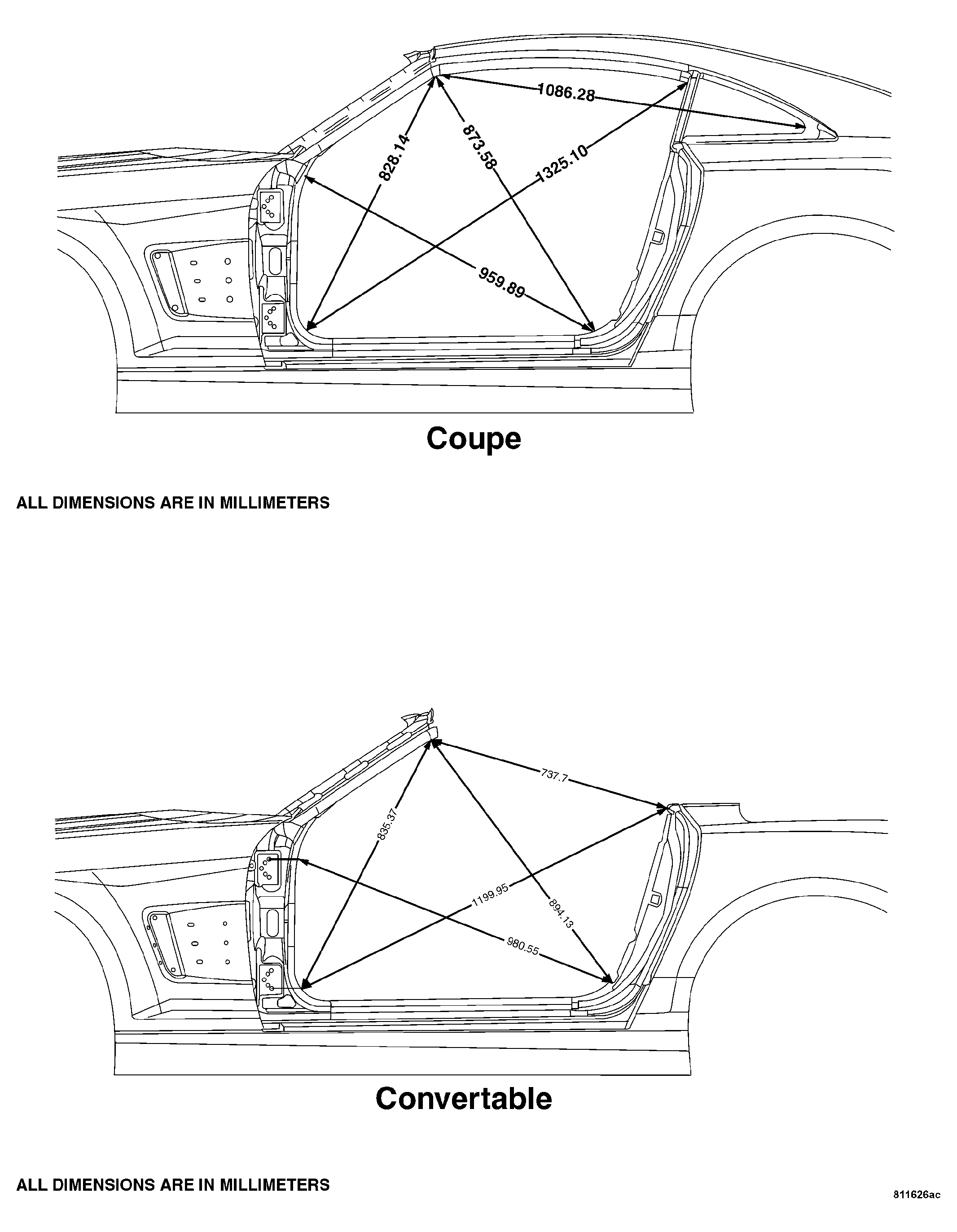

Fig 1: DOOR OPENING SPECIFICATIONS
GC0033167Courtesy of DAIMLERCHRYSLER CORP.

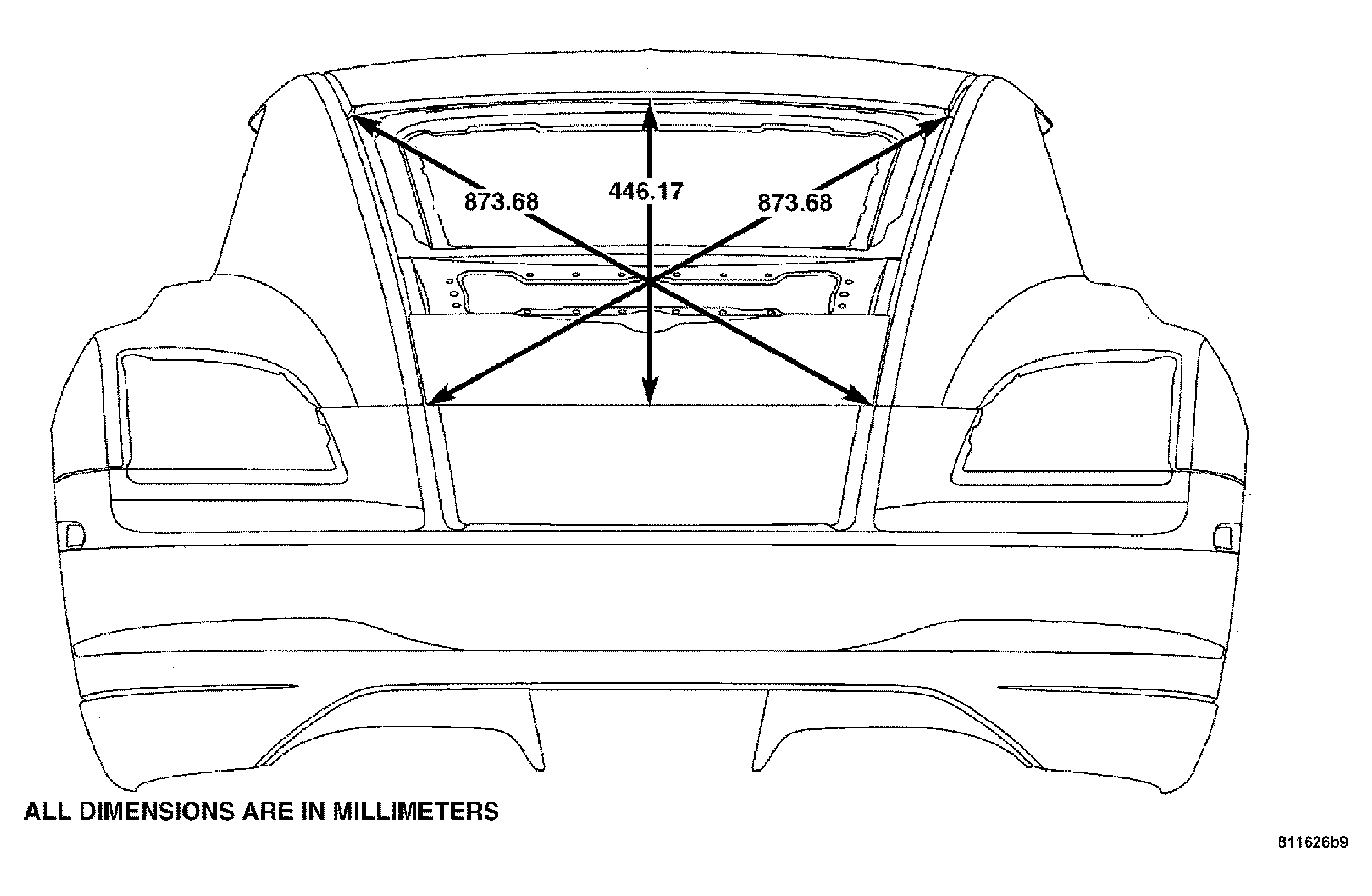

Fig 2: LIFTGATE OPENING SPECIFICATIONS
GC0033168Courtesy of DAIMLERCHRYSLER CORP.

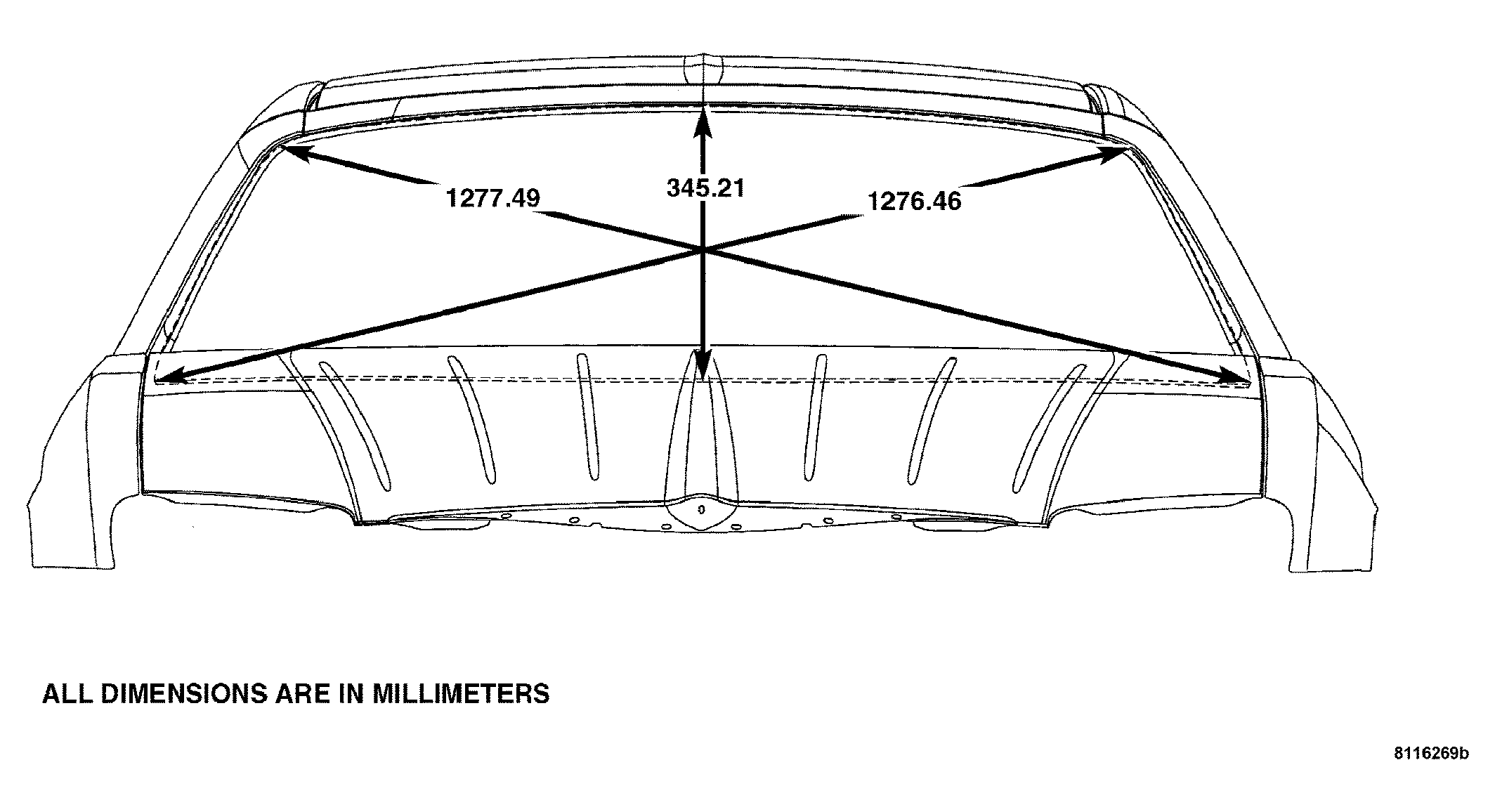

Fig 3: WINDSHIELD OPENING SPECIFICATIONS
GC0033166Courtesy of DAIMLERCHRYSLER CORP.

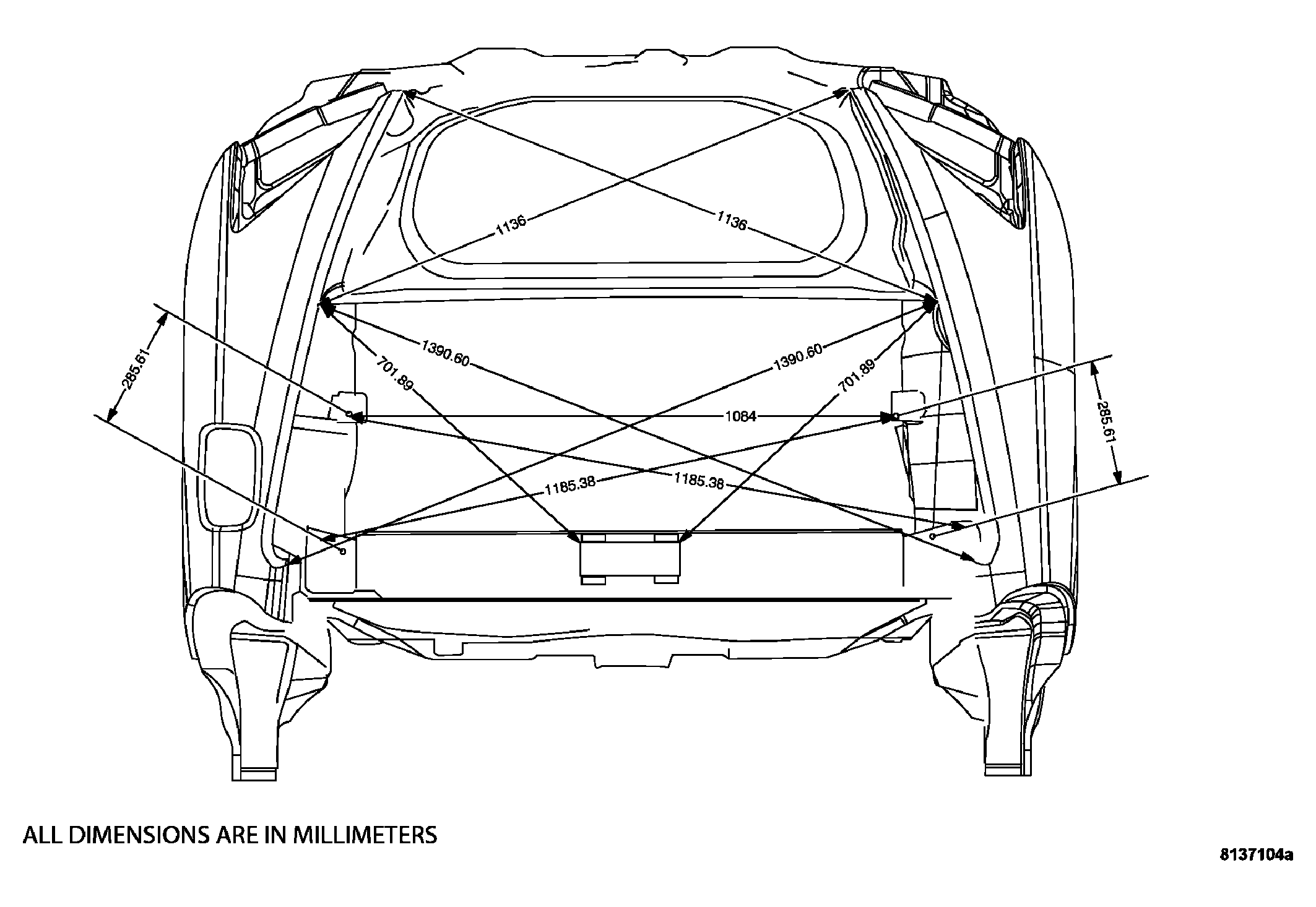

Fig 4: CONVERTIBLE OPENING SPECIFICATIONS
GC0033169Courtesy of DAIMLERCHRYSLER CORP.
