Anti-Theft Tow Sensor: Installation

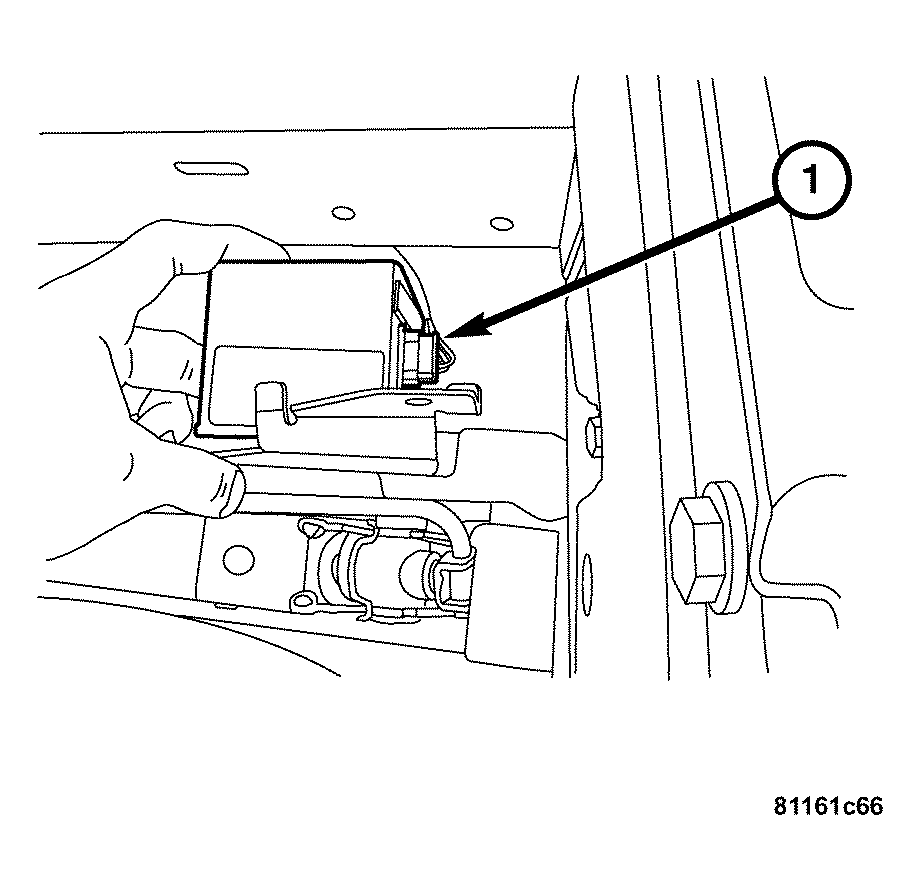

Fig 1: Disconnecting/Connecting Anti-Theft Tow Sensor Electrical Connector
GC0035765Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Install the anti-theft tow sensor with the "UP" mark properly positioned.
  1. Connect the anti-theft tow sensor electrical connector (1).

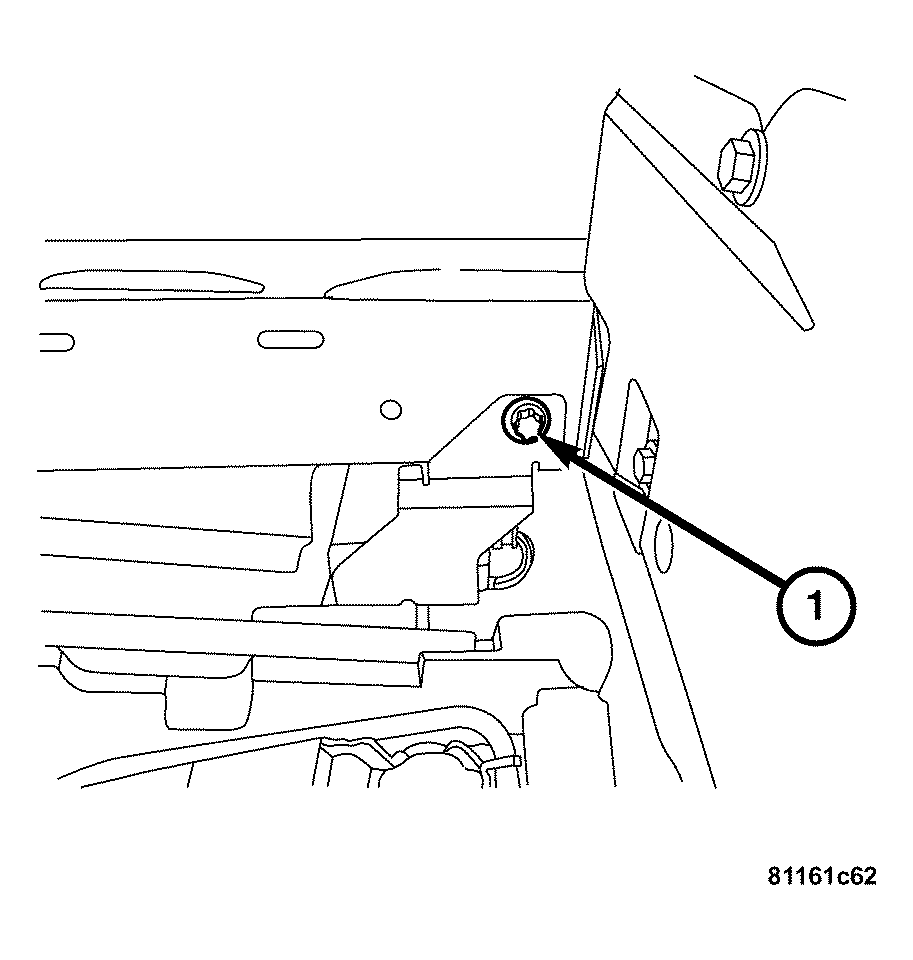

    Fig 2: Identifying Anti-Theft Tow Sensor Bracket Bolt
    GC0035764Courtesy of DAIMLERCHRYSLER CORP.
  2. Install the bolt (1) to the anti-theft tow sensor bracket.
  3. Install the right side trunk inner trim panel.
