Home >> Chrysler >> 2005 >> 300 Base >> Repair and Diagnosis >> External Pages >> Different car >> Section 316 (Electronic Control Modules - Electrical Diagnostics) >> Electronic Control Modules - Electrical Diagnostics >> DTC Troubleshooting >> *PCI Bus Communication Failure >> Circuit Schematic

Circuit Schematic

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

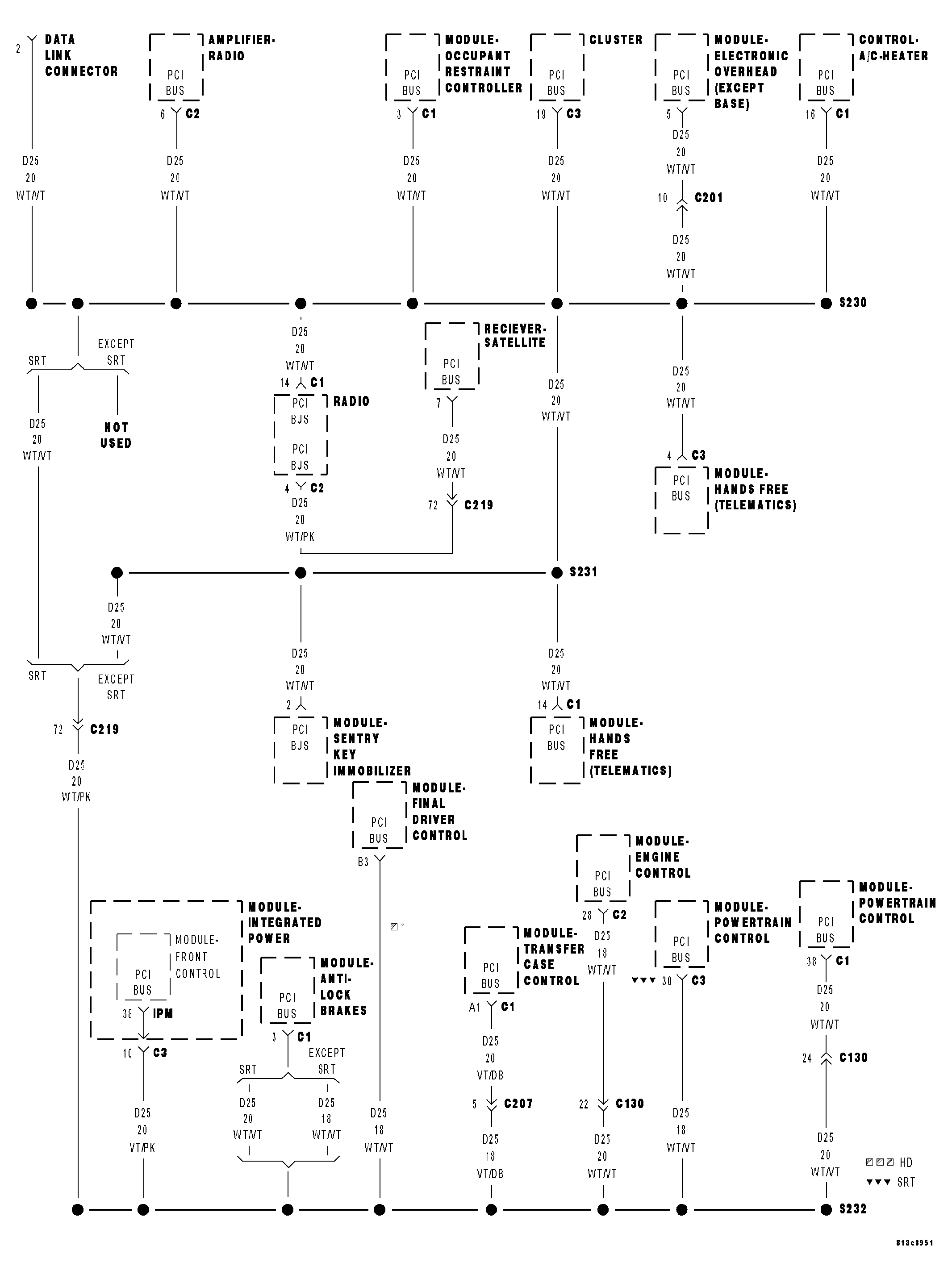

Fig 1: PCI BUS Communication Schematic
GC0006110Courtesy of DAIMLERCHRYSLER CORP.
