C302 (SLT) Connector End View

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

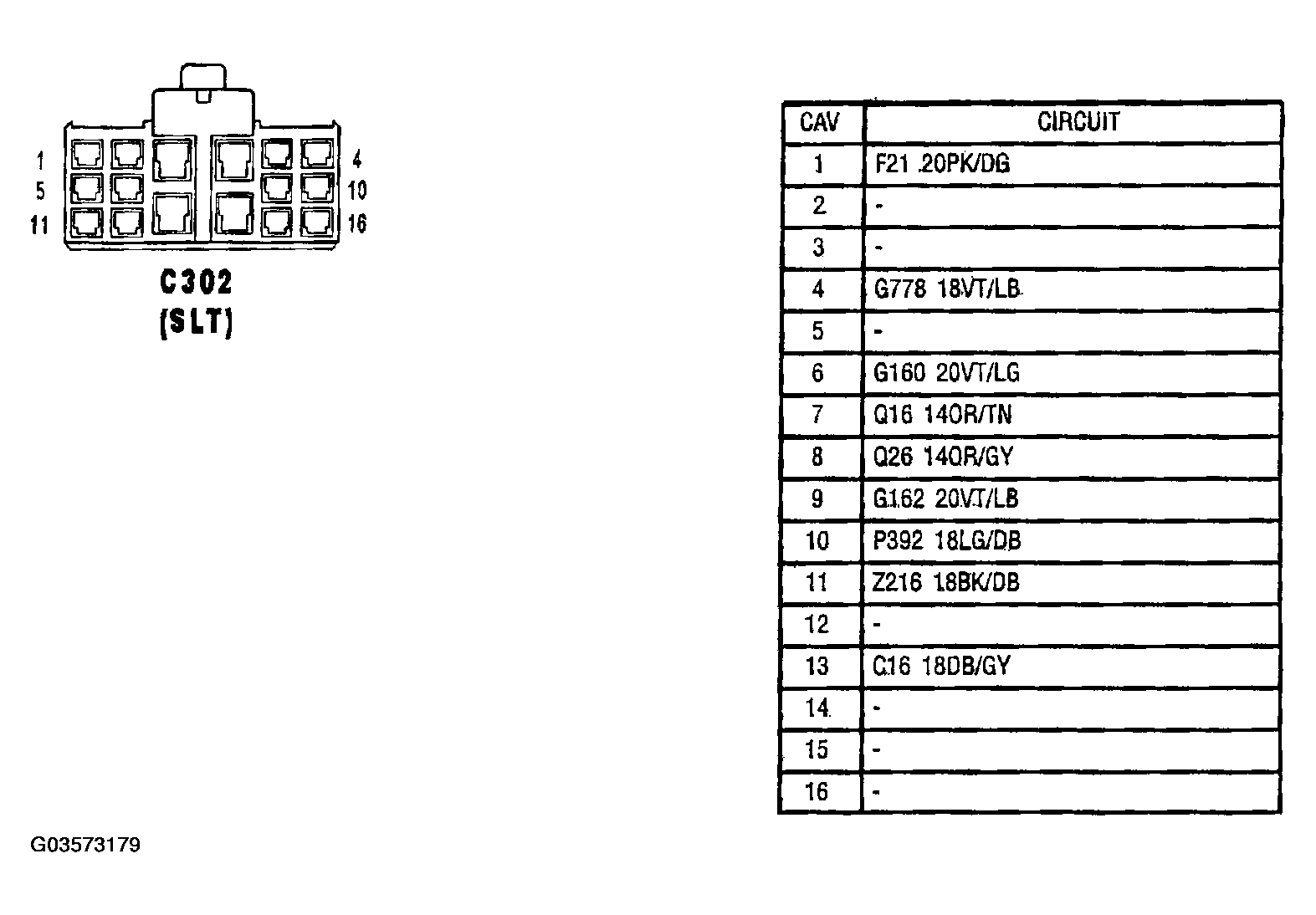

Fig 1: Body Side (SLT) Inline Connector End View (C302)
G03573179Courtesy of DAIMLERCHRYSLER CORP.
