Circuit Schematic

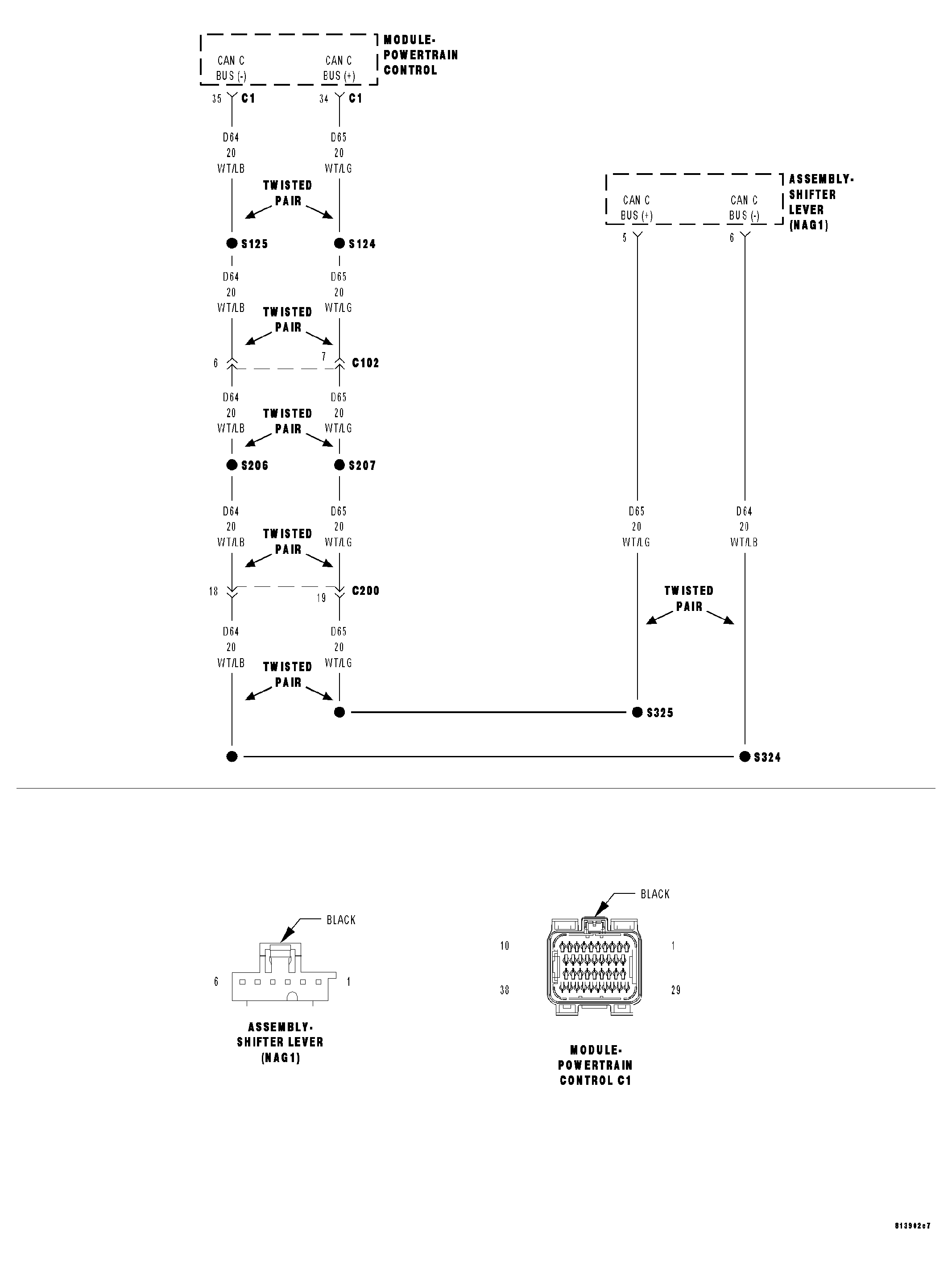

Fig 1: Shift Lever Assembly Circuit Schematic

GC0015203

Courtesy of DAIMLERCHRYSLER CORP.
