Circuit Schematic

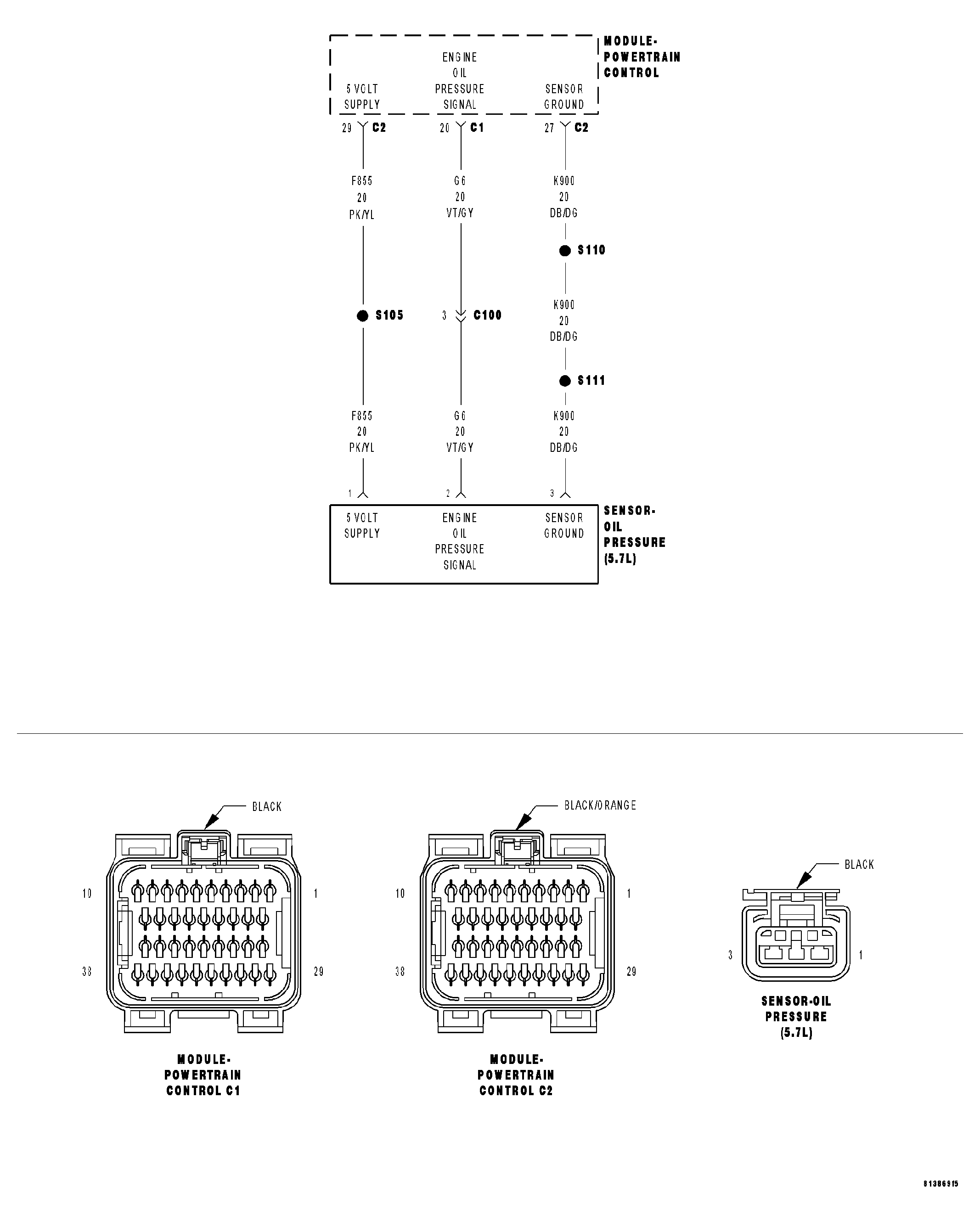

Fig 1: Engine Oil Pressure Sensor Circuit Schematic

GC0015018

Courtesy of DAIMLERCHRYSLER CORP.

For the Engine System Schematic circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
