Service Specifications
MANUAL A/C SERVICE SPECIFICATIONS
| Application |
Specification |
| Compressor Type |
MSC90C (Scroll) |

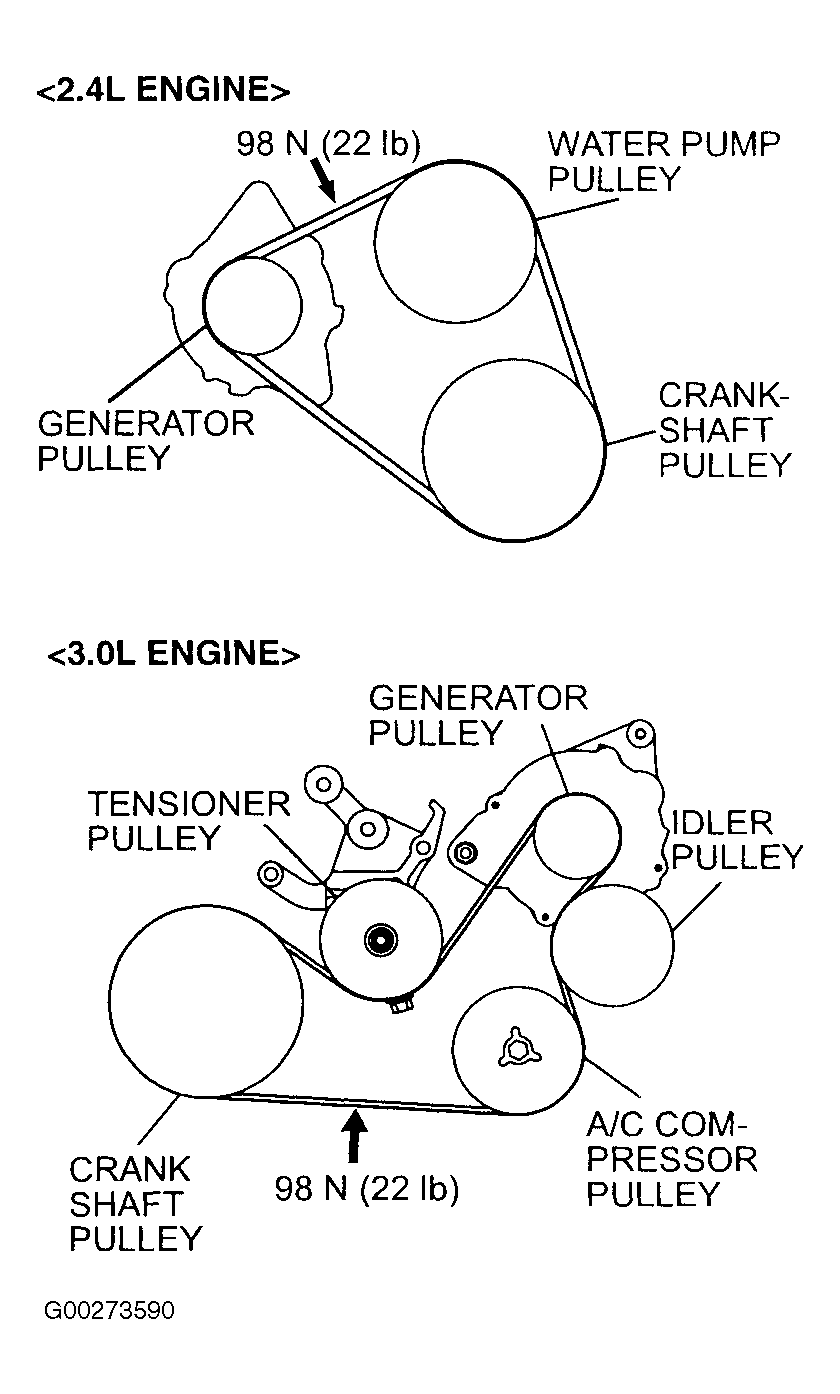

| Compressor Belt Deflection |
| |
2.4L |
0.26-0.35" (6.7-9.0 mm) |
| |
3.0L |
0.33-0.43" (8.5-10.9 mm) |

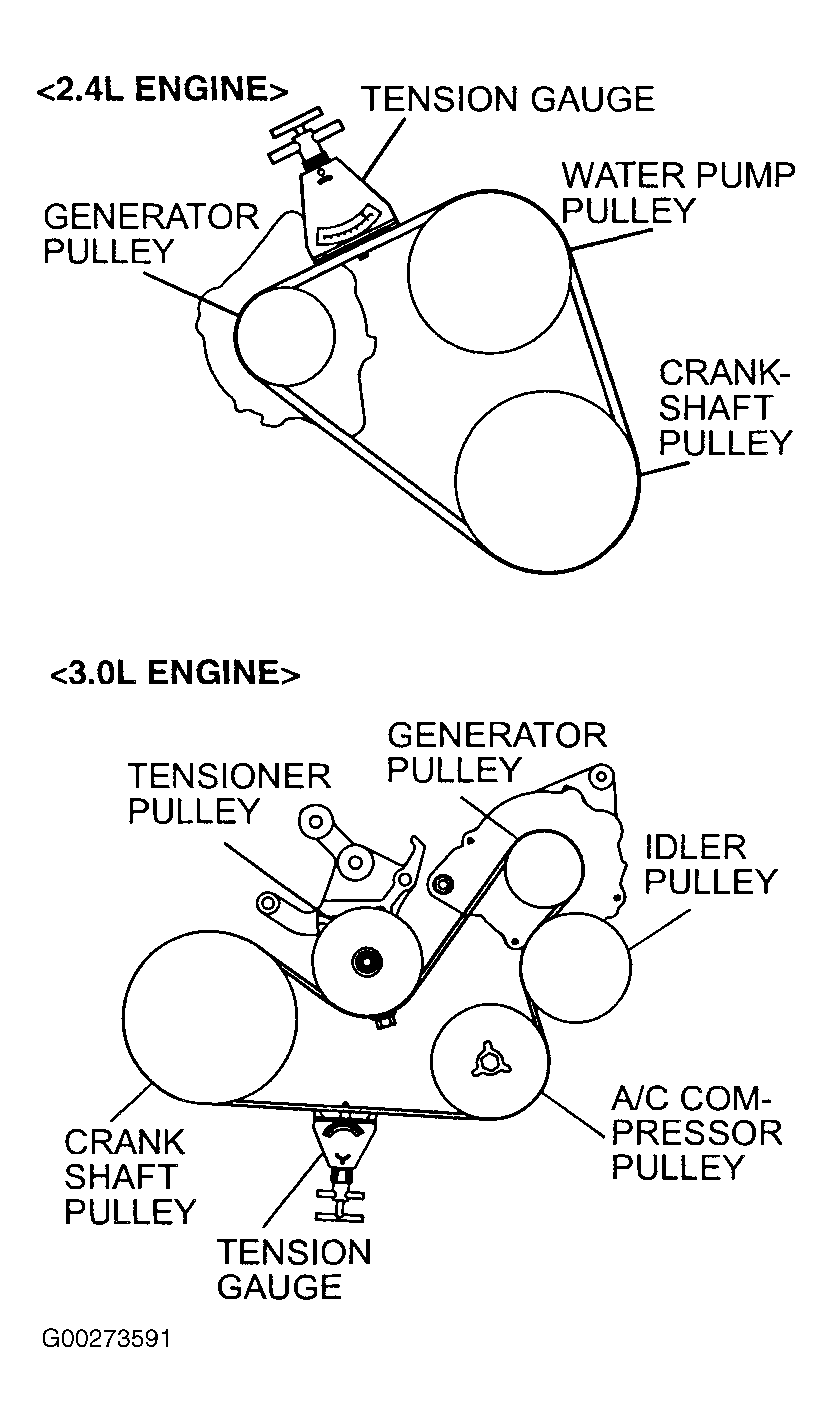

| Compressor Belt Tension |
| |
2.4L |
88-132 Lbs. (392-588 N) |
| |
3.0L |
110-154 Lbs. (490-686 N) |
| Compressor Clutch Air Gap |
| |
2.4L |
.012-.020" (.3-.5 mm) |
| |
3.0L |
.016-.024" (.4-.6 mm) |
| Refrigerant (R-134a) Capacity |
14.1-15.5 oz. (400-440 g) |
| Compressor |
4.1 ozs. |
| Evaporator |
2.0 ozs. |
| Condenser |
0.5 ozs. |
| Suction Hose |
0.3 ozs. |
| Receiver |
0.3 ozs. |
