Power Window Relay Check

SPECIFIC CONDITION

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
Not applied 4-5 Open circuit
  • Connect terminal No. 1 to the positive battery terminal.
  • Connect terminal No. 3 to the negative battery terminal.
 Less than 2 ohms

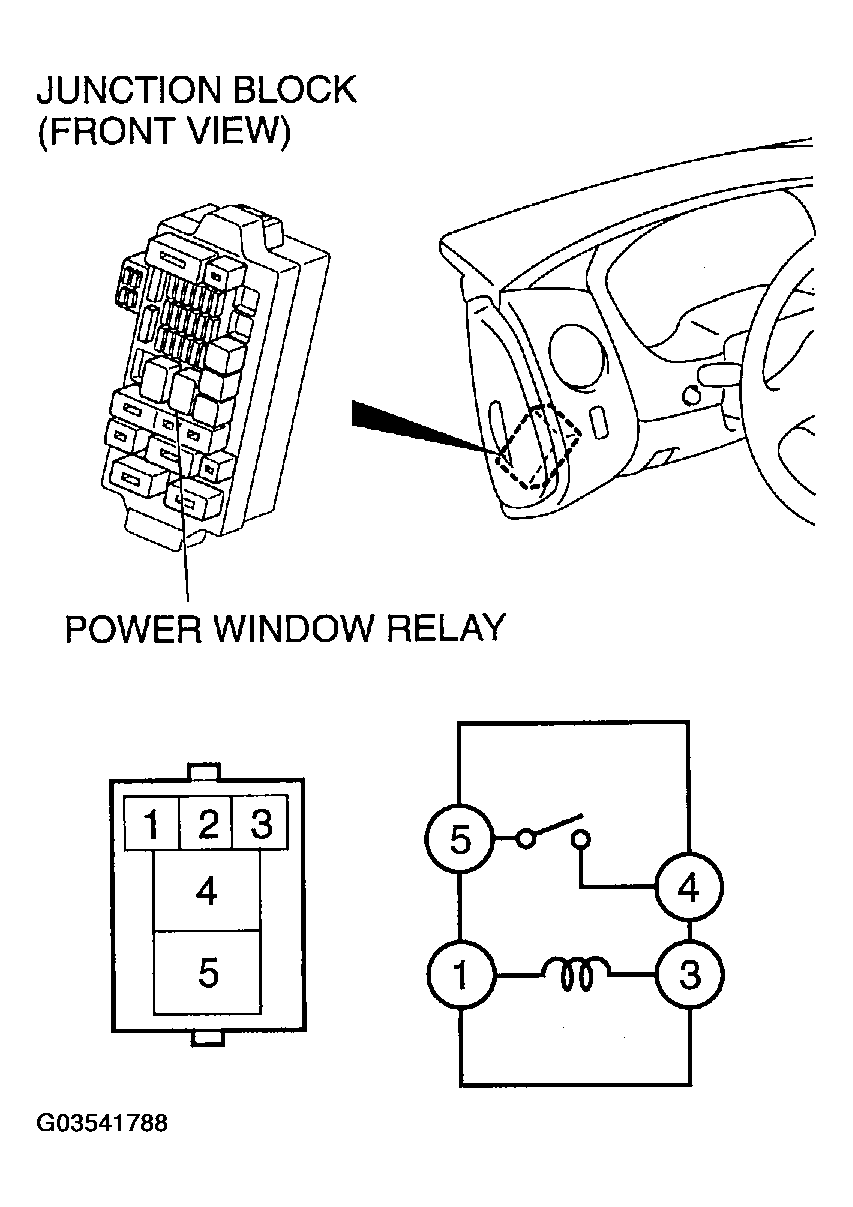

Fig 1: Identifying Power Window Relay Terminal
G03541788Courtesy of DAIMLERCHRYSLER CORP.
