Speed Sensor - Input: Installation

  1. Verify o-ring is installed into position (Fig 1).

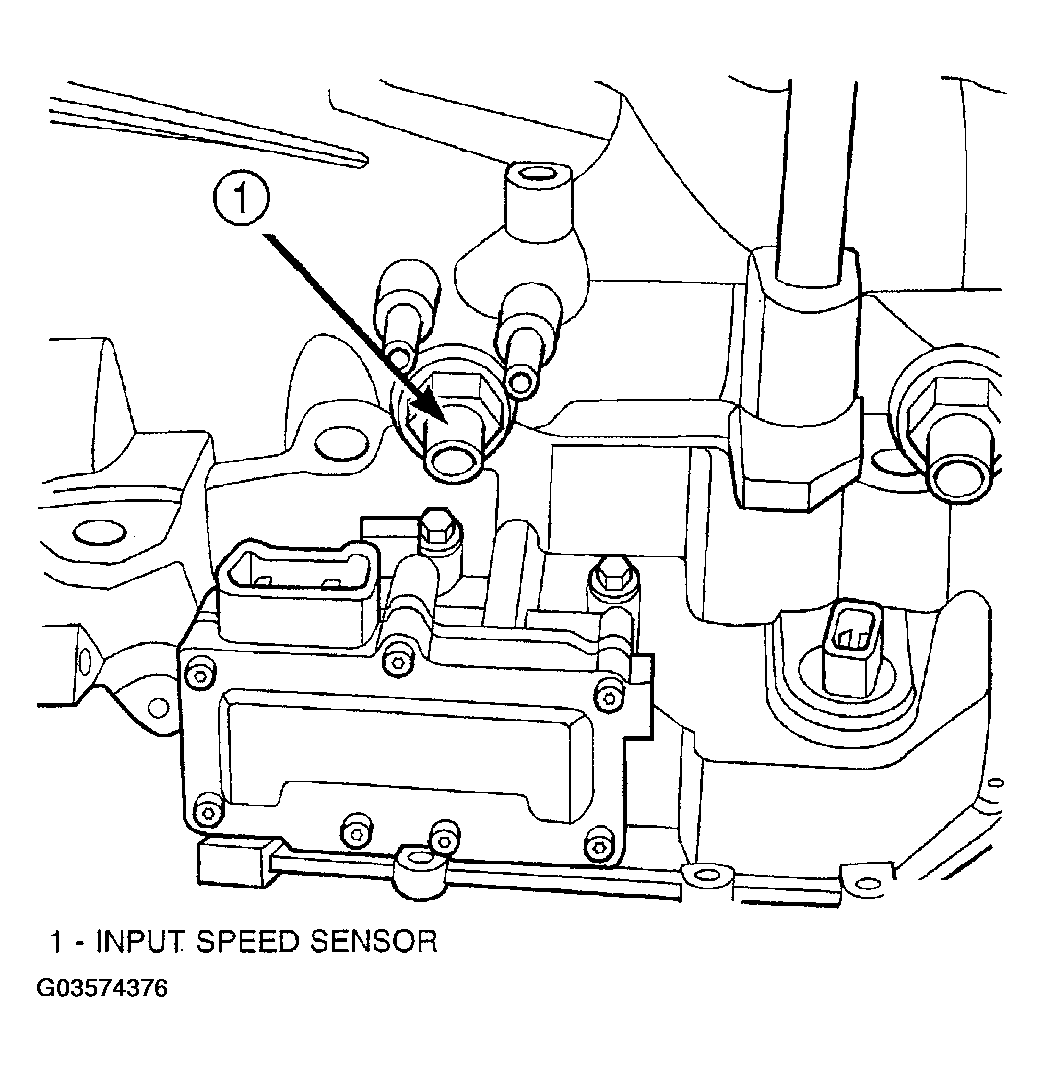

  2. Install and tighten input speed sensor to 27 N.m (20 ft. lbs.) (Figure).

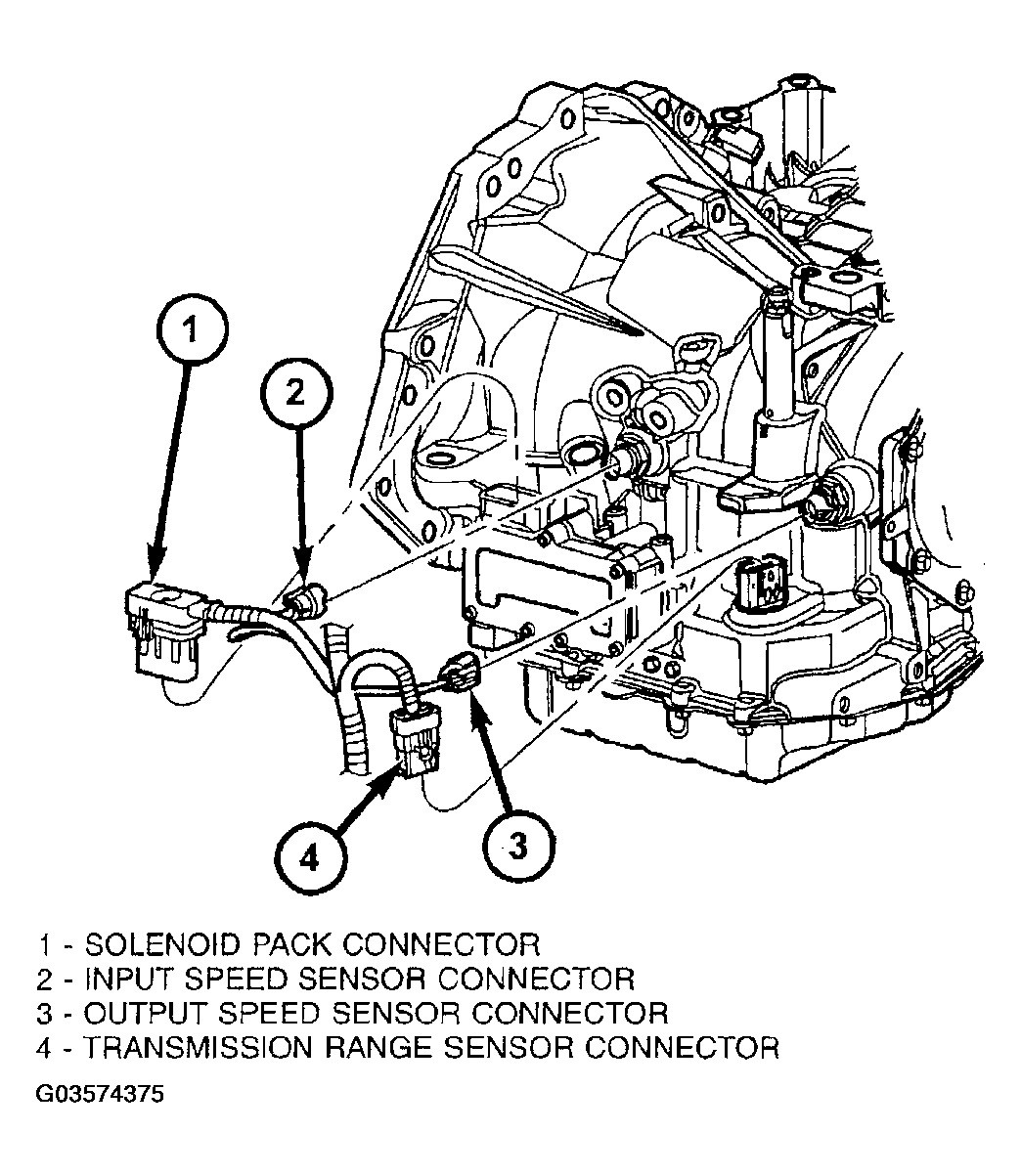

  3. Connect speed sensor connector (Figure).
  4. Connect battery negative cable.

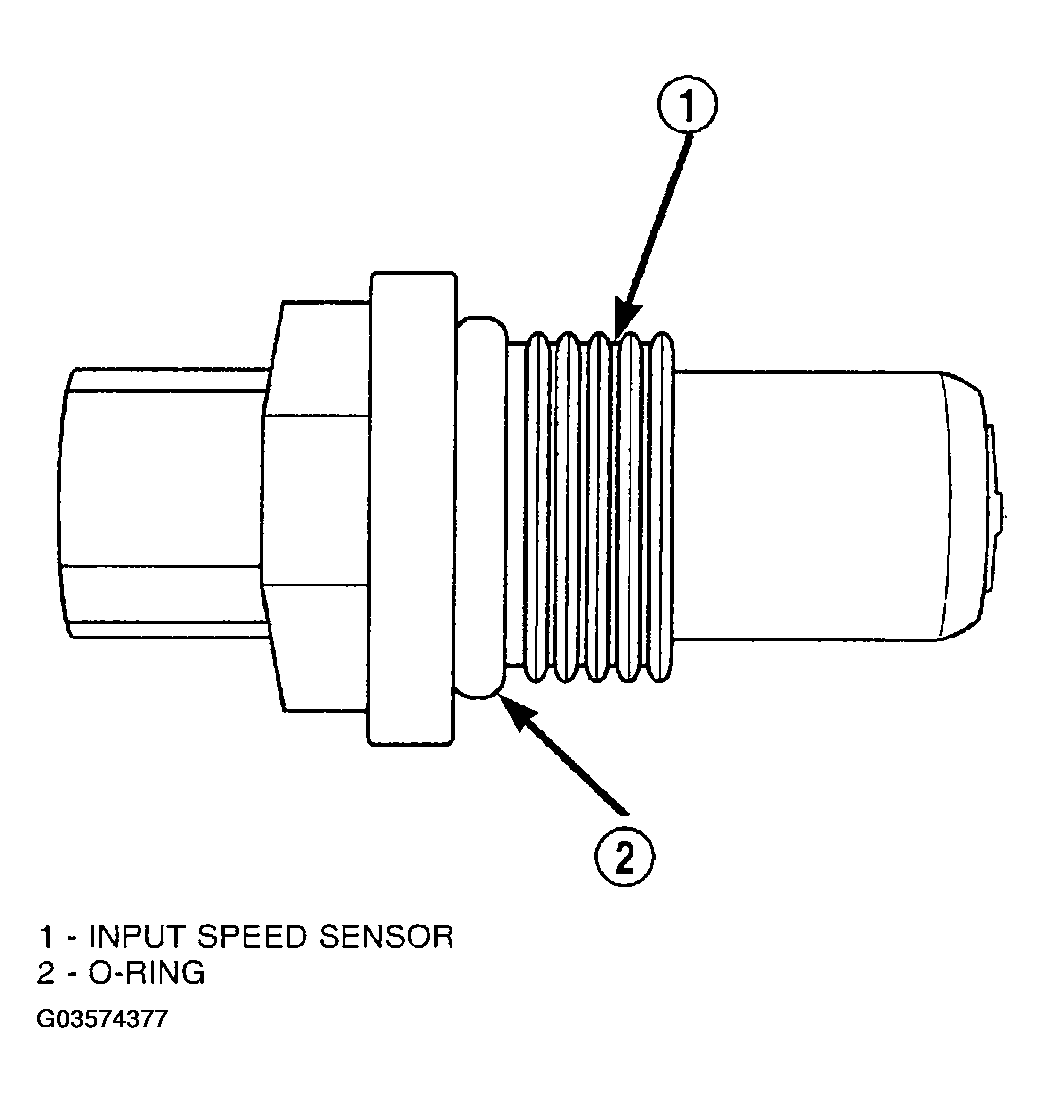

    Fig 1: Identifying O-Ring Location
    G03574377Courtesy of DAIMLERCHRYSLER CORP.
