Possible Causes

  1. FUEL PUMP RELAY
  2. NO START PRE-TEST
  3. OTHER POSSIBLE CAUSES FOR NO START
  4. POWERTRAIN FUSES OPEN
  5. FUEL PRESSURE OUT OF SPECS
  6. RESTRICTED FUEL SUPPLY LINE
  7. VISUAL/PHYSICAL INSPECT OF THE FUEL LINE AND SIPHON LINE
  8. FUEL PUMP/FUEL REGULATOR
  9. FUEL PUMP RELAY FUSED B+ CIRCUIT
  10. FUEL PUMP RELAY OUTPUT CIRCUIT OPEN
  11. FUEL PUMP GROUND CIRCUIT OPEN/HIGH RESISTANCE
  12. FUEL PUMP MODULE

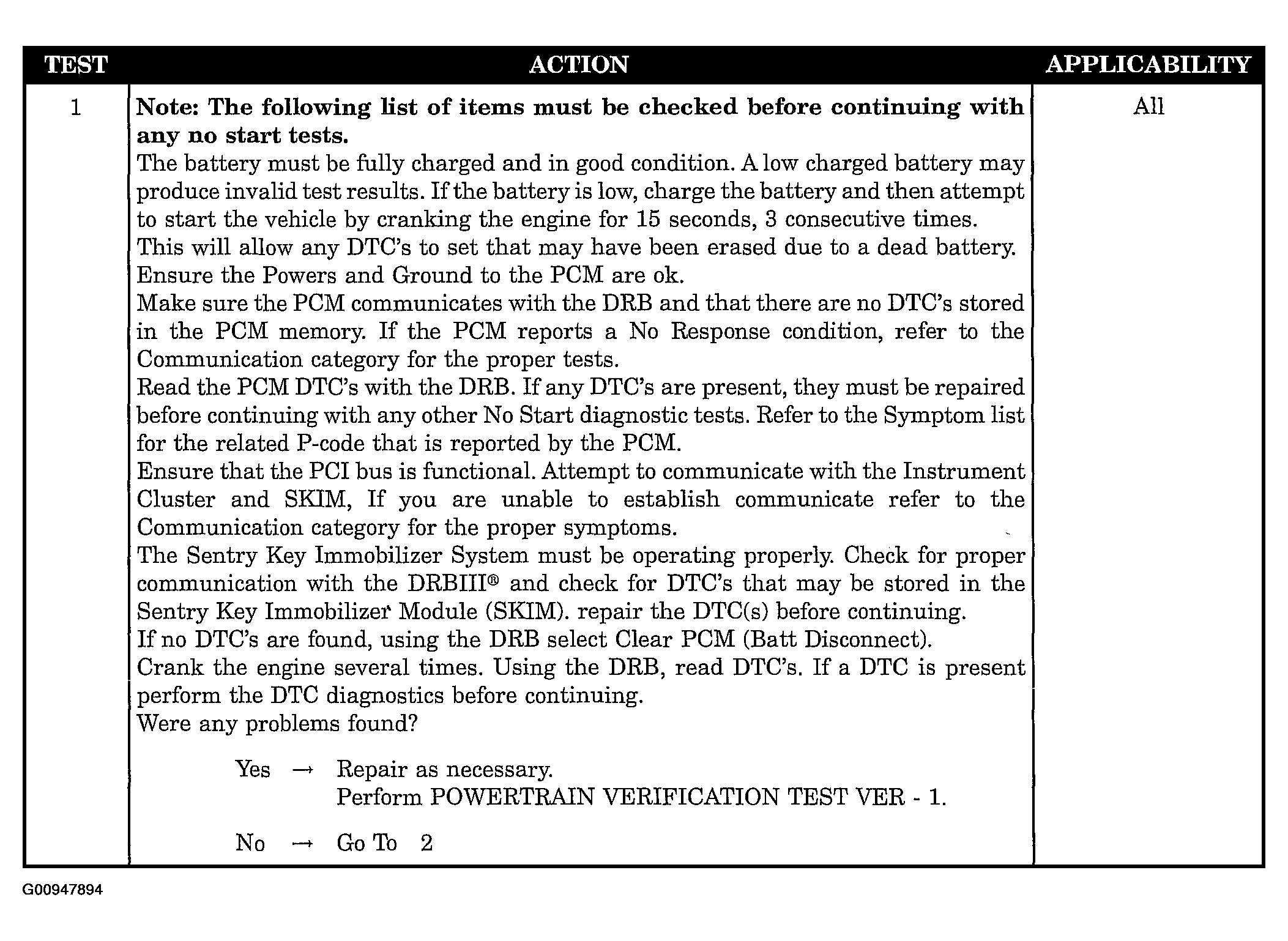

    Fig 1: Diagnostic Chart - Engine Cranks Does Not Start (1 Of 5)
    G00947894Courtesy of DAIMLERCHRYSLER CORP.

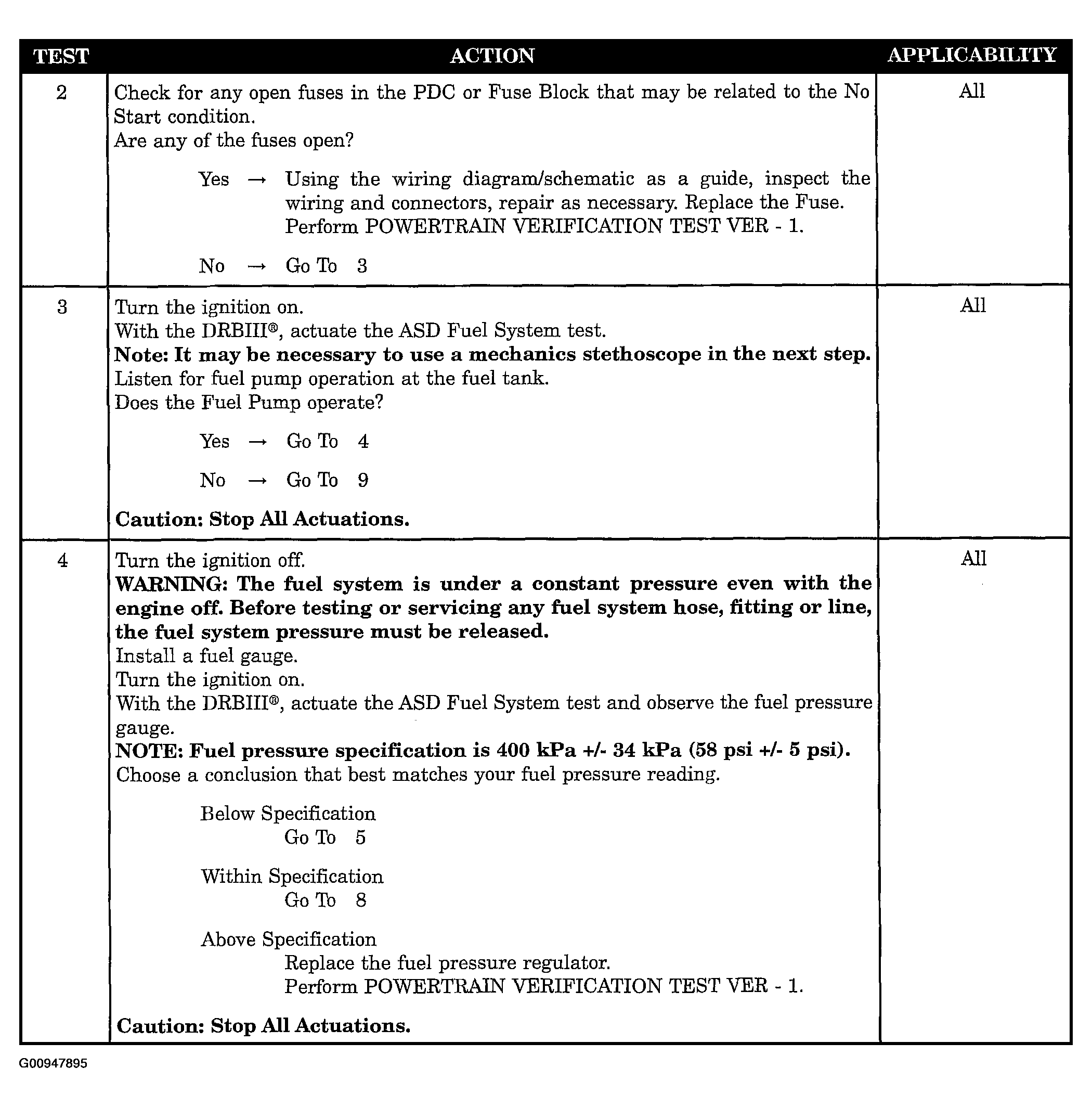

    Fig 2: Diagnostic Chart - Engine Cranks Does Not Start (2 Of 5)
    G00947895Courtesy of DAIMLERCHRYSLER CORP.

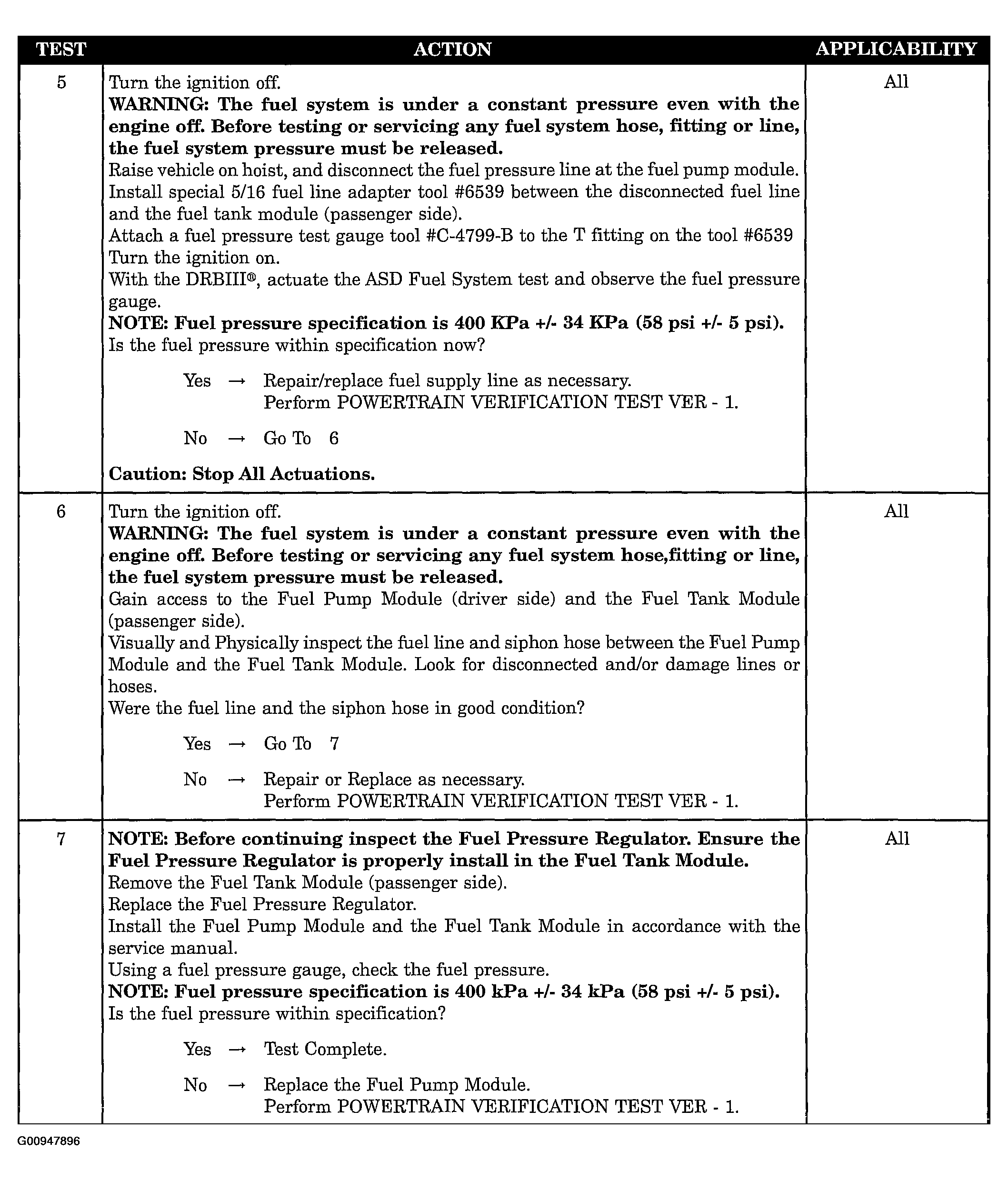

    Fig 3: Diagnostic Chart - Engine Cranks Does Not Start (3 Of 5)
    G00947896Courtesy of DAIMLERCHRYSLER CORP.

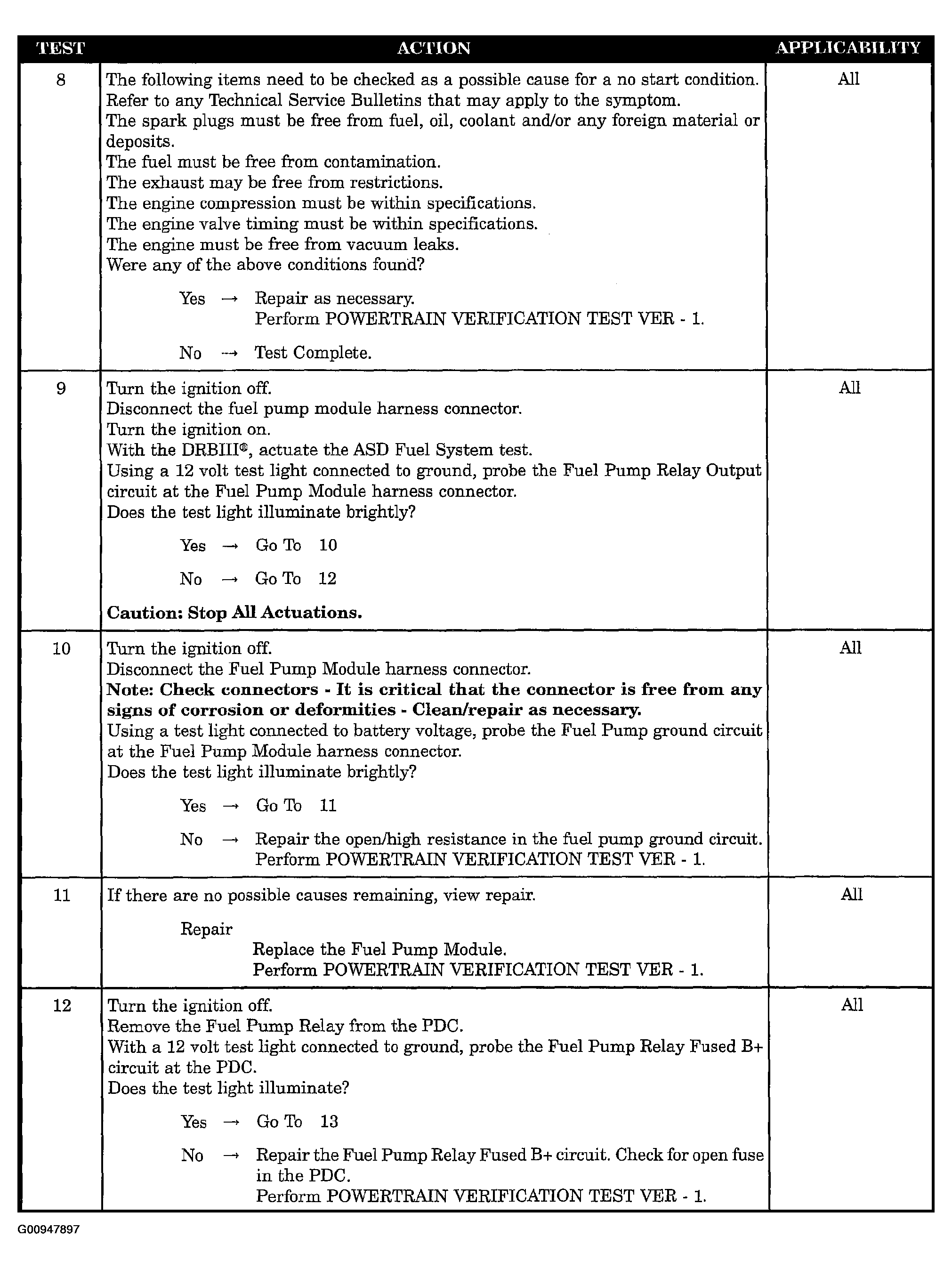

    Fig 4: Diagnostic Chart - Engine Cranks Does Not Start (4 Of 5)
    G00947897Courtesy of DAIMLERCHRYSLER CORP.

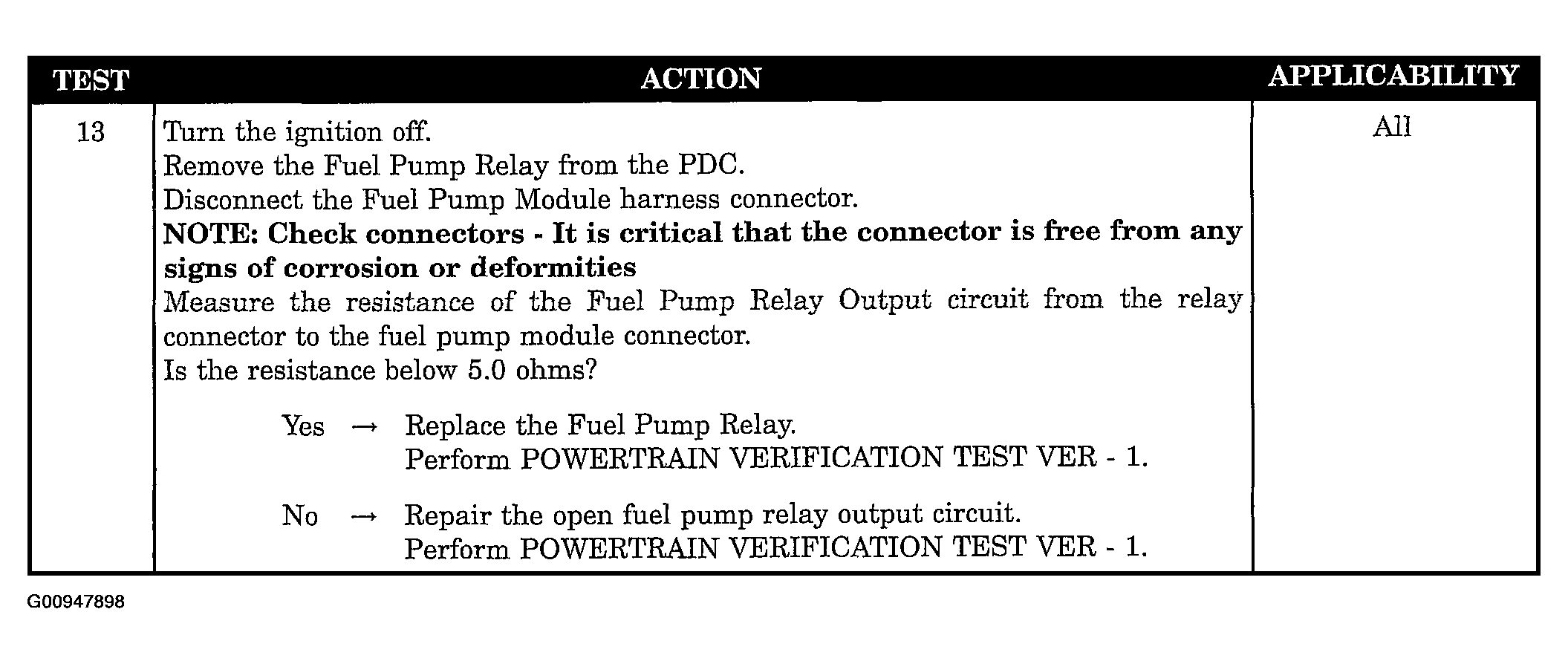

    Fig 5: Diagnostic Chart - Engine Cranks Does Not Start (5 Of 5)
    G00947898Courtesy of DAIMLERCHRYSLER CORP.
