Possible Causes

  1. PCM NOT PROGRAMMED
  2. VERIFY PCM PROGRAMMING
  3. PCM

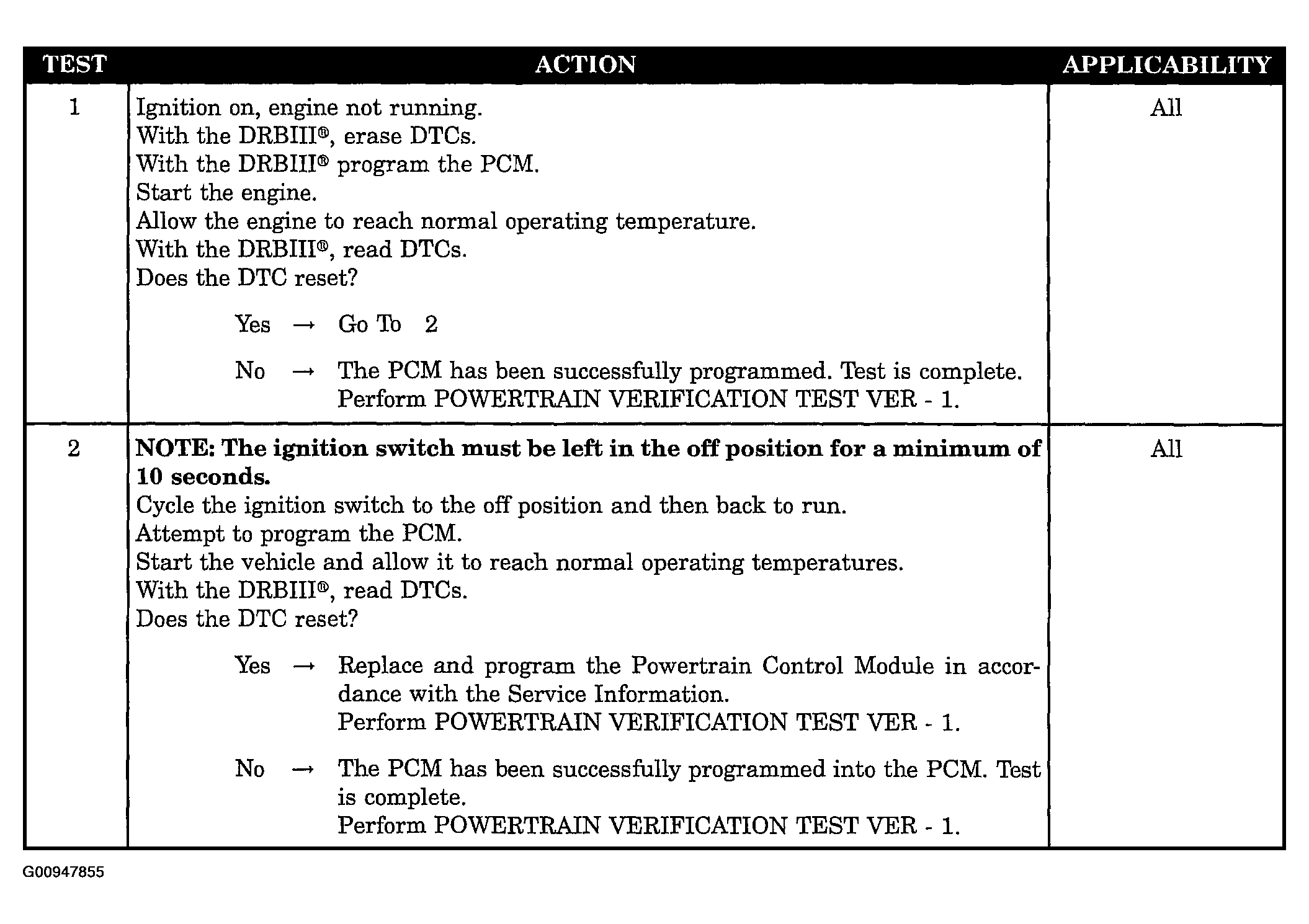

    Fig 1: Diagnostic Chart - PCM Not Programmed
    G00947855Courtesy of DAIMLERCHRYSLER CORP.
