Possible Causes

  1. GOOD TRIP EQUAL TO ZERO
  2. OTHER POSSIBLE CAUSES
  3. SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE
  4. TEMPERATURE SENSOR VOLTAGE BELOW 1.0 VOLT
  5. SIGNAL CIRCUIT OPEN
  6. SENSOR GROUND CIRCUIT OPEN
  7. SIGNAL CIRCUIT SHORTED TO GROUND
  8. SIGNAL CIRCUIT SHORTED TO SENSOR GROUND
  9. PCM LOW
  10. PCM HIGH

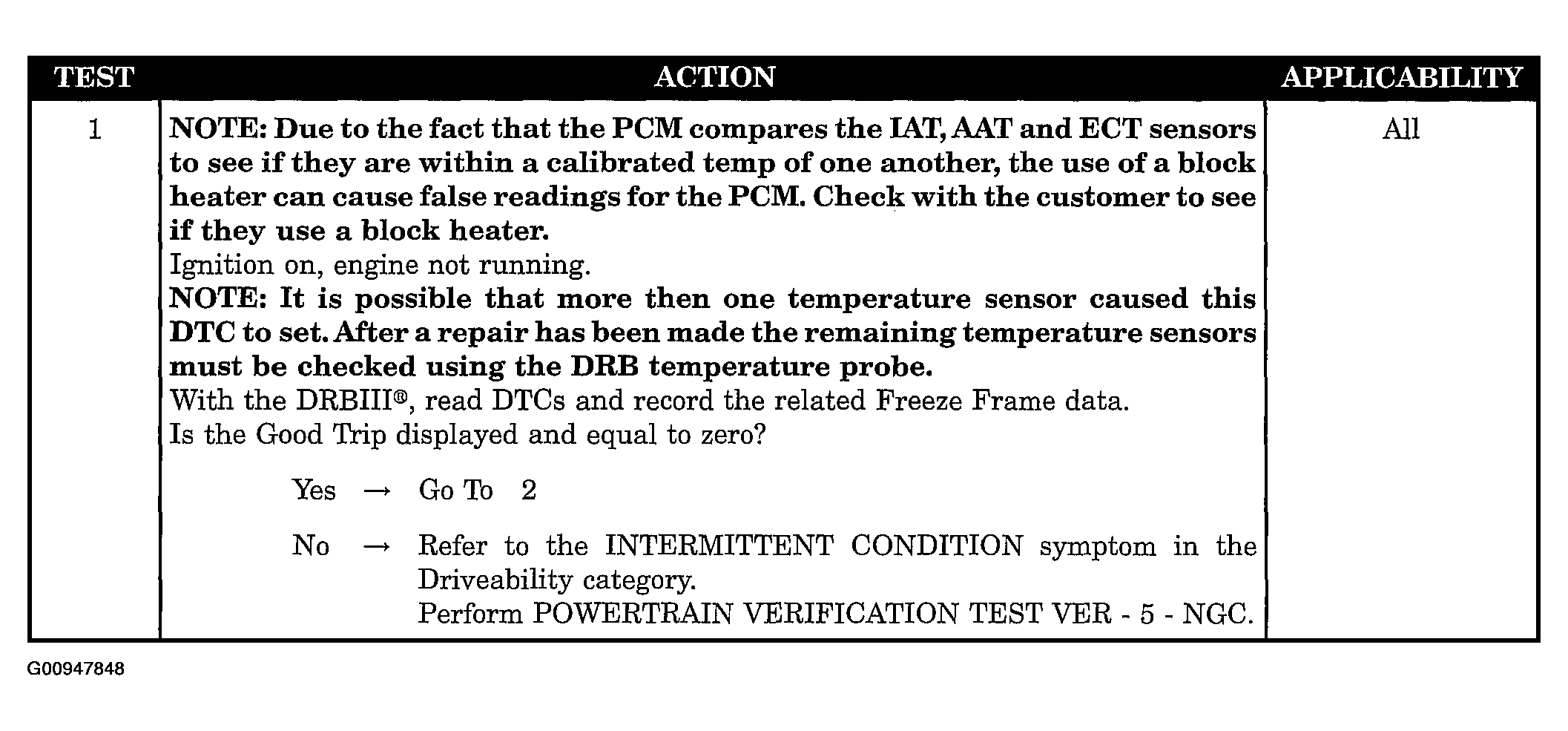

    Fig 1: Diagnostic Chart - General Temp Sensor Performance (1 Of 4)
    G00947848Courtesy of DAIMLERCHRYSLER CORP.
