Diagnostic Procedure

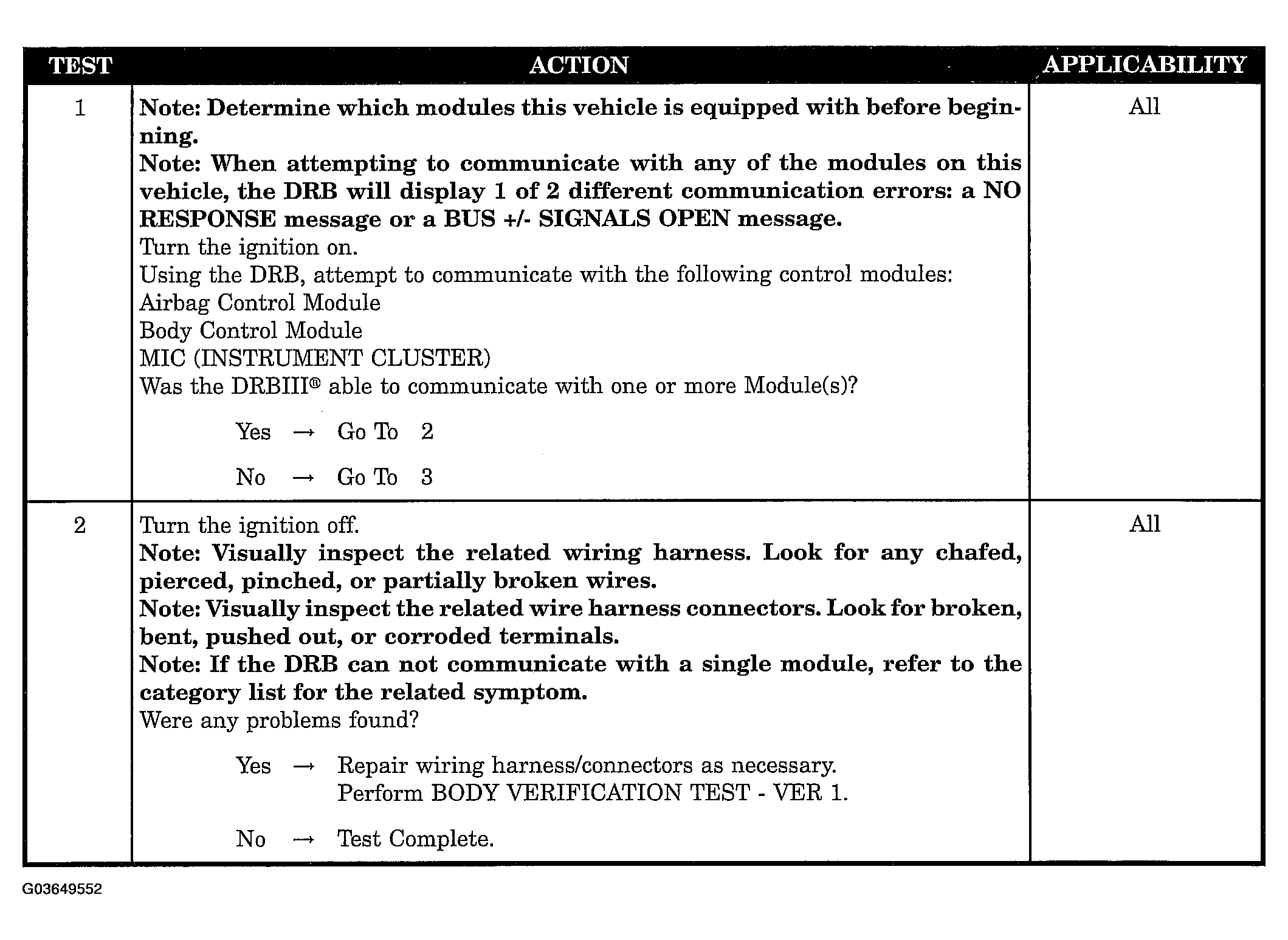

Fig 1: Diagnostic Chart - PCI BUS Communication Failure (1 Of 3)
G03649552Courtesy of DAIMLERCHRYSLER CORP.

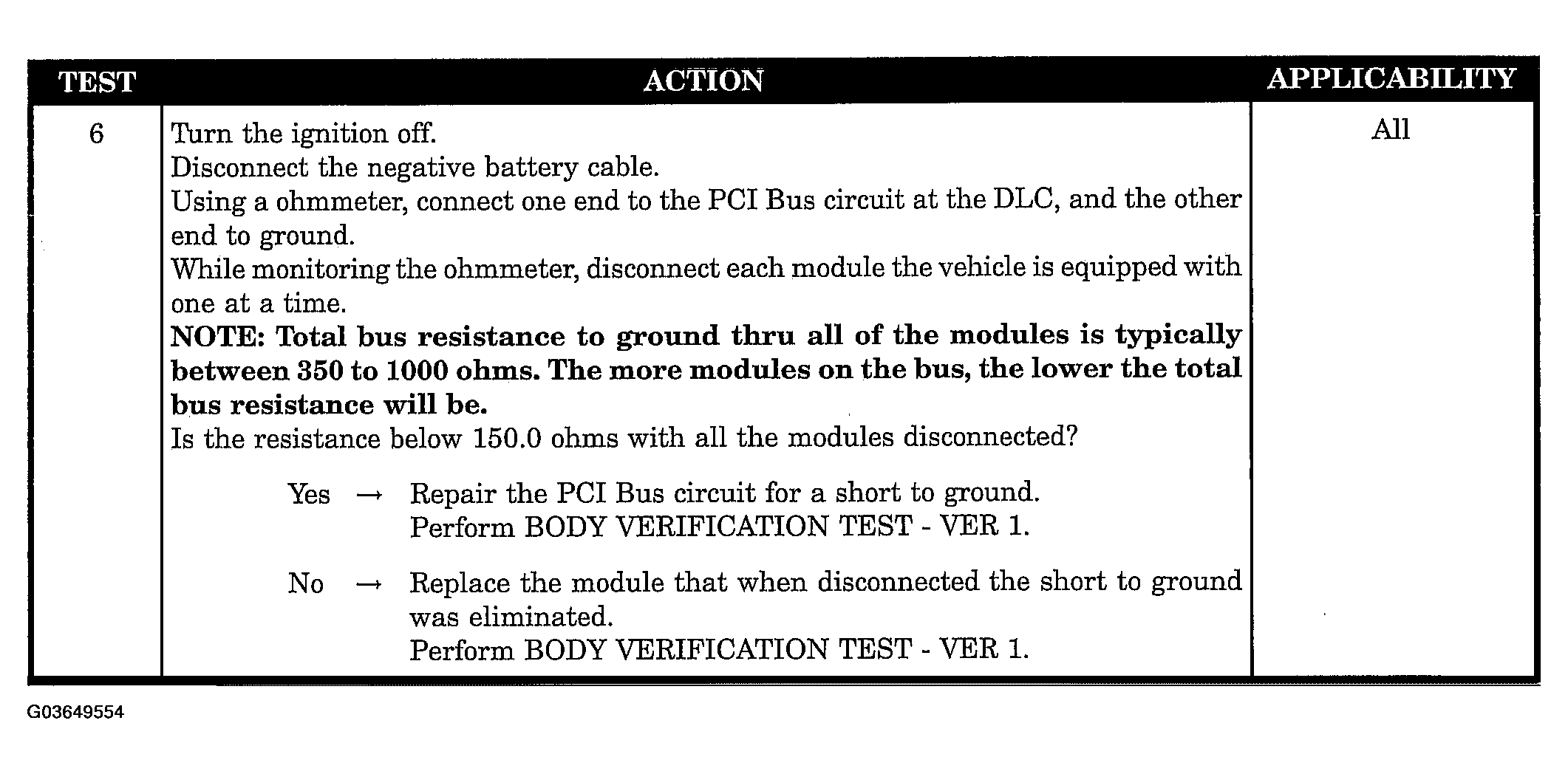

Fig 2: Diagnostic Chart - PCI BUS Communication Failure (2 Of 3)
G03649553Courtesy of DAIMLERCHRYSLER CORP.

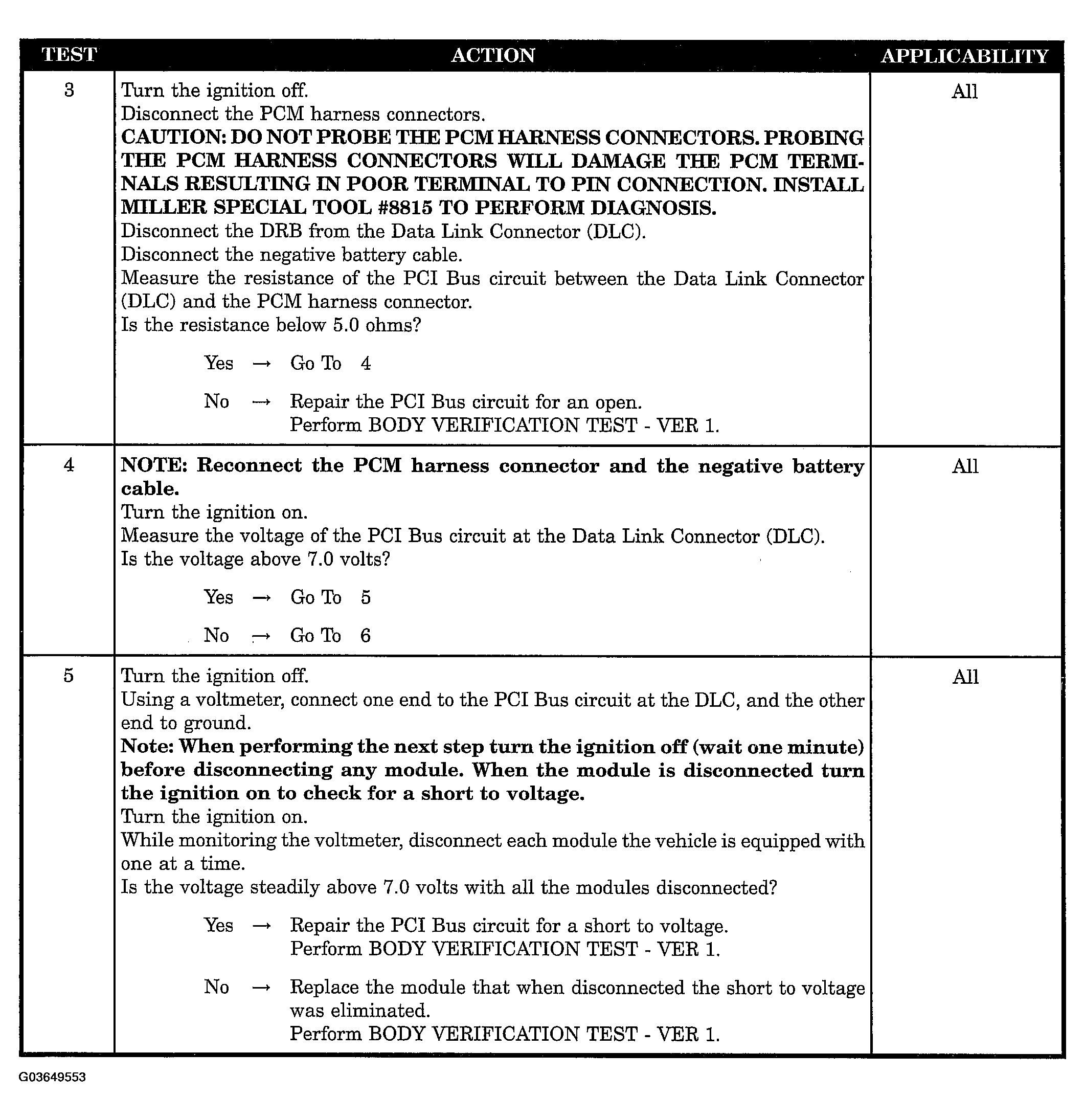

Fig 3: Diagnostic Chart - PCI BUS Communication Failure (3 Of 3)
G03649554Courtesy of DAIMLERCHRYSLER CORP.
