Short Runner Valve Solenoid Connector End View

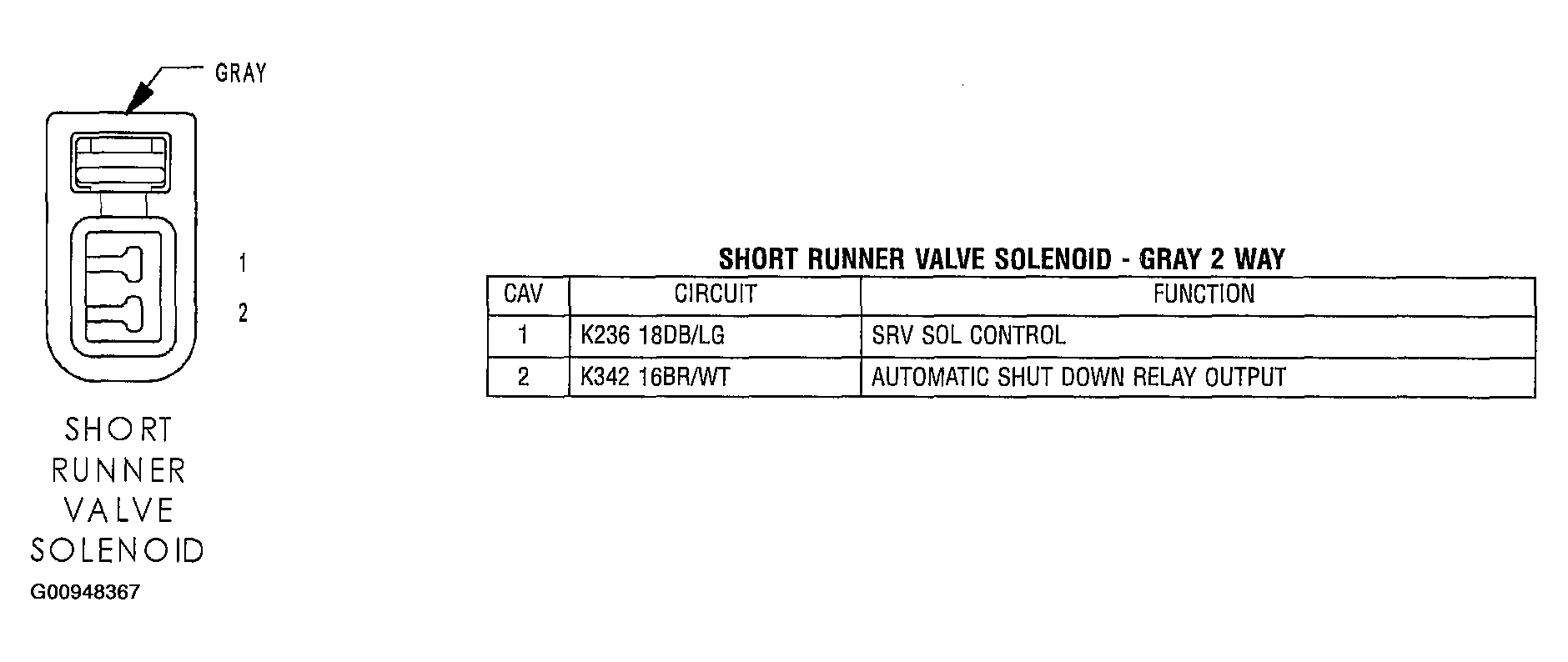

Fig 1: Identifying Short Runner Valve Solenoid - Gray 2 Way Connector

G00948367

Courtesy of DAIMLERCHRYSLER CORP.
