Manifold Tuning Valve Solenoid Connector End View

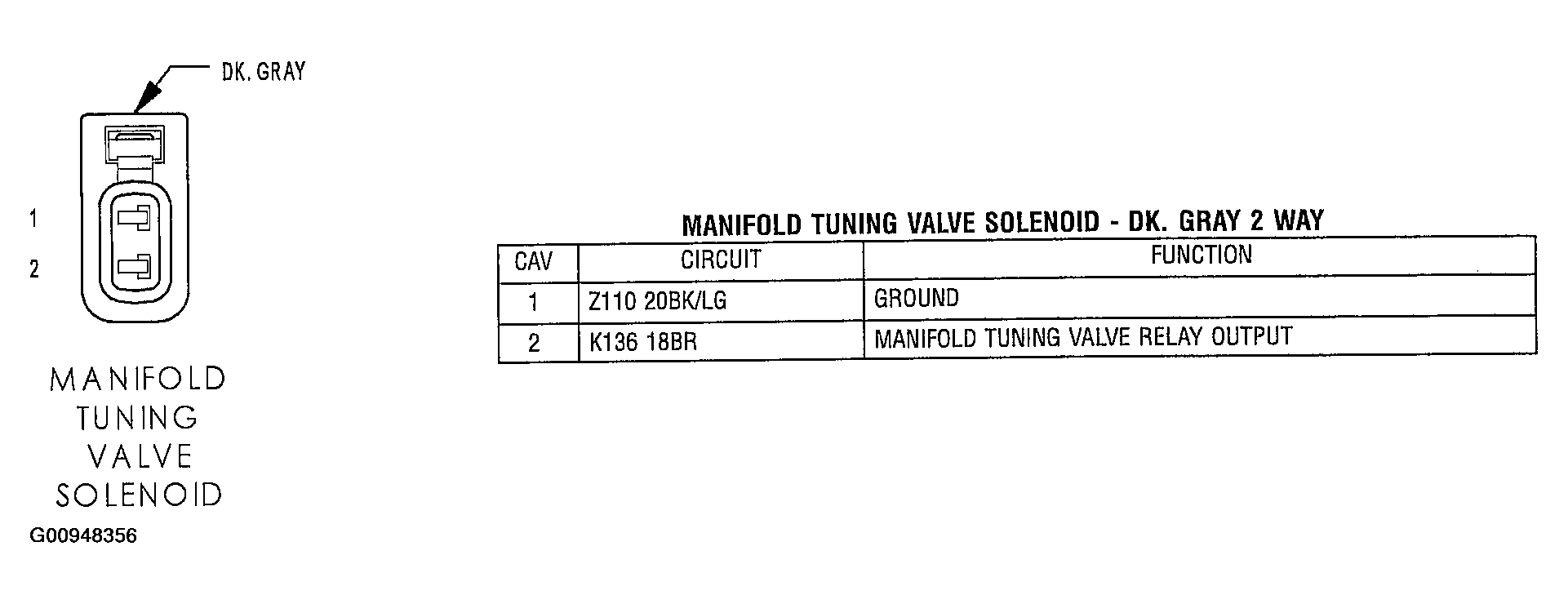

Fig 1: Identifying Manifold Tuning Valve Solenoid - DK. Gray 2 Way Connector

G00948356

Courtesy of DAIMLERCHRYSLER CORP.
