EVAP/Purge Solenoid Connector End Views

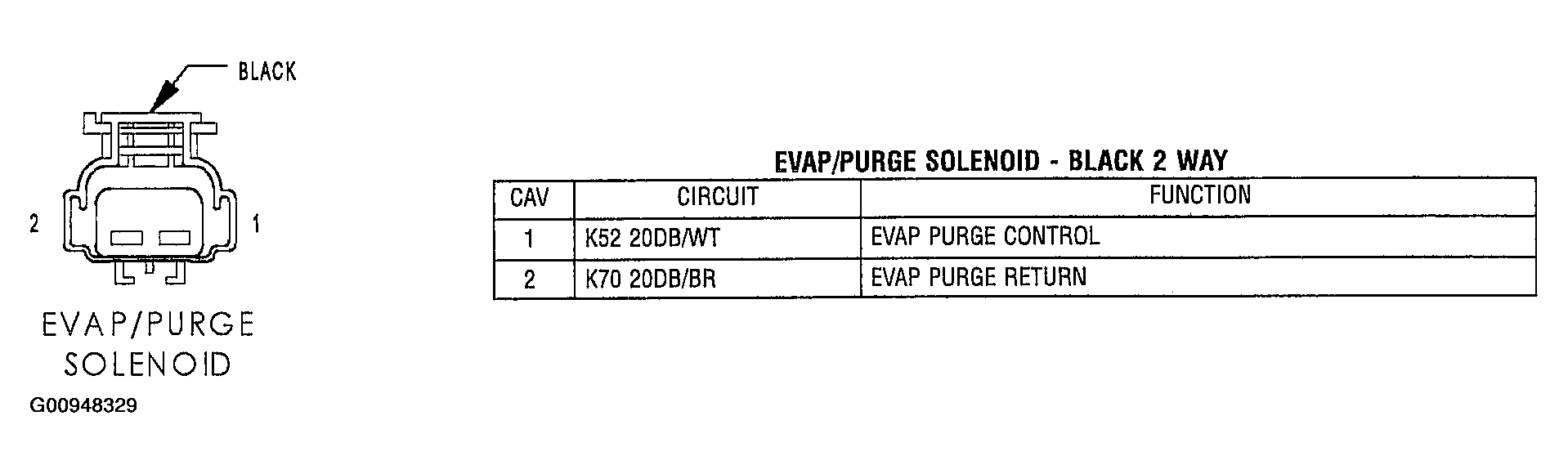

Fig 1: Identifying EVAP/PURGE Solenoid - Black 2 Way Connector

G00948329

Courtesy of DAIMLERCHRYSLER CORP.
