Fuel Tank Filler Tube: Installation

  1. Install the filler tube.
  2. Install 3 screws from filler neck to quarter panel.
  3. Connect the vent line to filler tube.

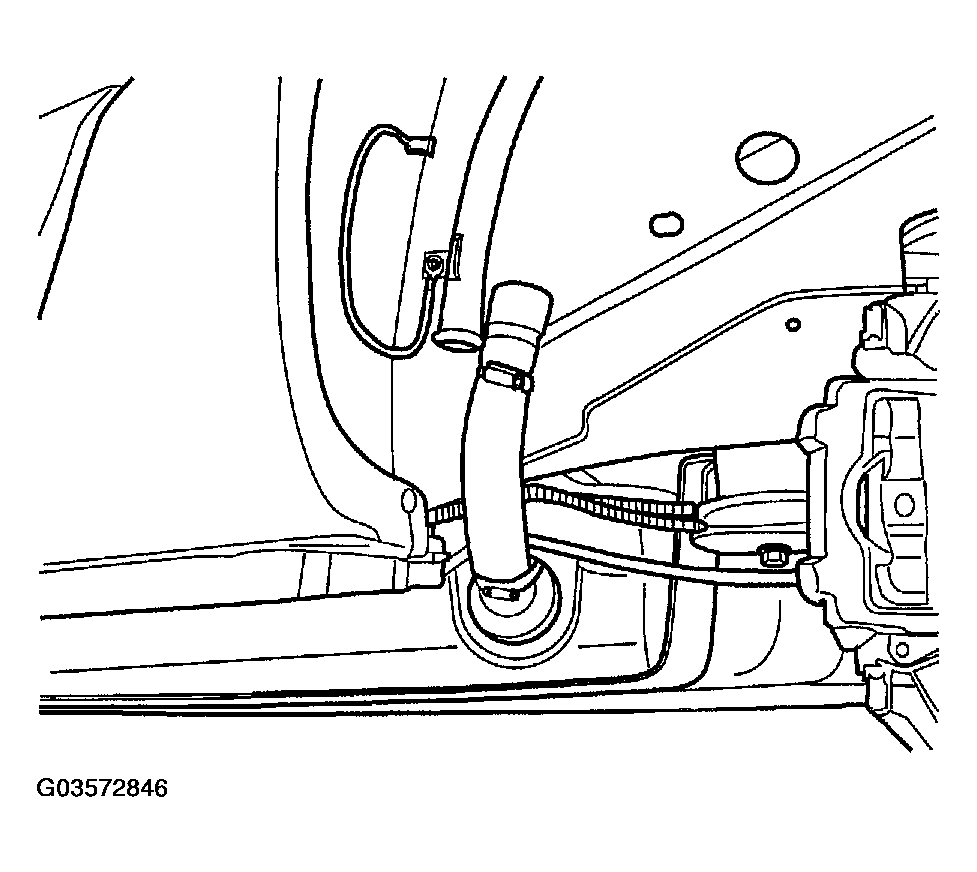

  4. Install the fuel filler tube from the rubber hose at fuel tank (Figure).
  5. Install the left rear tire.
  6. Lower vehicle.
  7. Connect the negative battery cable.
