First Row Seat: Installation

  1. Place first row seat into position in vehicle.
  2. Connect heated seat wire connector.

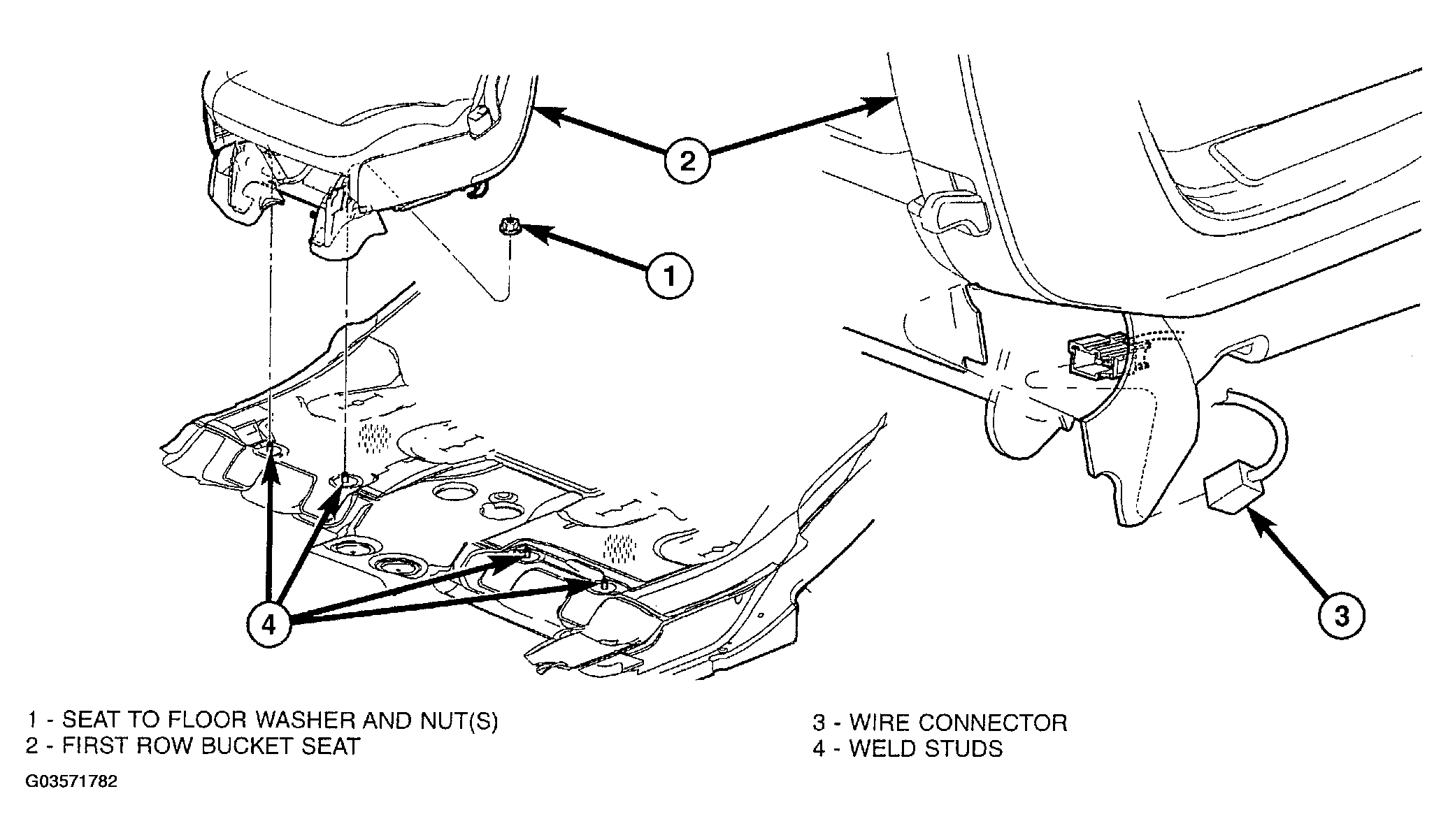

  3. Install two nuts attaching seat to floor pan (Figure ).
  4. Install headrest. (Refer to INSTALLATION  ).
  5. Connect battery negative cable.
