Interior Lighting

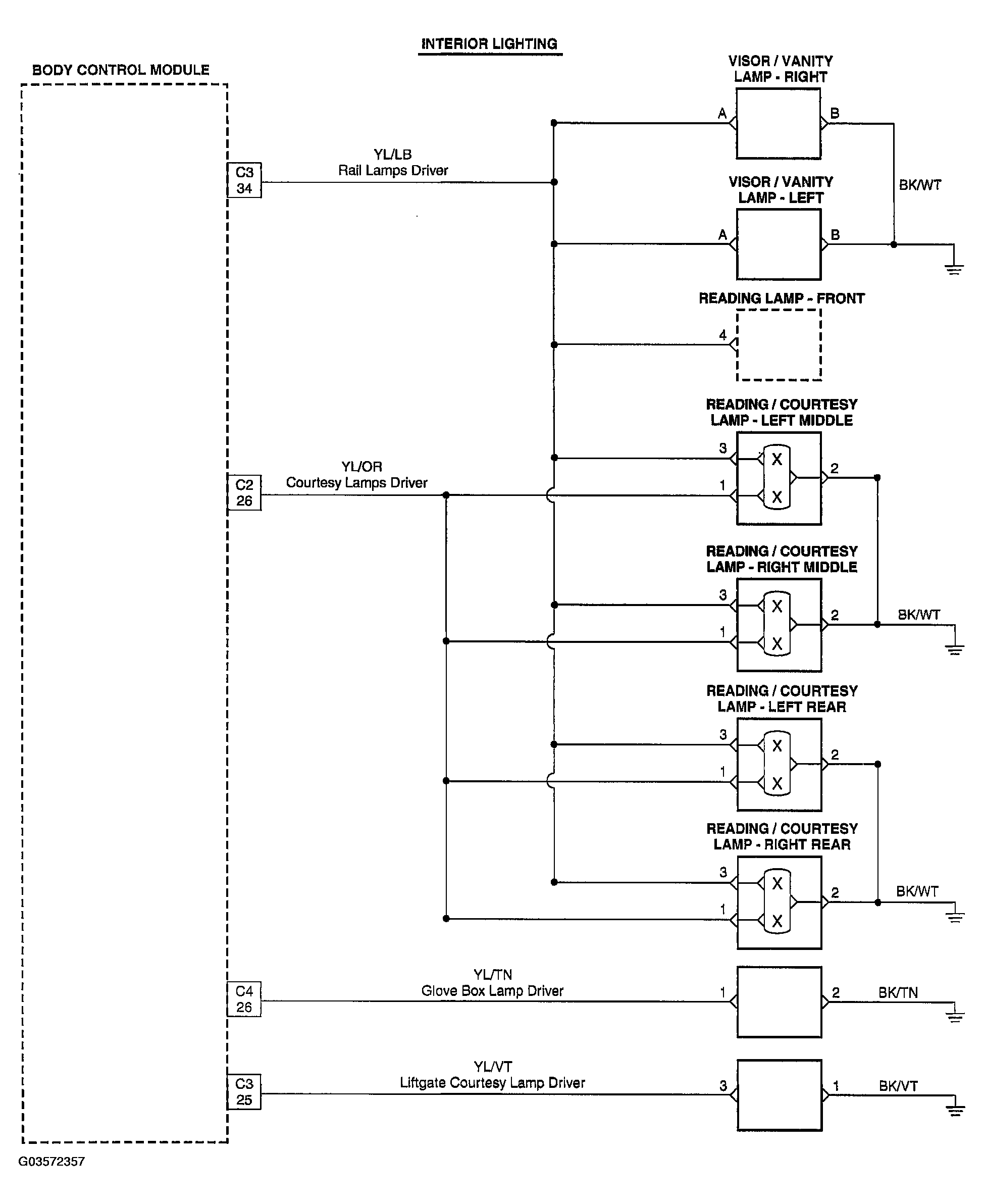

Fig 1: Interior Lighting - Schematic Diagram

G03572357

Courtesy of DAIMLERCHRYSLER CORP.
