Powertrain Control Module C4 - Black/Green 38 Way

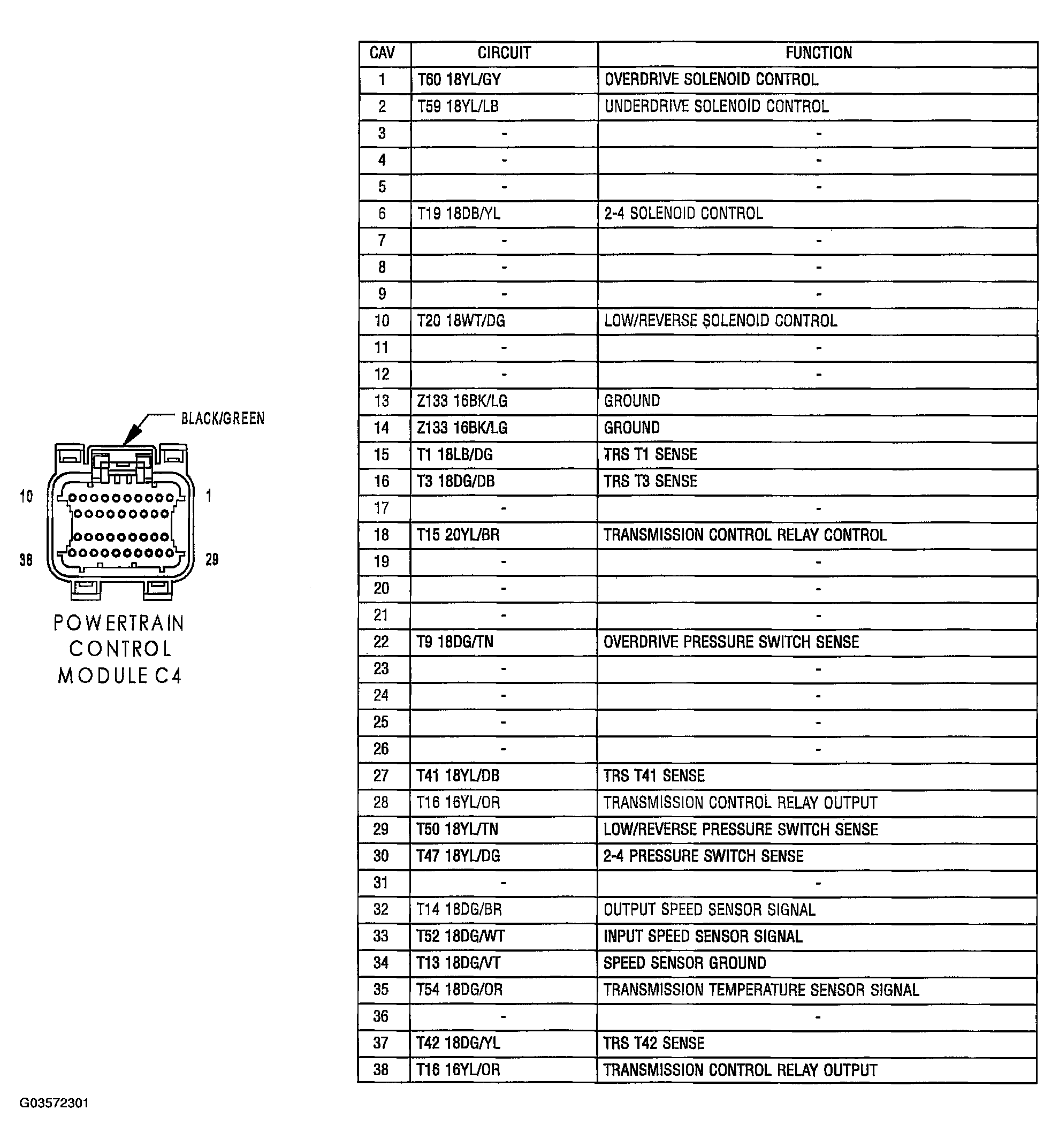

Fig 1: Identifying Powertrain Control Module C4 Connector Terminals And Specification (Black/Green 38 Way)

G03572301

Courtesy of DAIMLERCHRYSLER CORP.
