Powertrain Control Module C2 - Black/Orange 38 Way

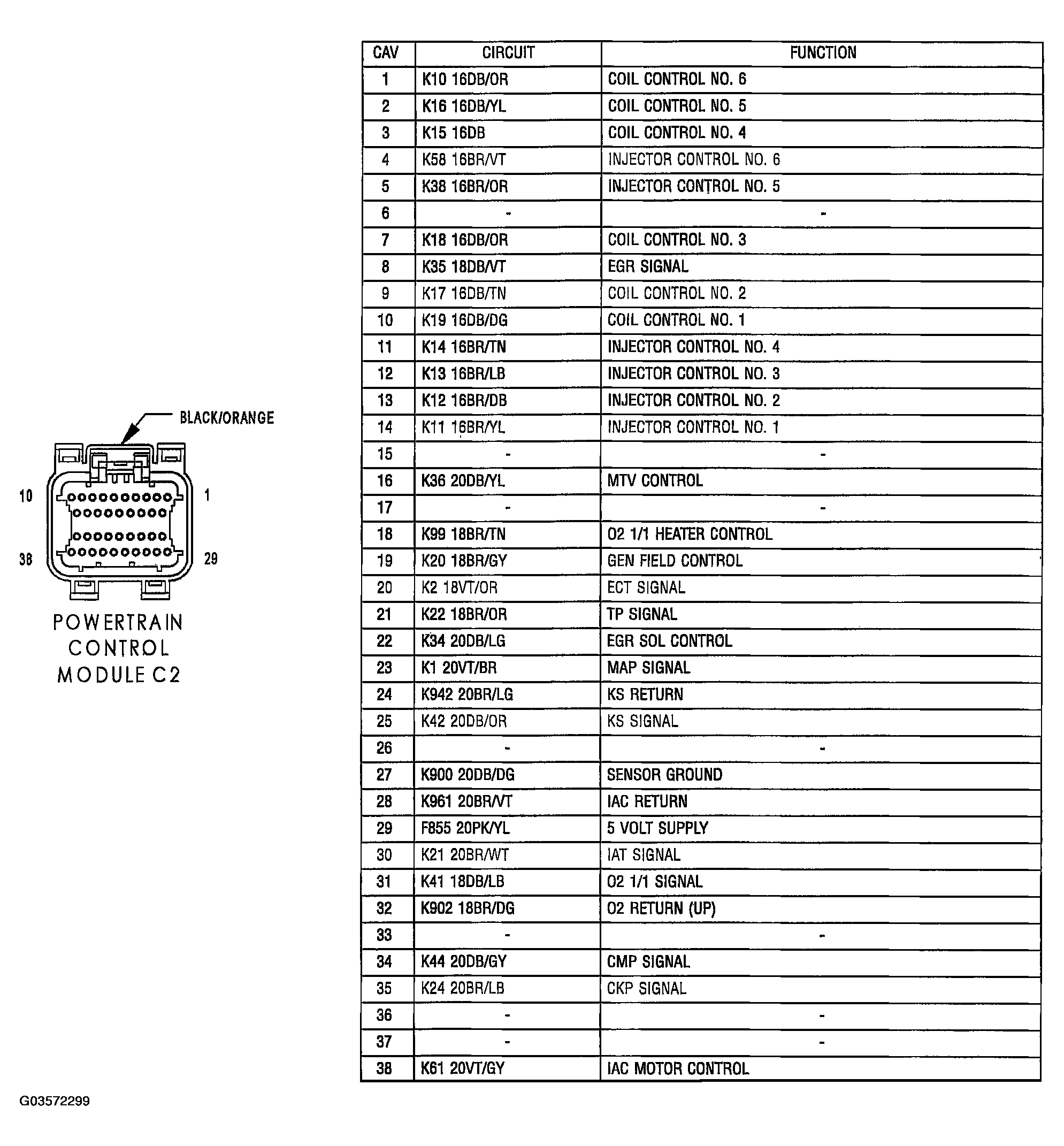

Fig 1: Identifying Powertrain Control Module C2 Connector Terminals And Specification (Black/Orange 38 Way)

G03572299

Courtesy of DAIMLERCHRYSLER CORP.
