Pacifica AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Body, Cab Control Systems
>>
Body Diagnostic Procedures - Component Locations
>>
Connector PINOUTS
>>
Navigation Module - Black 16 Way
Navigation Module - Black 16 Way

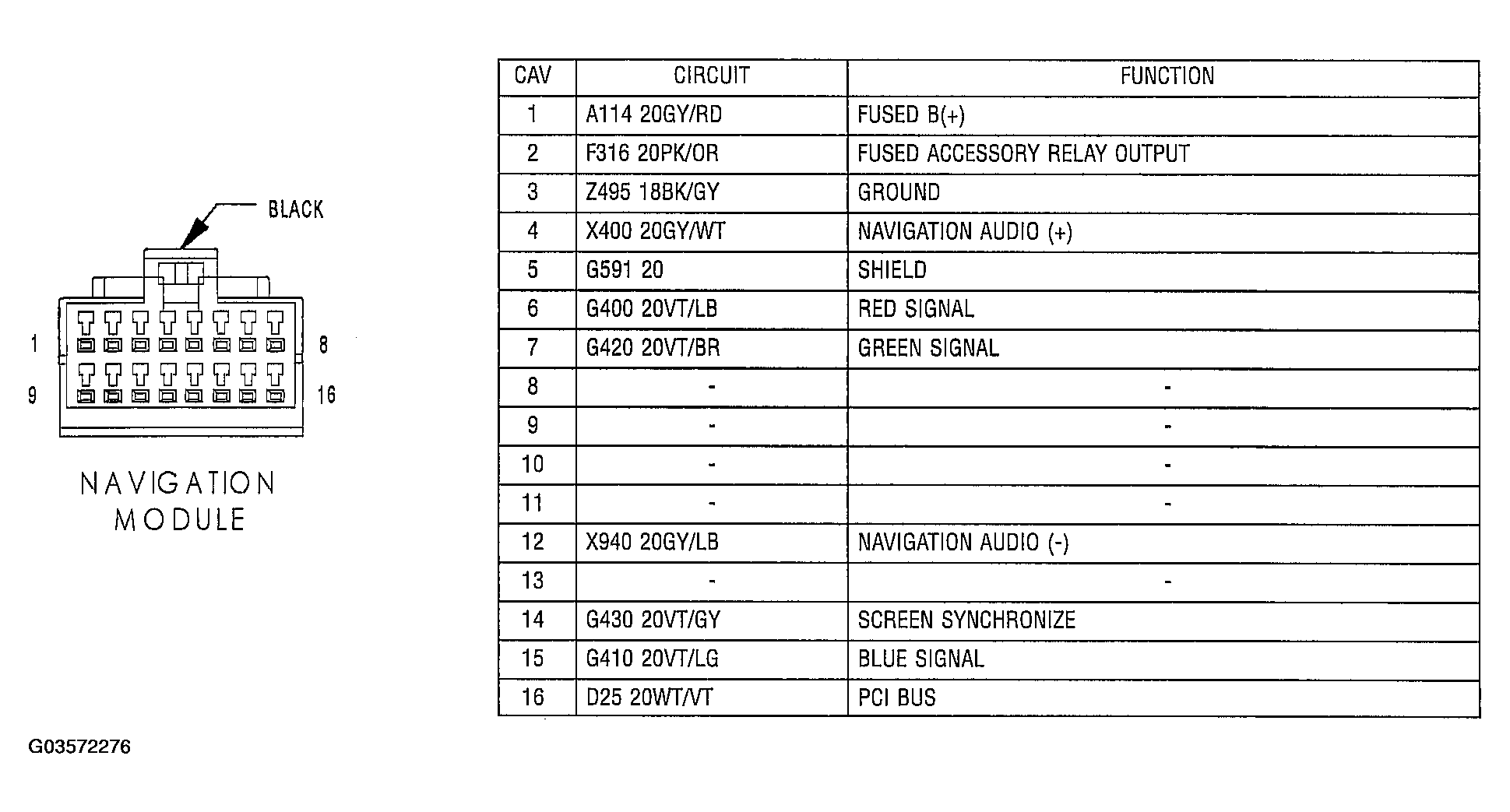

Fig 1: Identifying Navigation Module Connector Terminals And Specification (Black 16 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
