Passenger Door Power Lock Motor/Ajar Switch Connector End View

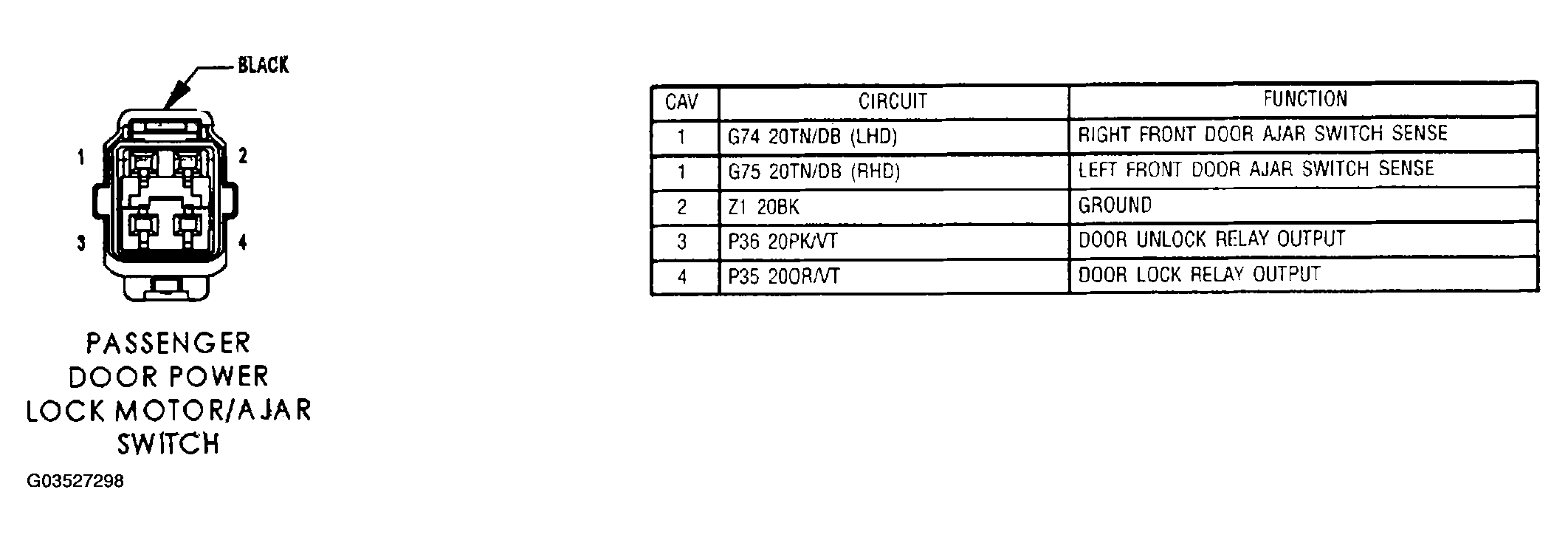

Fig 1: Passenger Door Power Lock Motor/Ajar Switch Connector End View

G03527298

Courtesy of DAIMLERCHRYSLER CORP.
