C202 (LHD) Connector End View

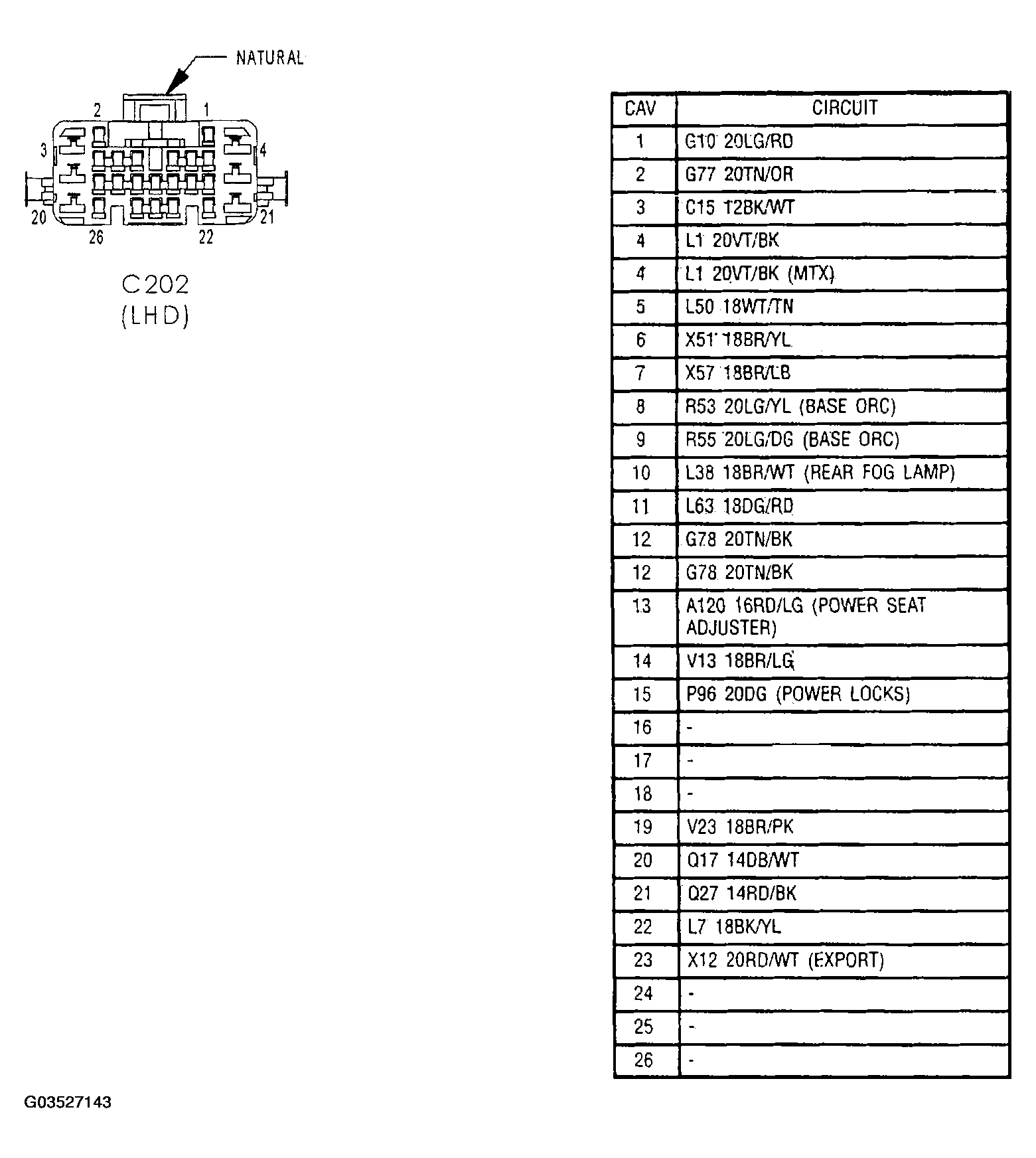

Fig 1: Instrument Panel Side (LHD) Inline Connector End View (C202)
G03527143Courtesy of DAIMLERCHRYSLER CORP.

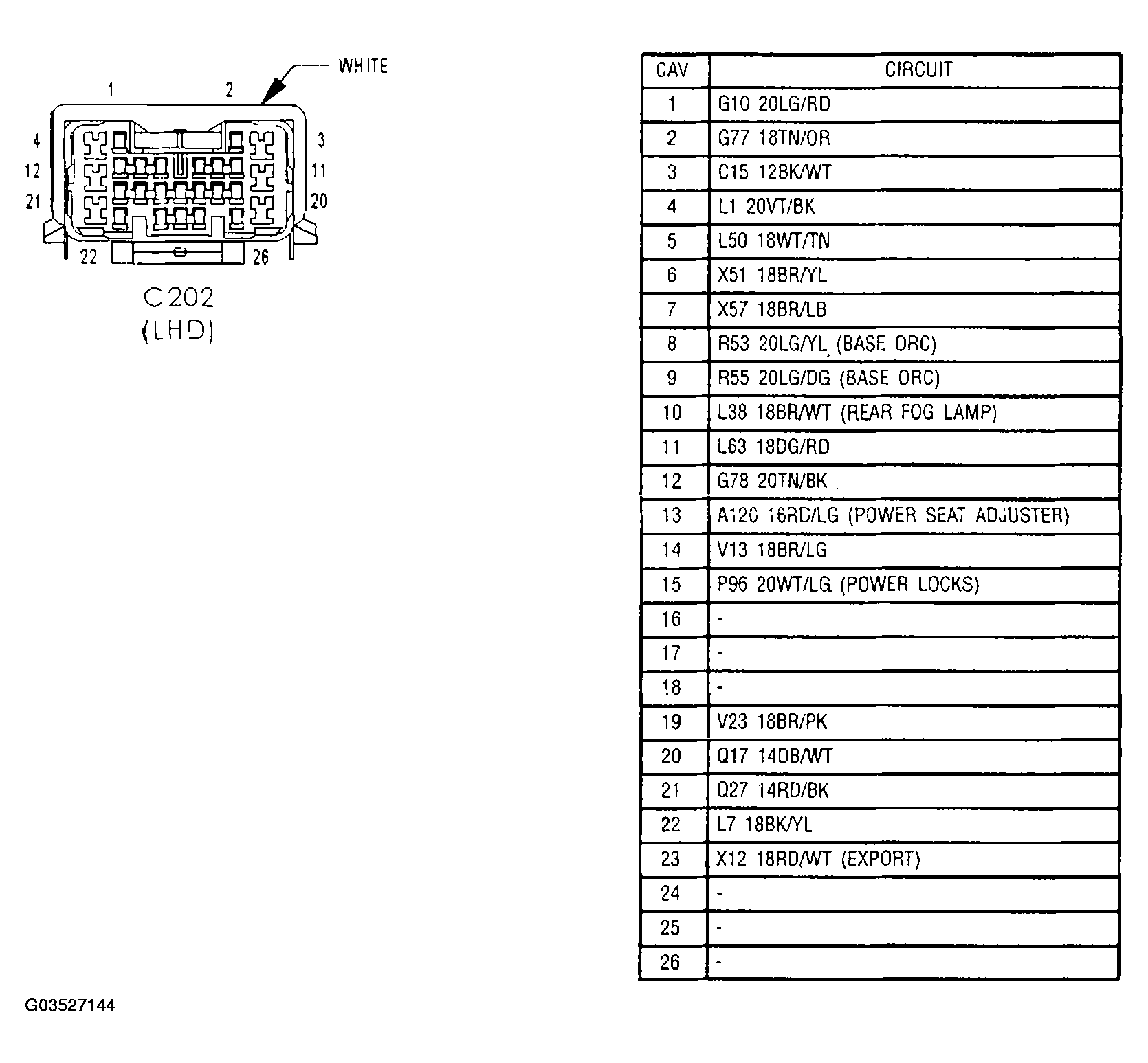

Fig 1: Left Body Side (LHD) Inline Connector End View (C202)
G03527144Courtesy of DAIMLERCHRYSLER CORP.
