*Checking Hard Start (Fuel Delivery System): Testing

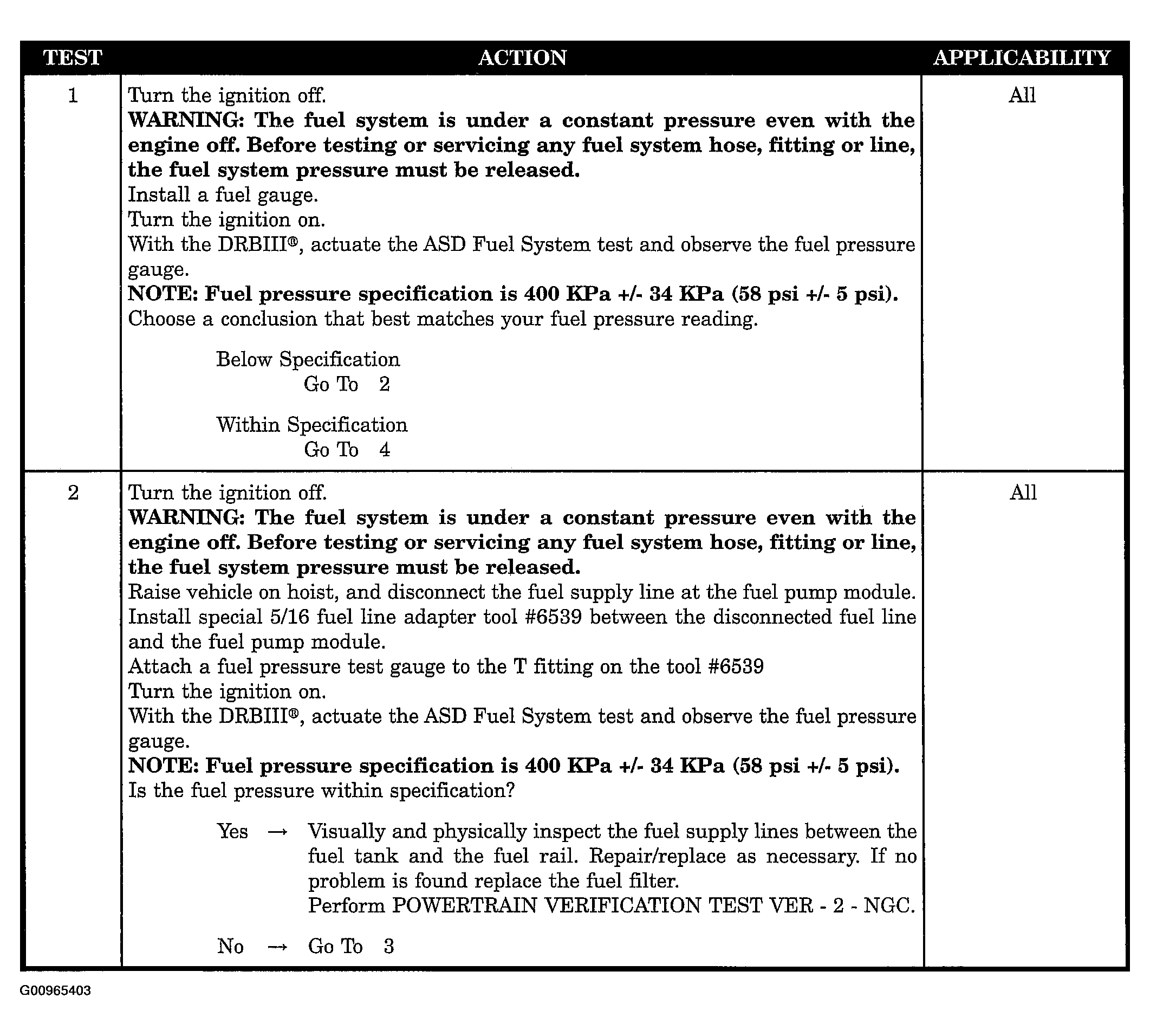

Fig 1: Testing: Checking Hard Start (Fuel Delivery System) - 1 Of 2
G00965403Courtesy of DAIMLERCHRYSLER CORP.

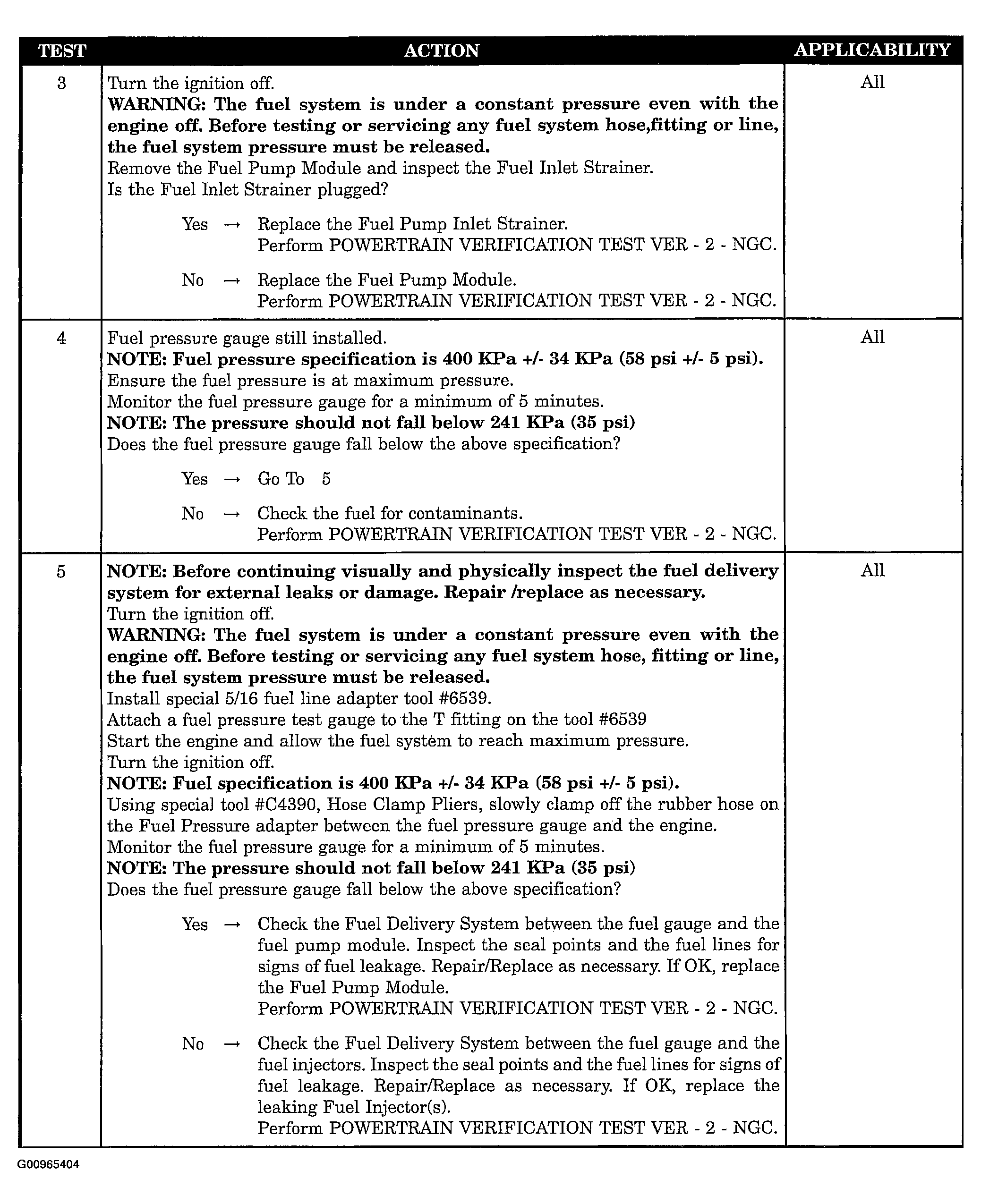

Fig 2: Testing: Checking Hard Start (Fuel Delivery System) - 2 Of 2
G00965404Courtesy of DAIMLERCHRYSLER CORP.
