Rolling Code Failure Or VIN Mismatch: Testing

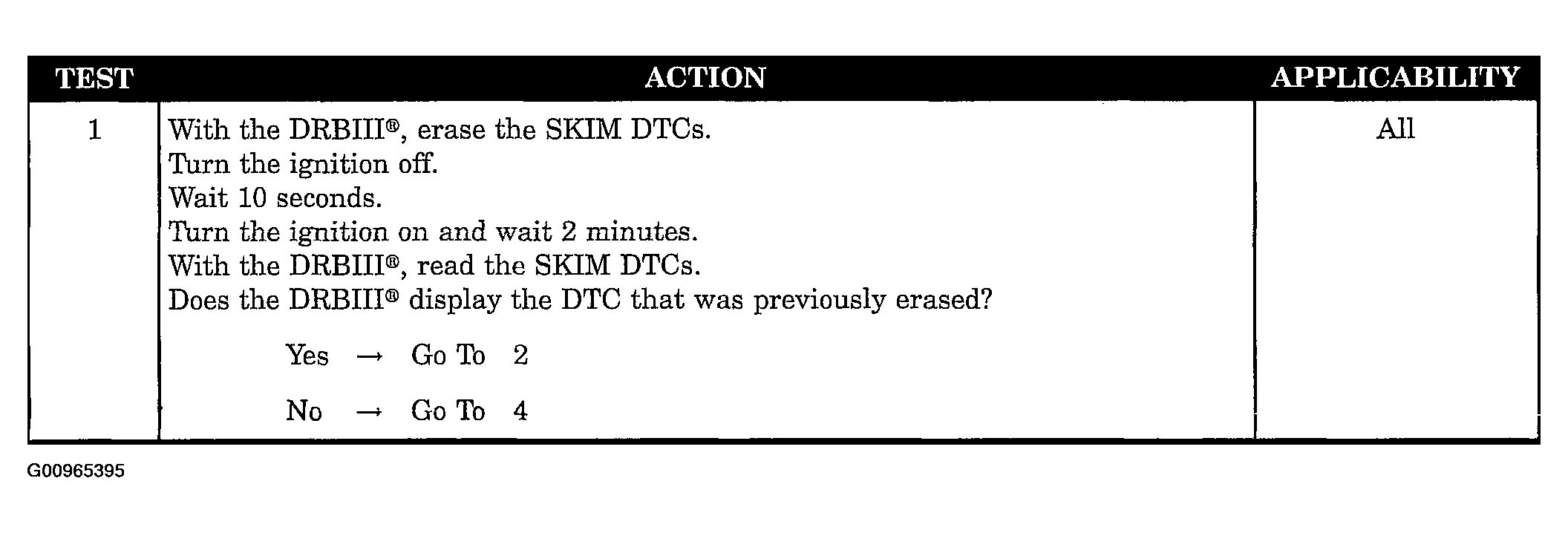

Fig 1: Testing: Rolling Code Failure (1 Of 2)
G00965395Courtesy of DAIMLERCHRYSLER CORP.

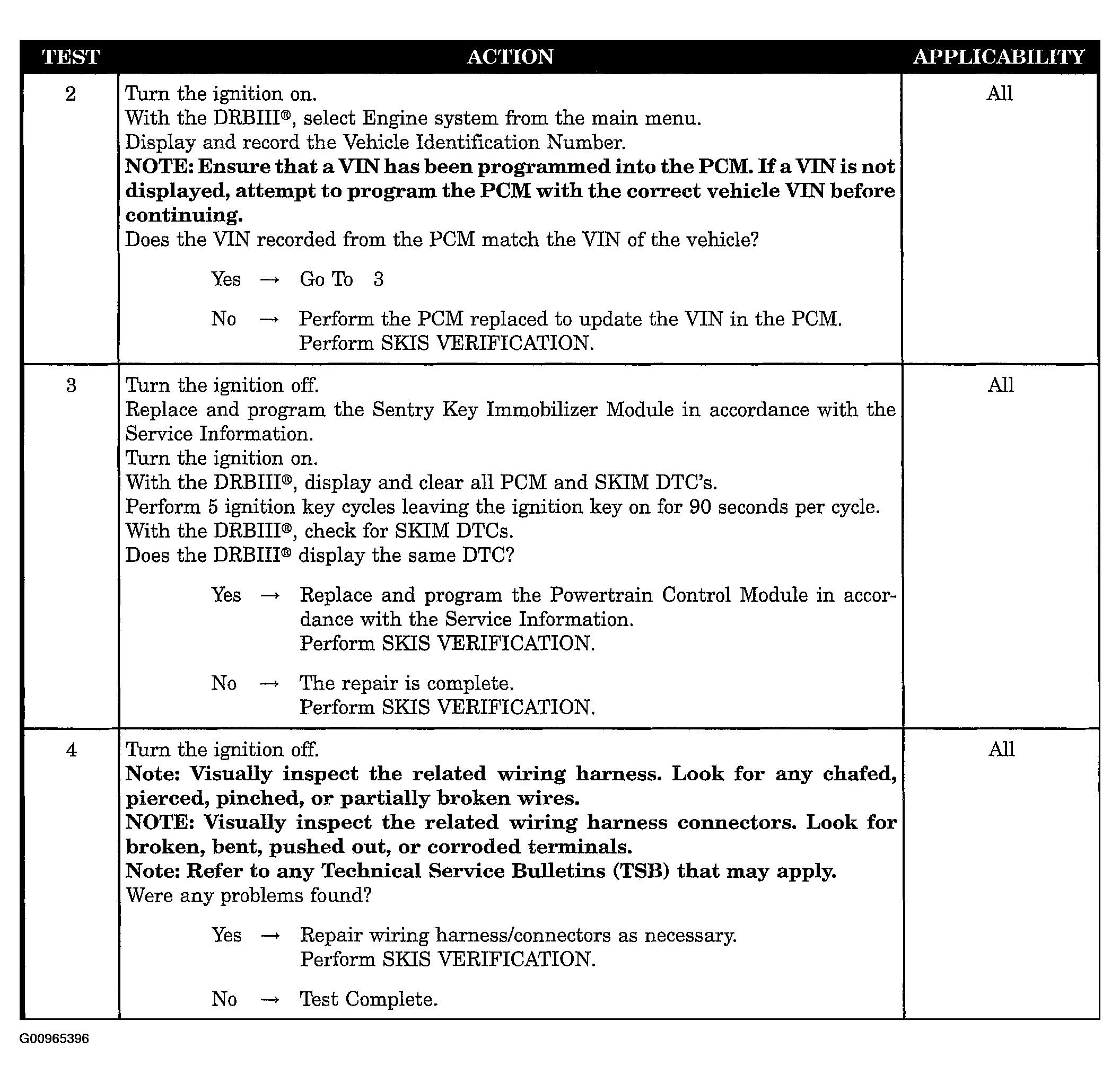

Fig 2: Testing: Rolling Code Failure (2 Of 2)
G00965396Courtesy of DAIMLERCHRYSLER CORP.
