Home >> Chrysler >> 2004 >> PT Cruiser Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Electronic Diagnostics >> Diagnostic Information & Procedures >> DRIVEABILITY - NGC >> DTC P1602: Pcm Not Programmed >> Testing

DTC P1602: Pcm Not Programmed: Testing

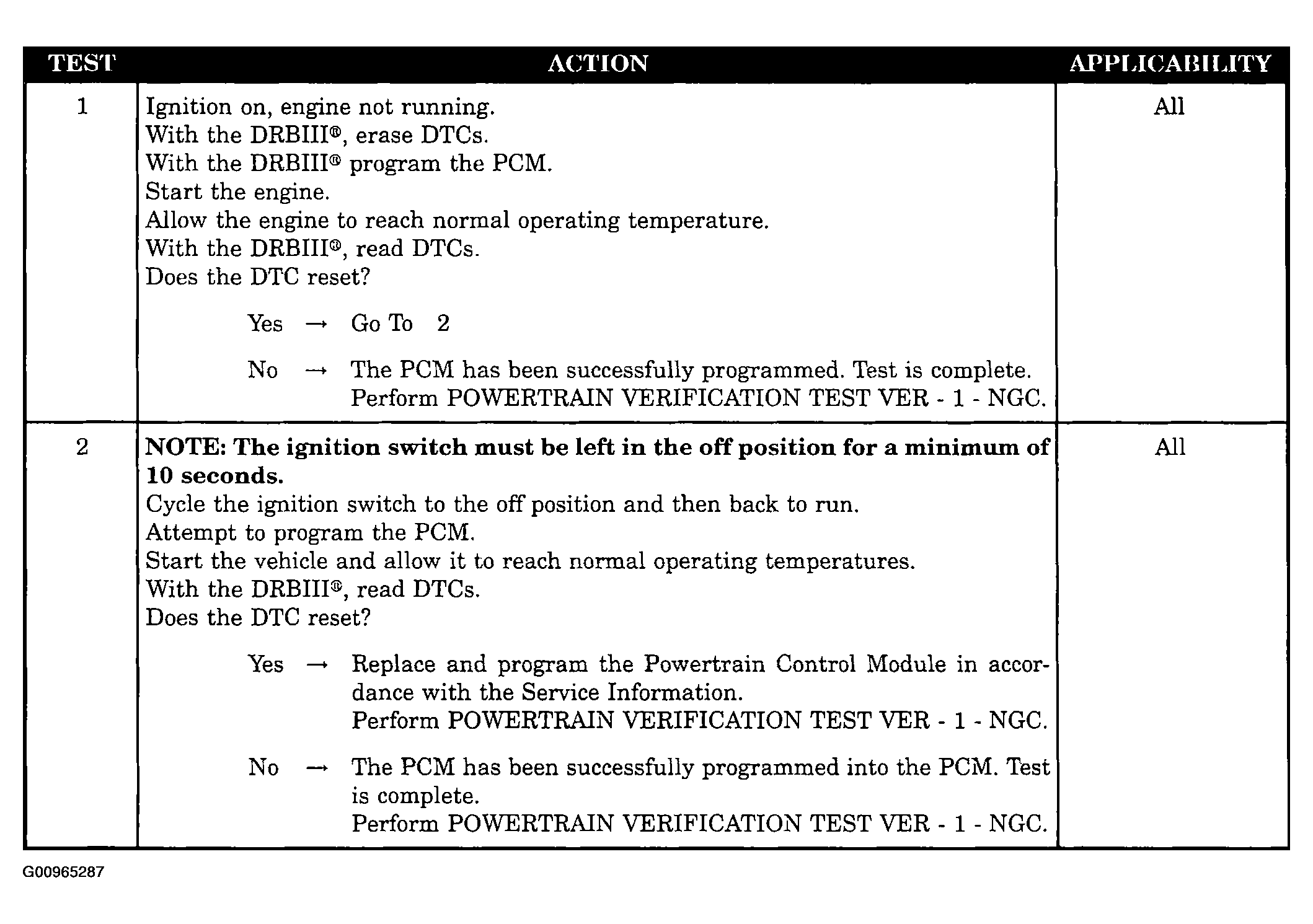

Fig 1: Testing: PCM Not Programmed

G00965287

Courtesy of DAIMLERCHRYSLER CORP.
