DTC P0685: ASD Relay Control Circuit: Testing

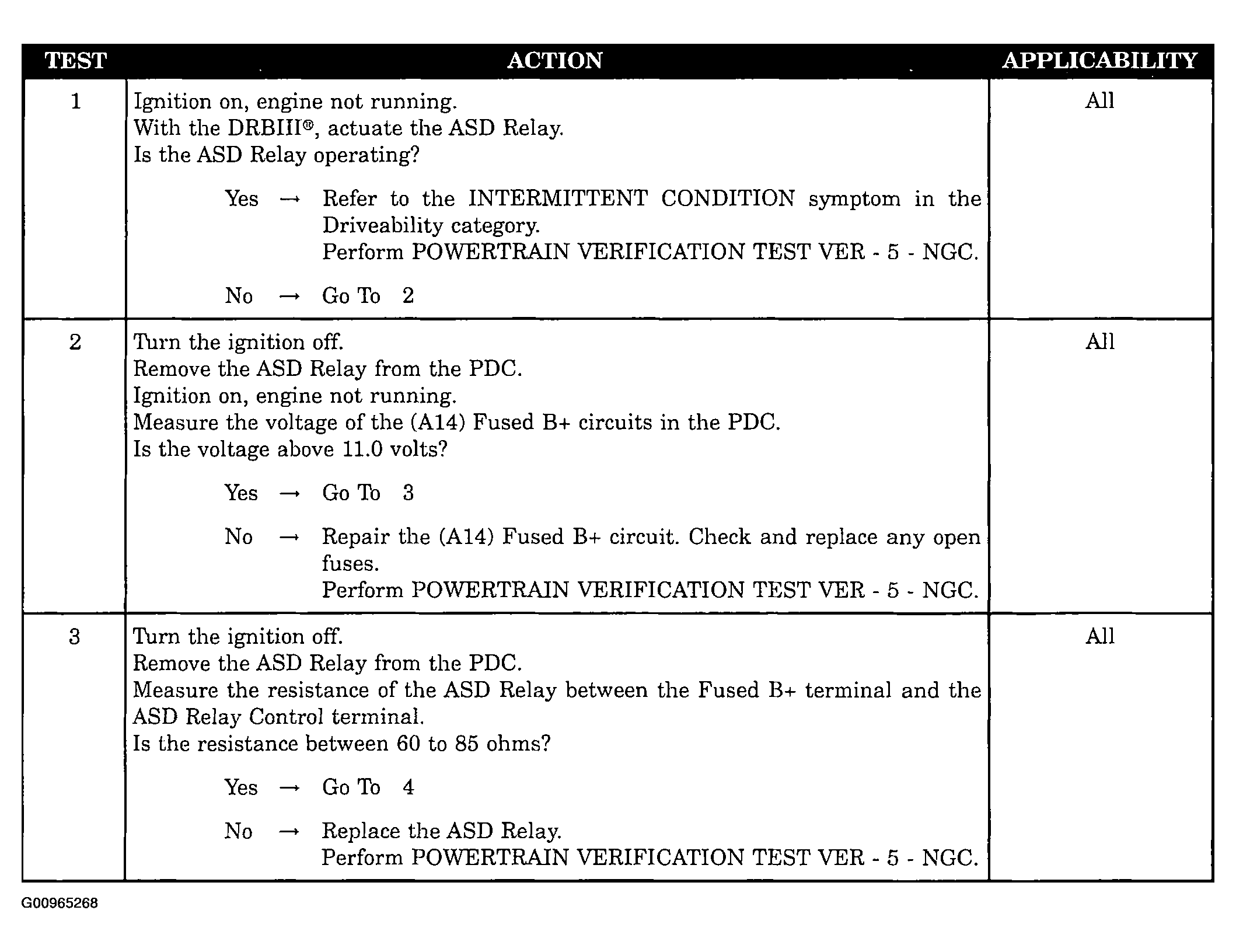

Fig 1: Testing: ASD Relay Control Circuit (1 Of 2)
G00965268Courtesy of DAIMLERCHRYSLER CORP.

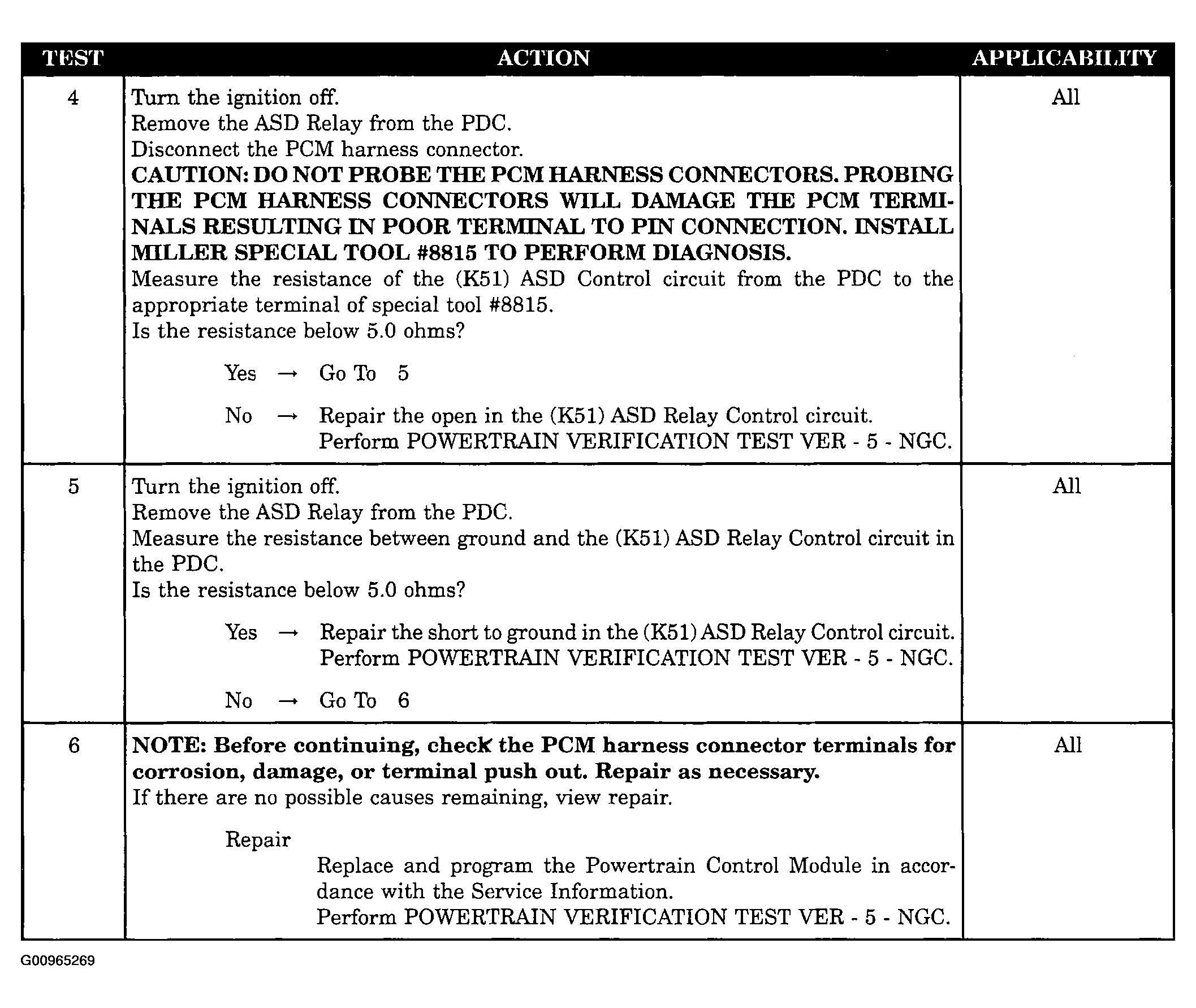

Fig 2: Testing: ASD Relay Control Circuit (2 Of 2)
G00965269Courtesy of DAIMLERCHRYSLER CORP.
