DTC P0622: Generator Field Control Circuit: Testing

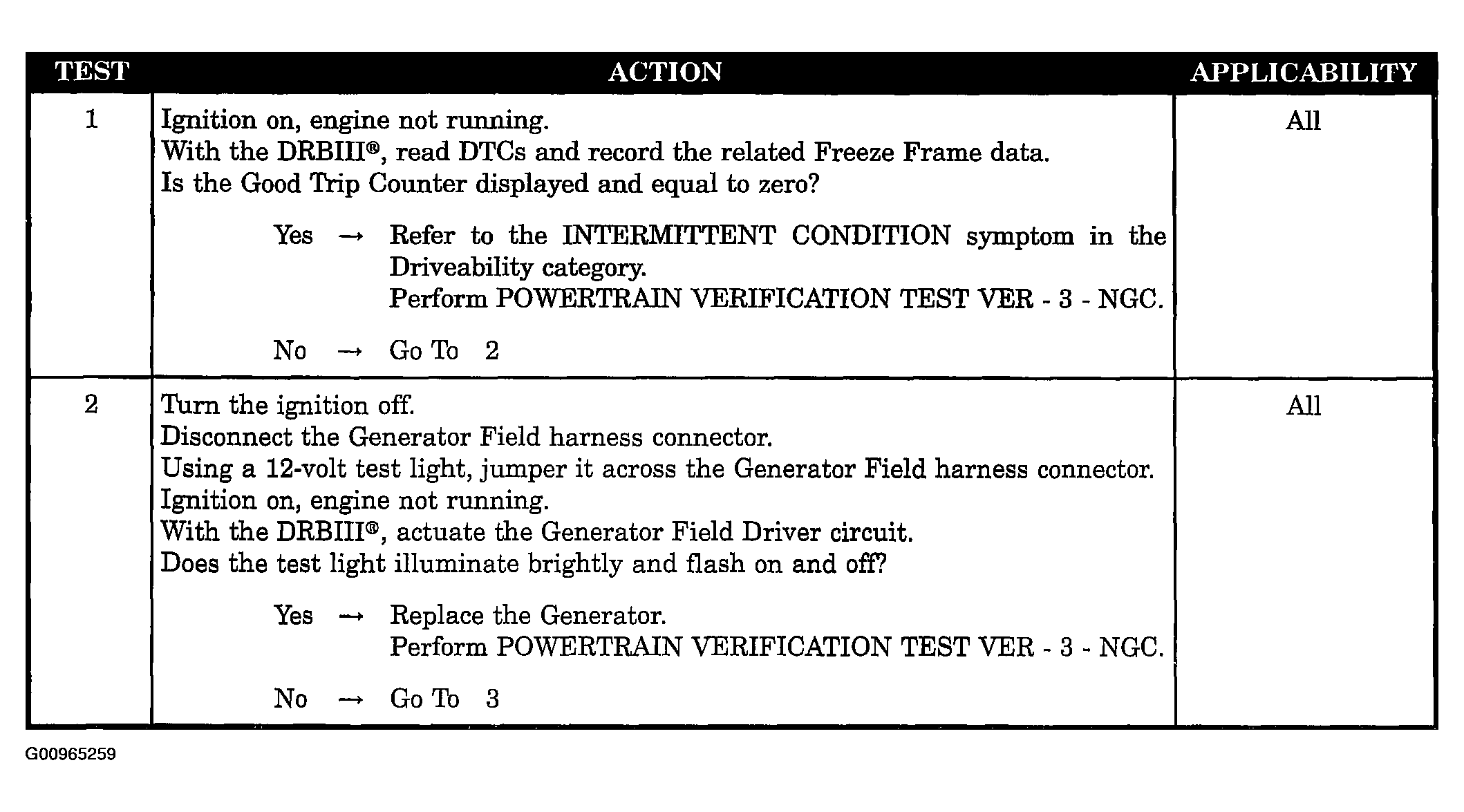

Fig 1: Testing: Generator Field Control Circuit (1 Of 2)
G00965259Courtesy of DAIMLERCHRYSLER CORP.

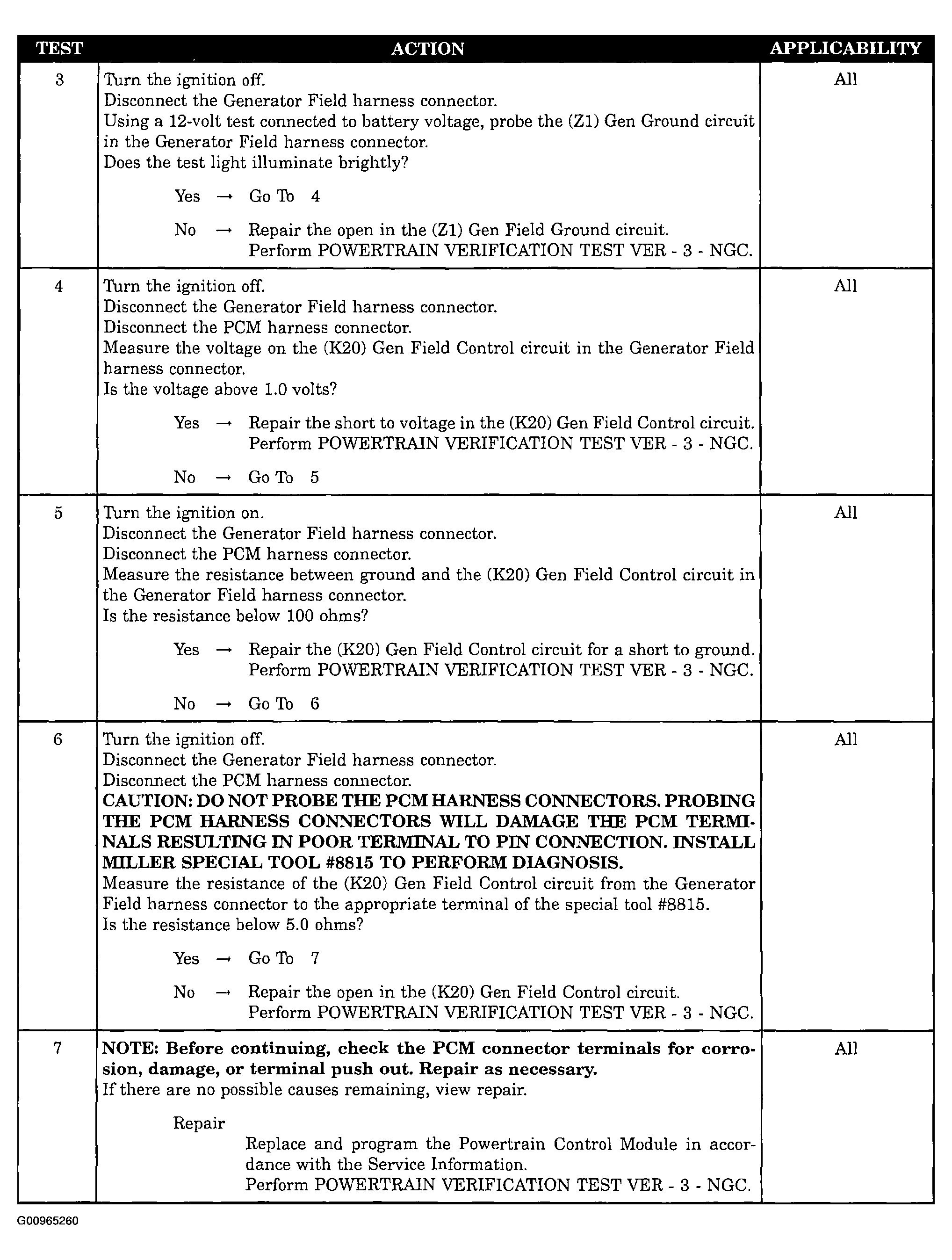

Fig 2: Testing: Generator Field Control Circuit (2 Of 2)
G00965260Courtesy of DAIMLERCHRYSLER CORP.
