DTC P0108: Map Sensor High: Testing

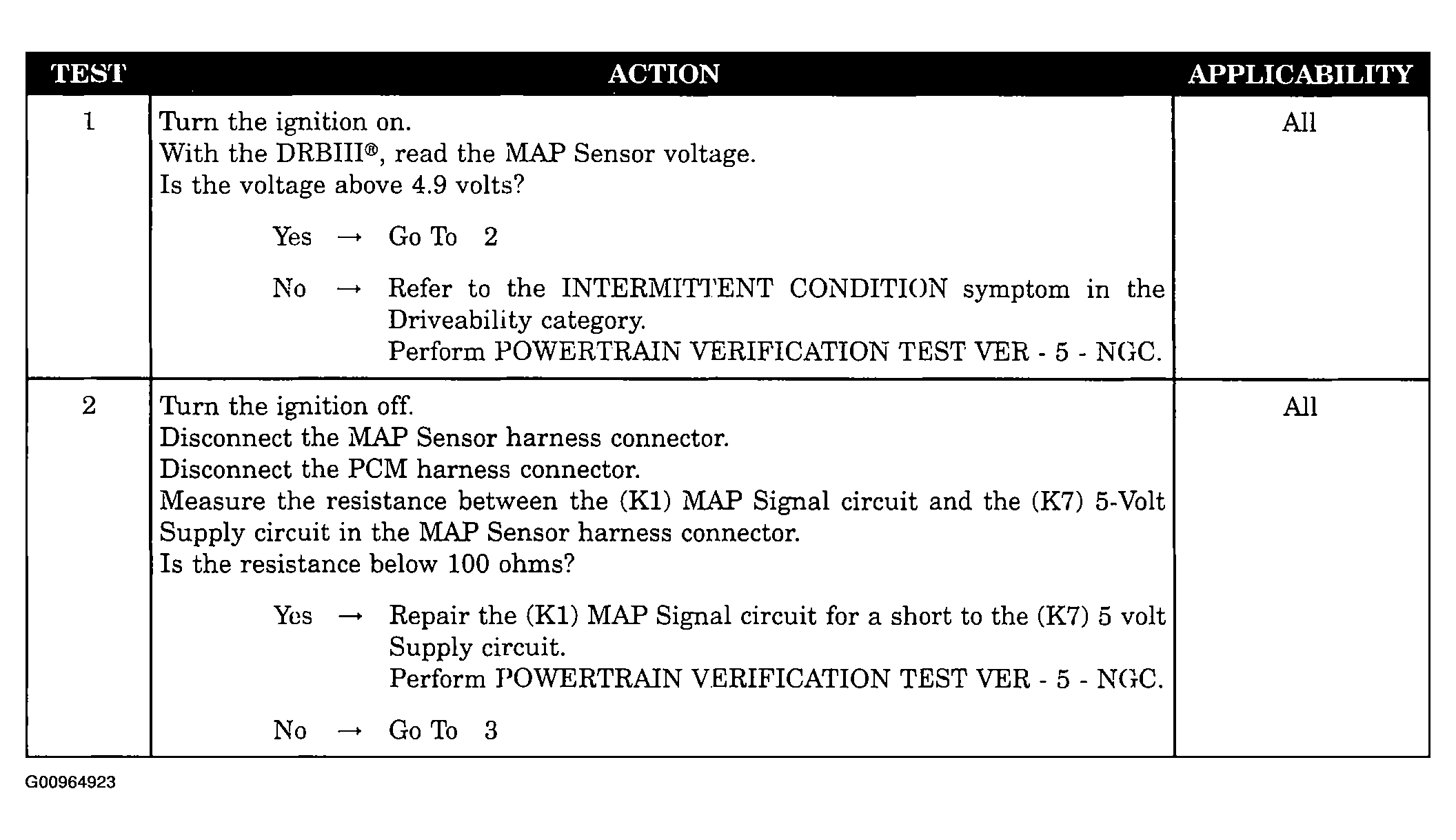

Fig 1: Testing: MAP Sensor High (1 Of 3)
G00964923Courtesy of DAIMLERCHRYSLER CORP.

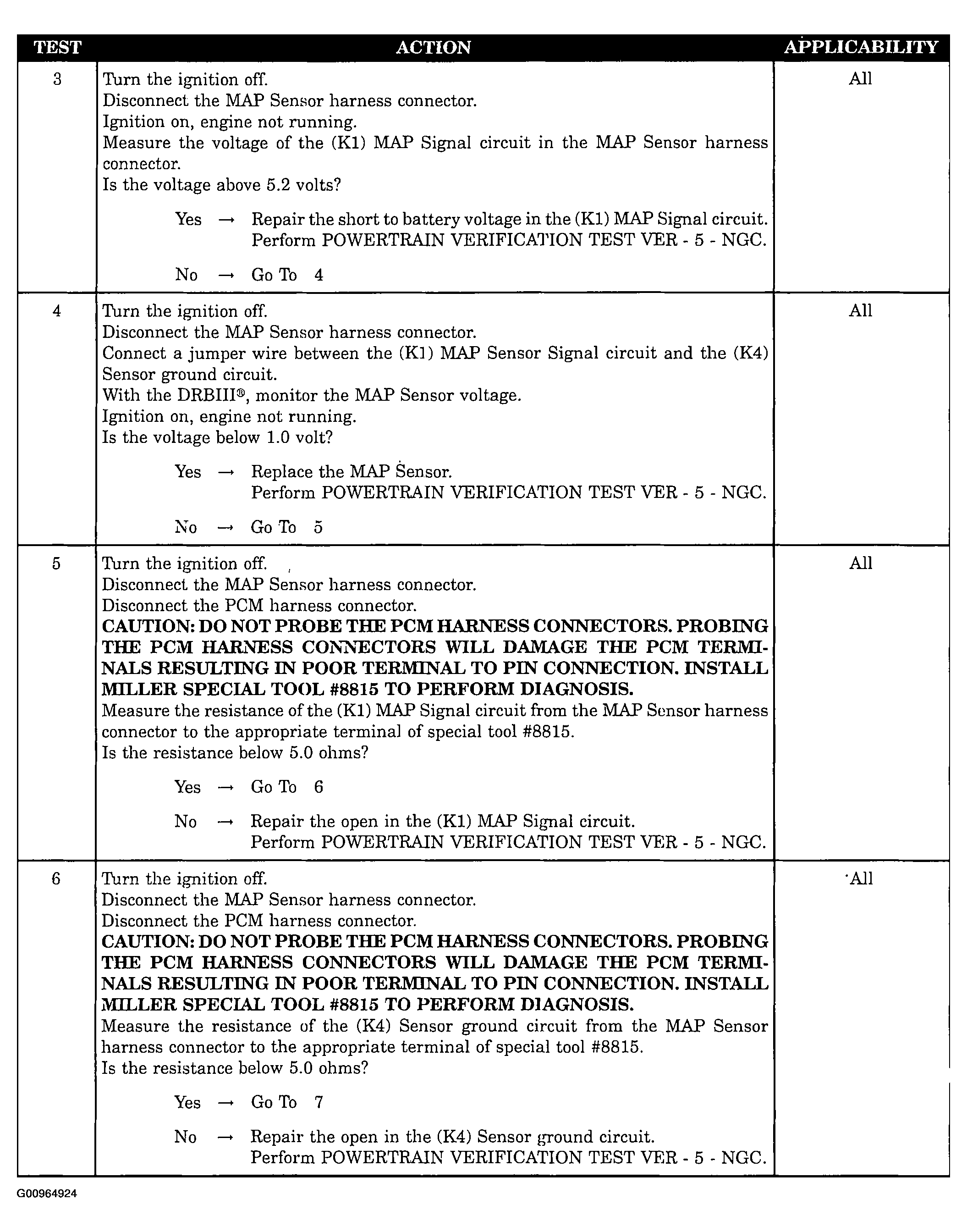

Fig 2: Testing: MAP Sensor High (2 Of 3)
G00964924Courtesy of DAIMLERCHRYSLER CORP.

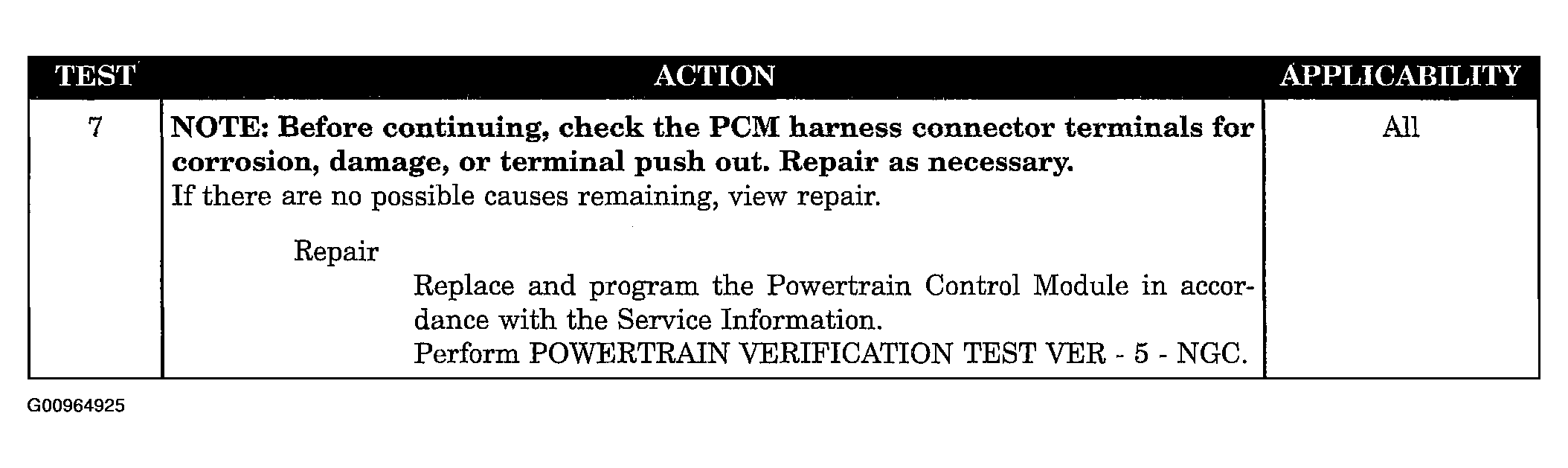

Fig 3: Testing: MAP Sensor High (3 Of 3)
G00964925Courtesy of DAIMLERCHRYSLER CORP.
