DTC P0107: Map Sensor Low: Testing

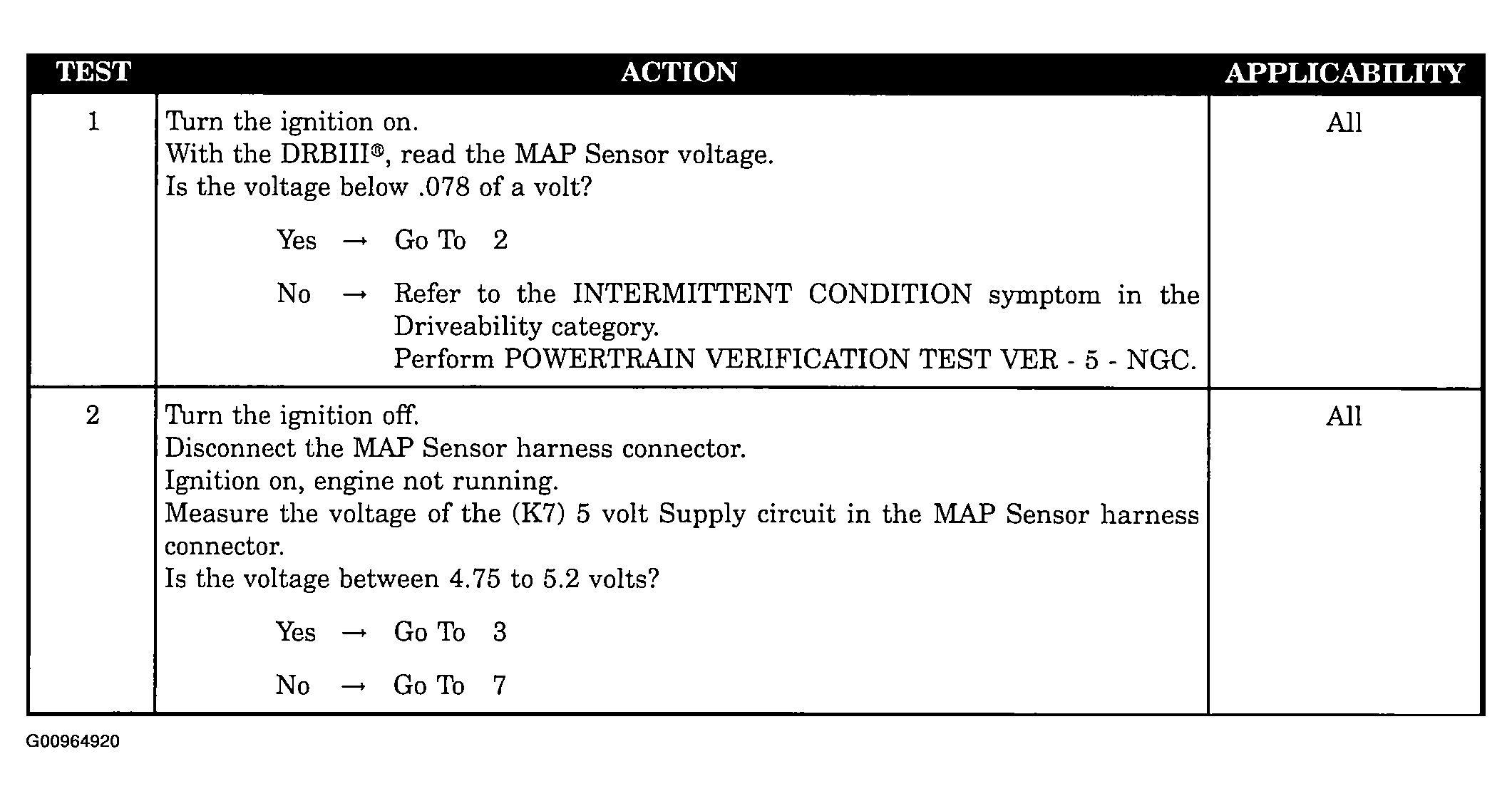

Fig 1: Testing: MAP Sensor Low (1 Of 3)
G00964920Courtesy of DAIMLERCHRYSLER CORP.

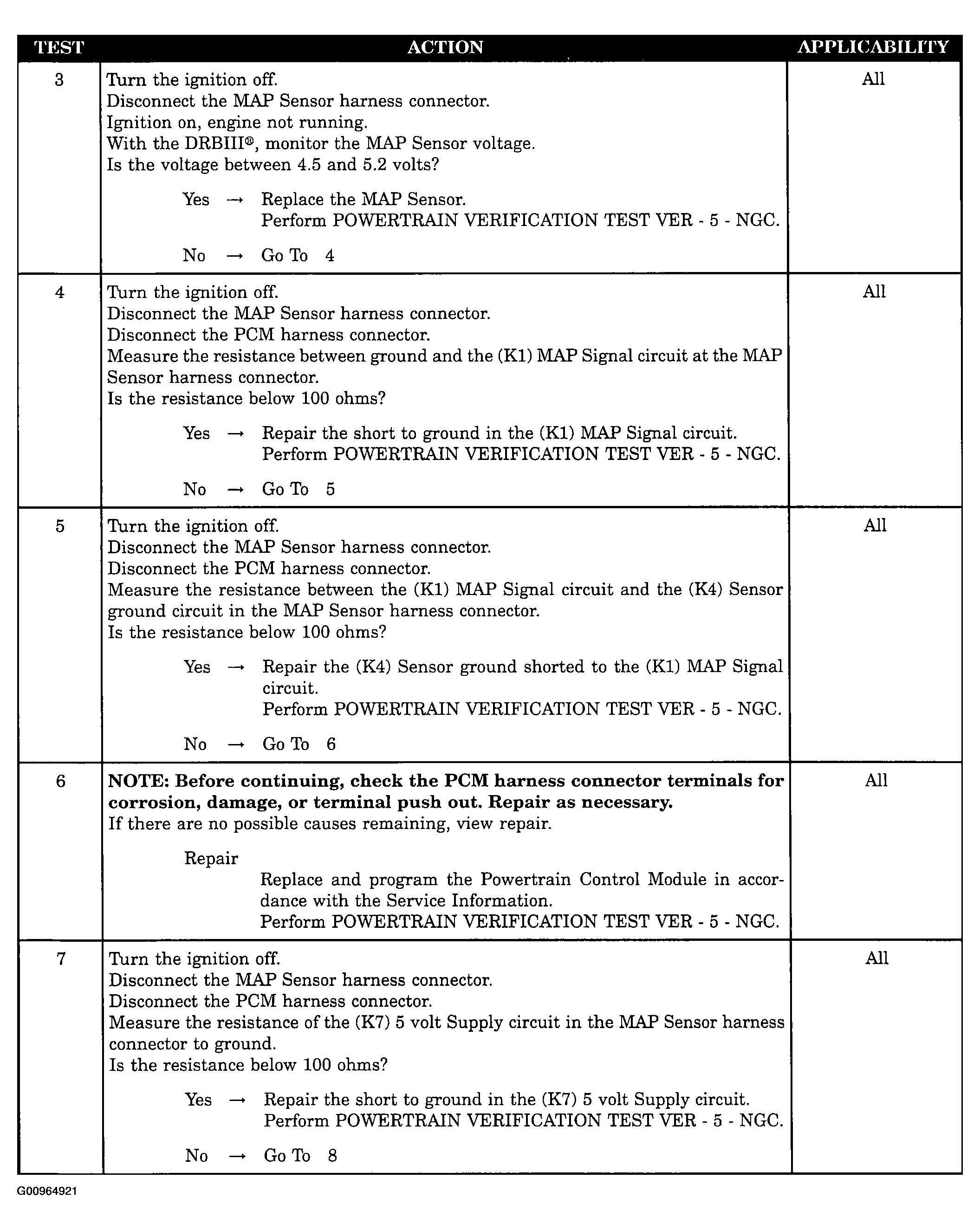

Fig 2: Testing: MAP Sensor Low (2 Of 3)
G00964921Courtesy of DAIMLERCHRYSLER CORP.

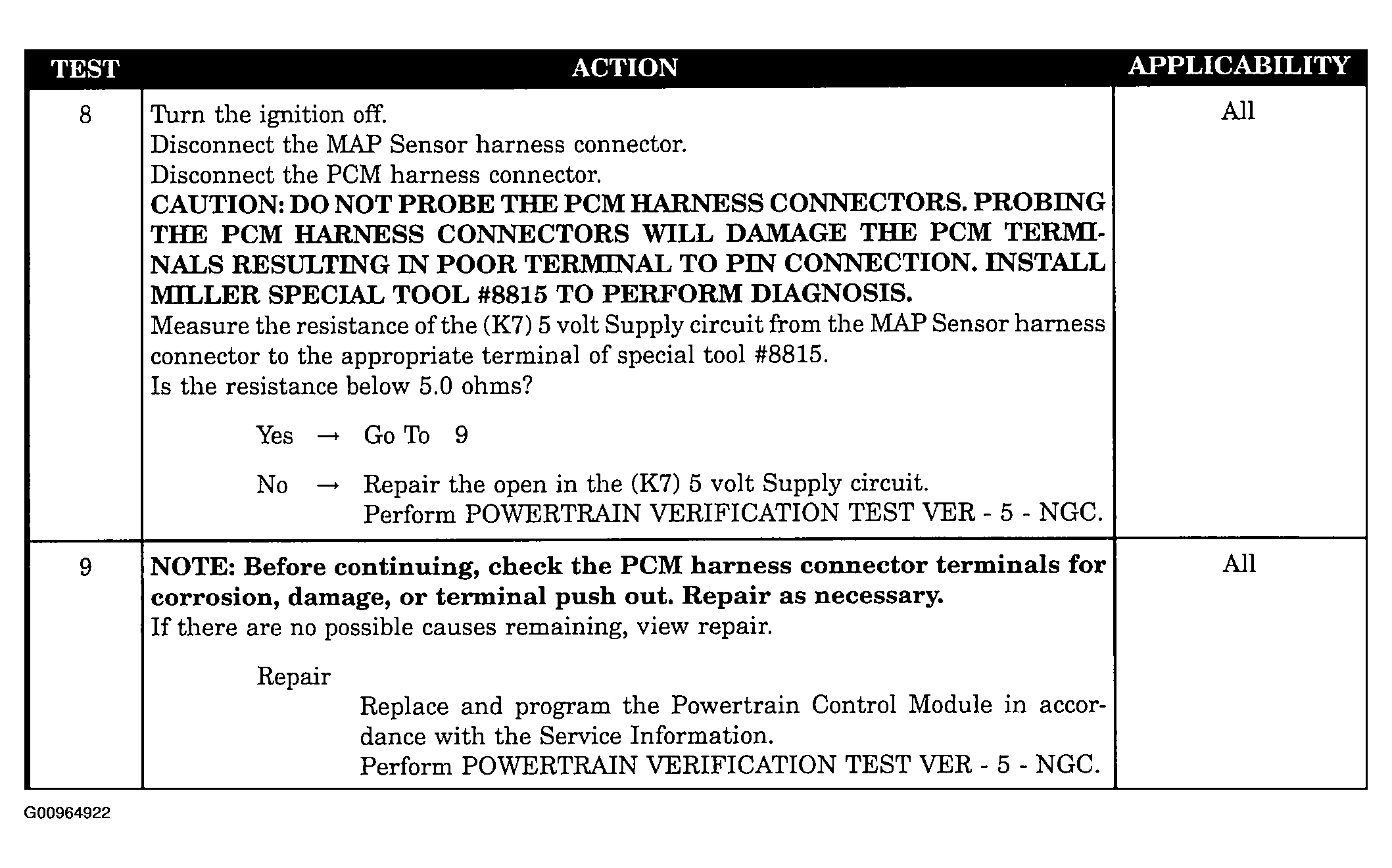

Fig 3: Testing: MAP Sensor Low (3 Of 3)
G00964922Courtesy of DAIMLERCHRYSLER CORP.
