Component Locations: Fuses

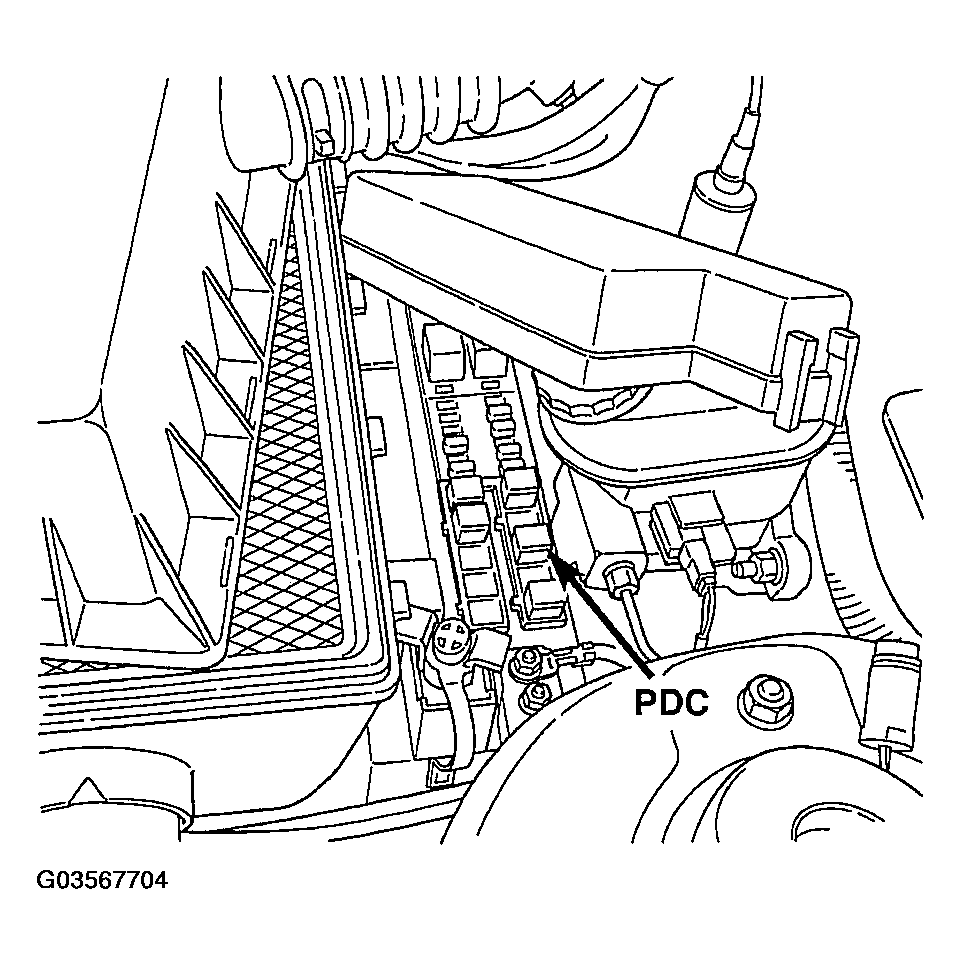

Fig 1: Identifying Fuse Locations At Power Distribution Center (PDC)
G03567704Courtesy of DAIMLERCHRYSLER CORP.

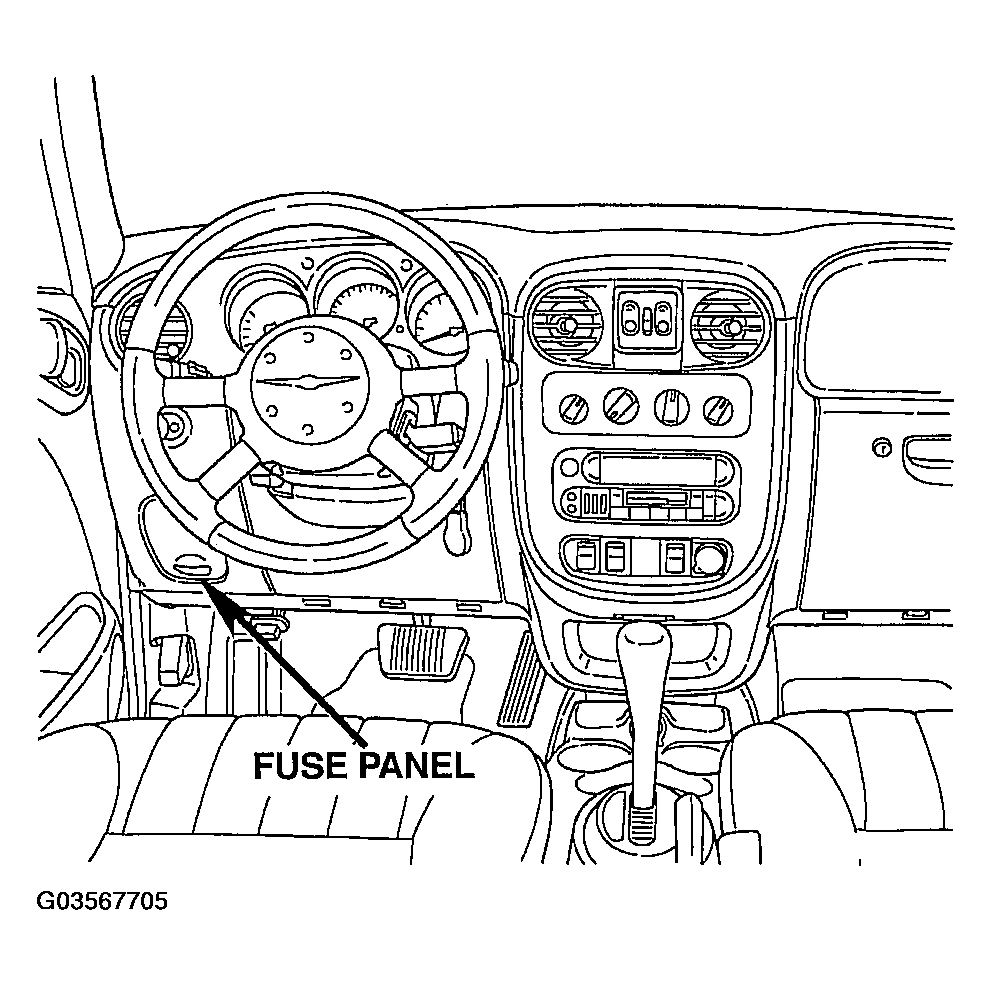

Fig 2: Identifying Fuse Locations At Fuse Panel
G03567705Courtesy of DAIMLERCHRYSLER CORP.
