Satellite Digital Audio Receiver System (SDARS) Equipped With Hands Free Module (HFM)

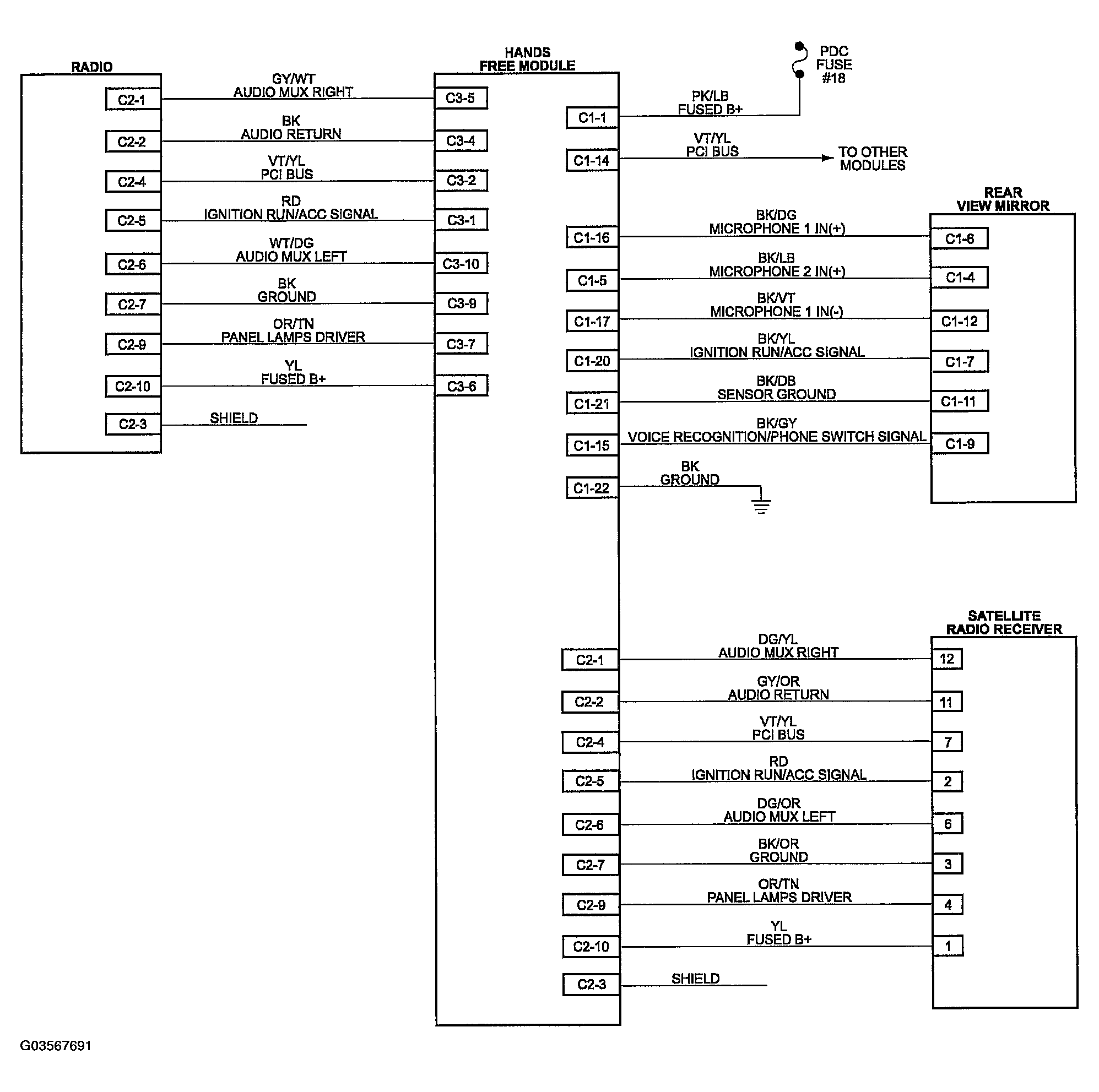

Fig 1: View Of Satellite Digital Audio Receiver System Schematic Diagram (SDARS) Equipped With (HFM)
G03567691Courtesy of DAIMLERCHRYSLER CORP.
