Powertrain Control Module C2 (NGC) - 38 Way

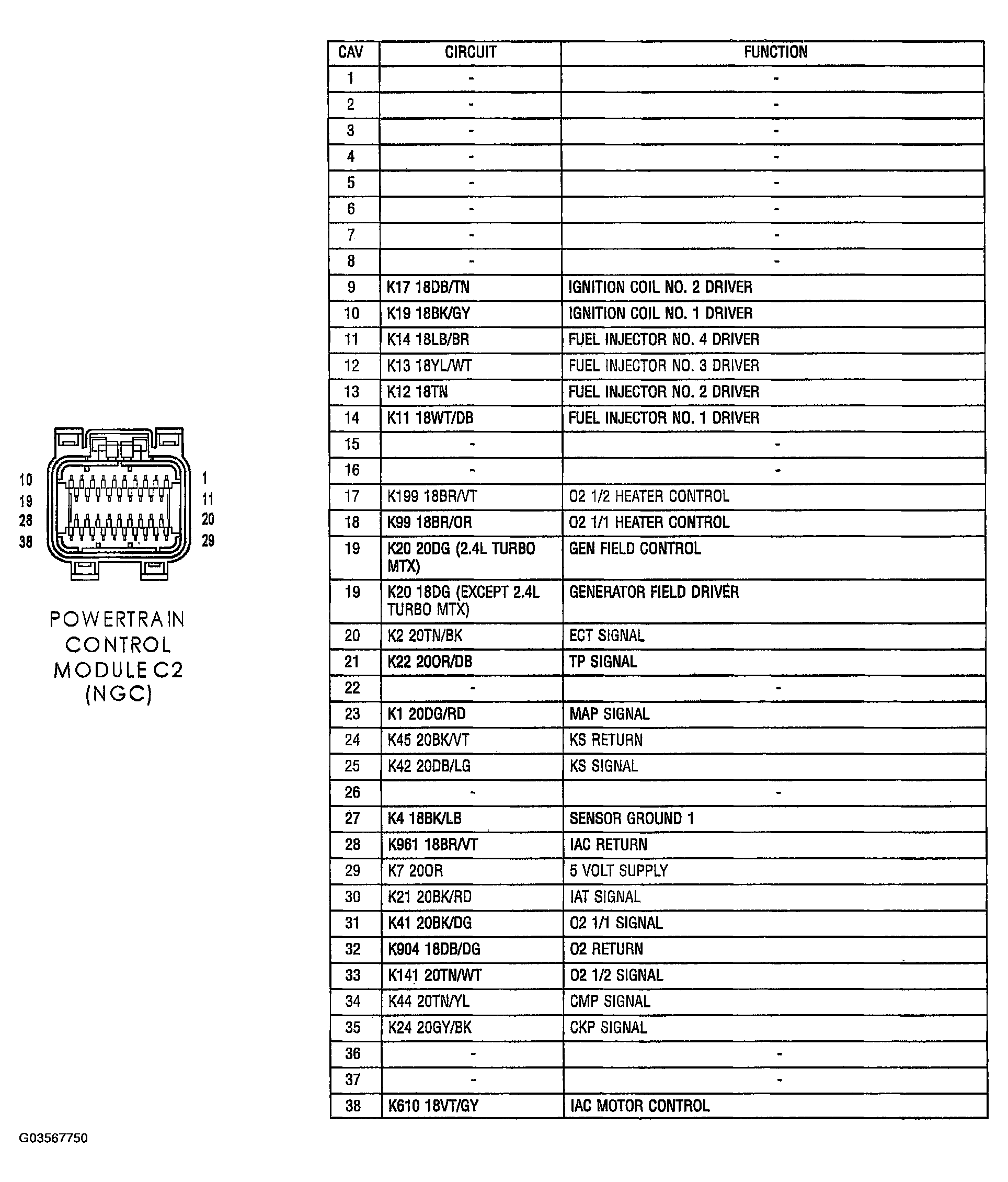

Fig 1: Identifying Powertrain Control Module C2 (NGC) - 38 Way

G03567750

Courtesy of DAIMLERCHRYSLER CORP.
