Specifications - Steering Column Fastener Torque

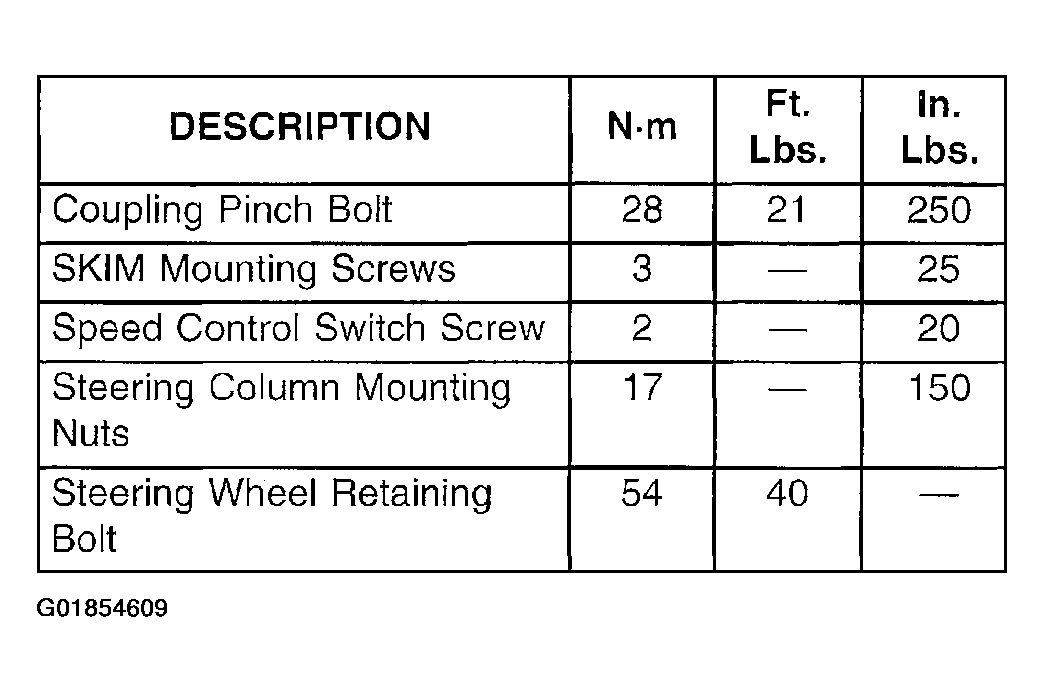

Fig 1: Steering Column Fastener Torque Specifications

G01854609

Courtesy of DAIMLERCHRYSLER CORP.
