Speed Control Servo (2.0L/2.4L) Connector End View

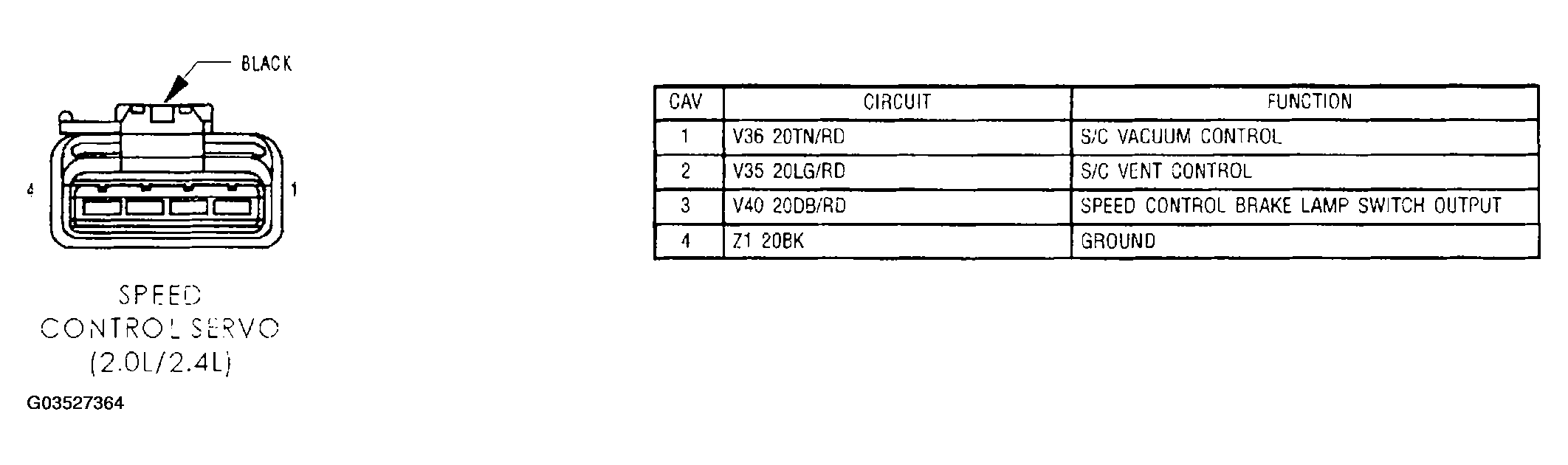

Fig 1: Speed Control Servo (2.0L/2.4L) Connector End View

G03527364

Courtesy of DAIMLERCHRYSLER CORP.
