Brake Lamp Switch (Diesel) Connector End View

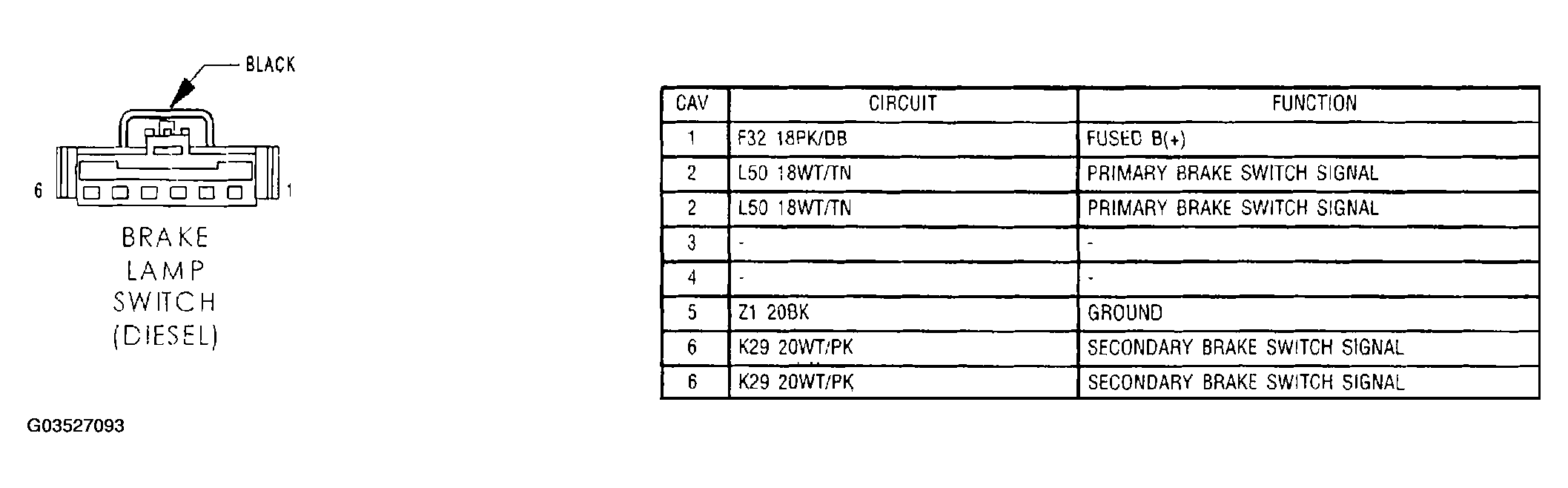

Fig 1: Brake Lamp Switch (Diesel) Connector End View

G03527093

Courtesy of DAIMLERCHRYSLER CORP.
