Accelerator Pedal Position Sensor (1.6L/Diesel) Connector End View

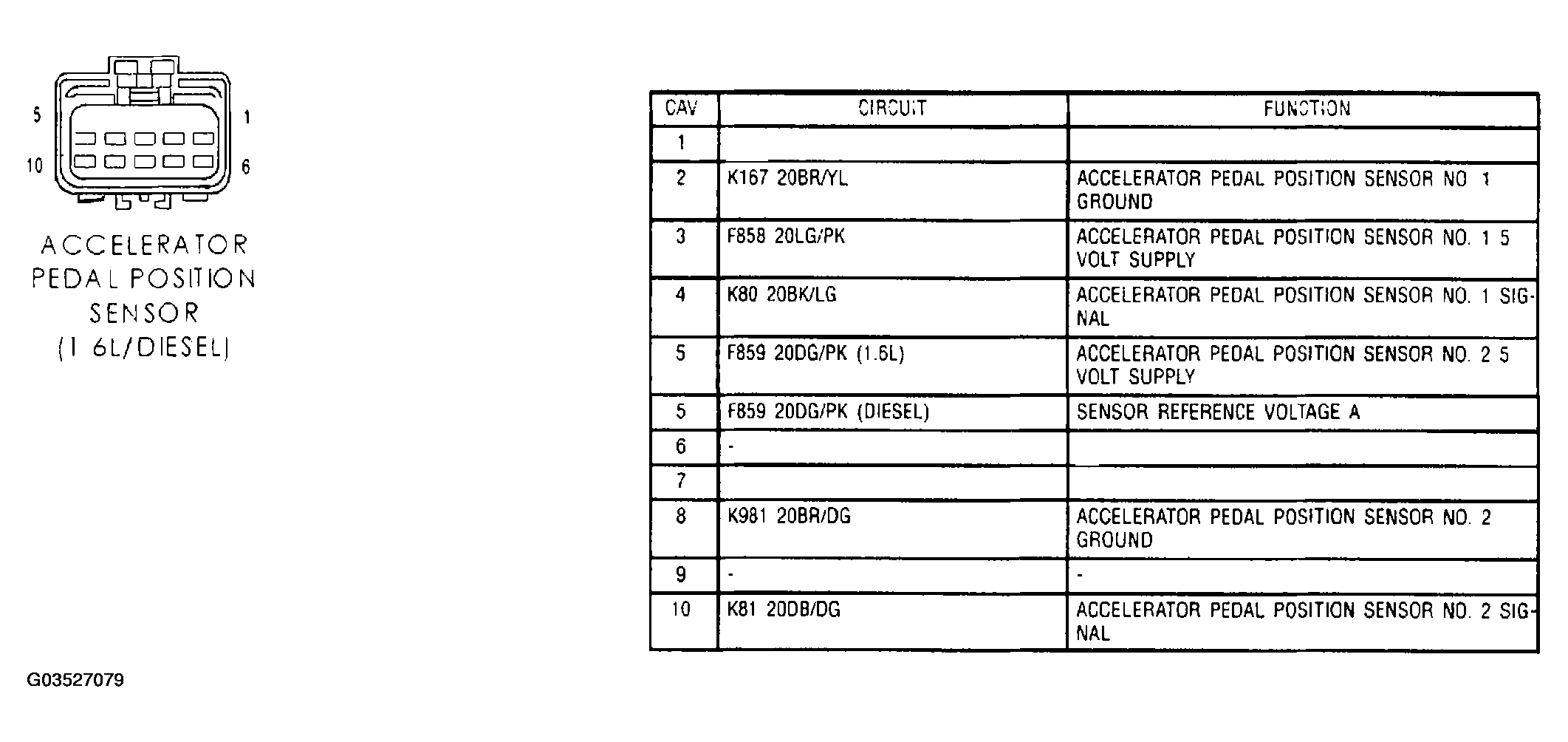

Fig 1: Accelerator Pedal Position Sensor (1.6L/Diesel) Connector End View

G03527079

Courtesy of DAIMLERCHRYSLER CORP.
