Traction Control Switch Connector End View

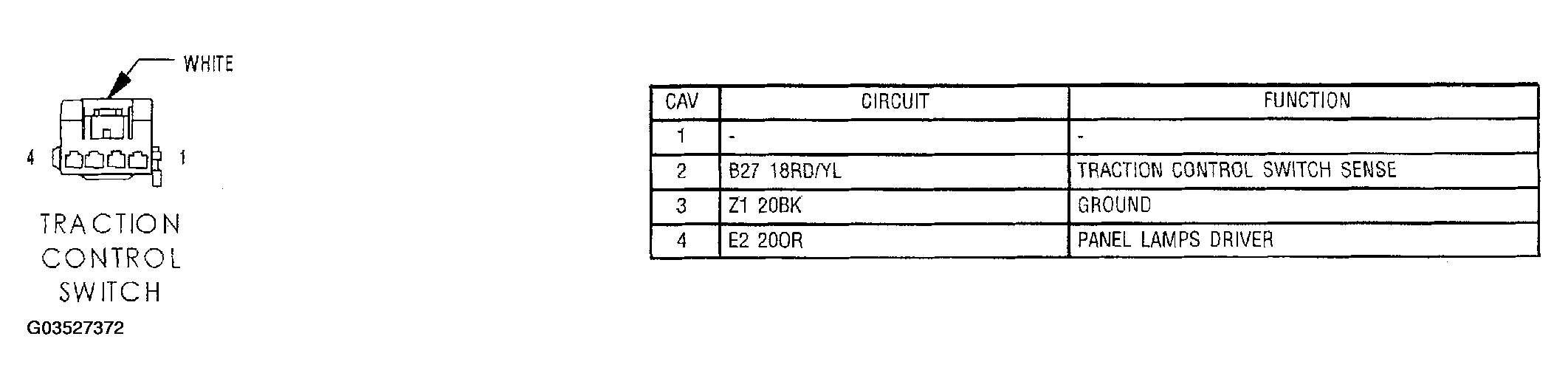

Fig 1: Traction Control Switch Connector End View

G03527372

Courtesy of DAIMLERCHRYSLER CORP.
