Power Seat Switch Connector End View

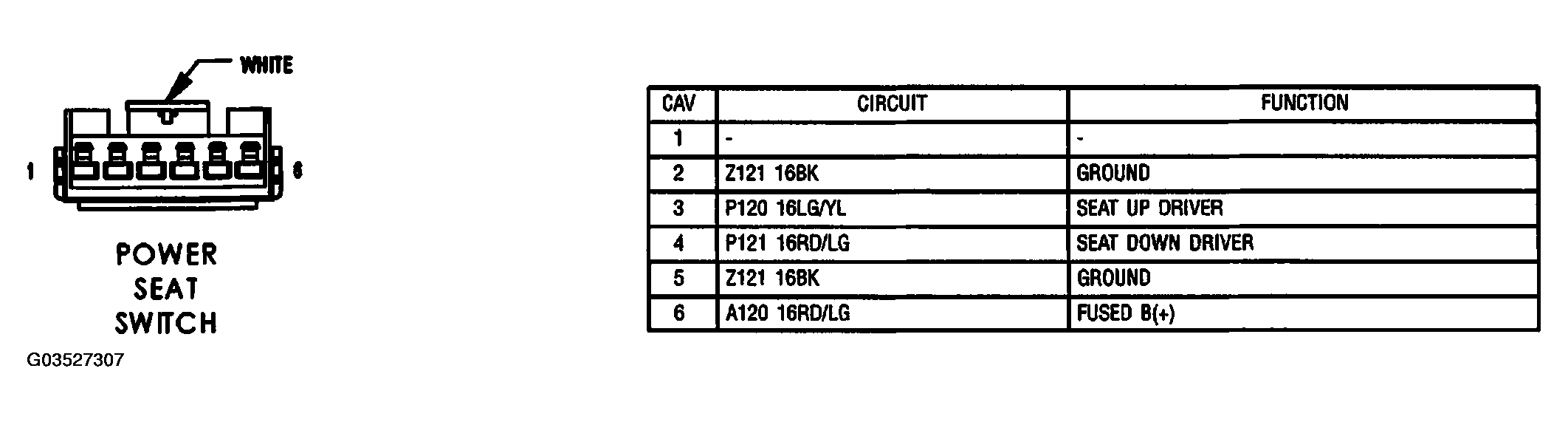

Fig 1: Power Seat Switch Connector End View

G03527307

Courtesy of DAIMLERCHRYSLER CORP.
